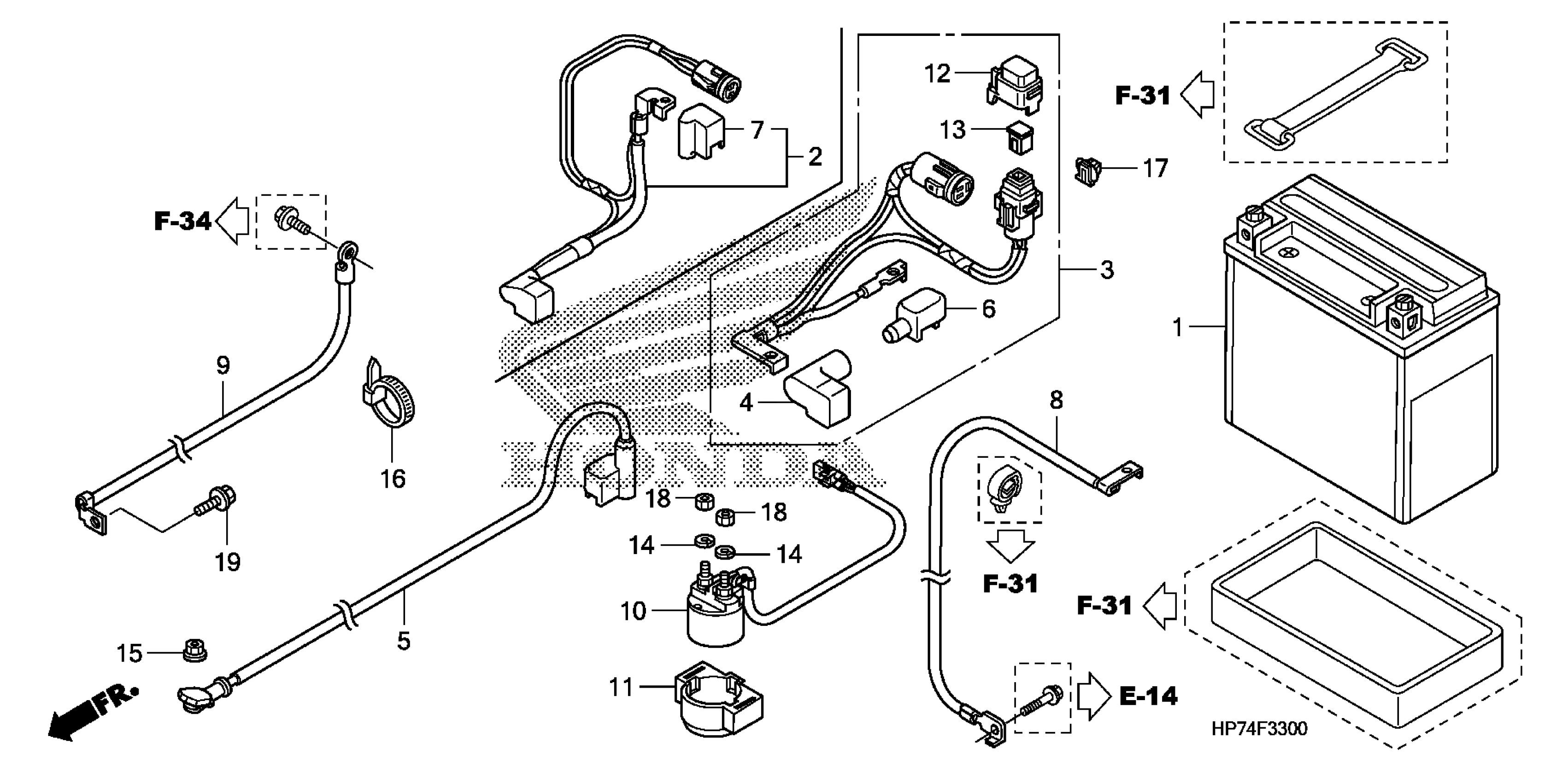

Honda TRX420FPAA (10) FOURTRAX RANCHER AT, USA, VIN# 1HFTE372-A4100001 TO 1HFTE372-A4149999 BATTERY Diagram

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

BATTERY (YTX14-BS) (YUASA) (MSDS)

31500-HC4-726AH

Unavailable

CABLE, RELAY BATTERY

32401-HP7-A30

$46.39

COVER, BATTERY TERMINAL

32404-HP0-B00

$2.80

CABLE, STARTER MOTOR

32405-HP5-600

$17.51

COVER A, TERMINAL

32412-HW1-670

$2.59

CABLE, BATTERY GROUND

32601-HP5-600

$10.01

CABLE, FRAME GROUND

32603-HP5-600

$5.57

SWITCH ASSY., STARTER MAGNETIC

35850-HP5-600

$54.74

RUBBER, MAGNETIC SHOCK (Honda Code 8611063)

35856-HP5-600

$4.44

COVER ASSY., FUSE (40A)

38205-HP0-B11

$4.67

FUSE, BLOCK (40A)

38211-SNA-A21

$4.45

WASHER, SPRING (6MM) (Honda Code 1310549)

90052-ZA0-800

$1.49

NUT-WASHER (6MM)

90071-MB0-000

$1.97

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.90

NUT, HEX. (6MM)

94002-06390-0S

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
