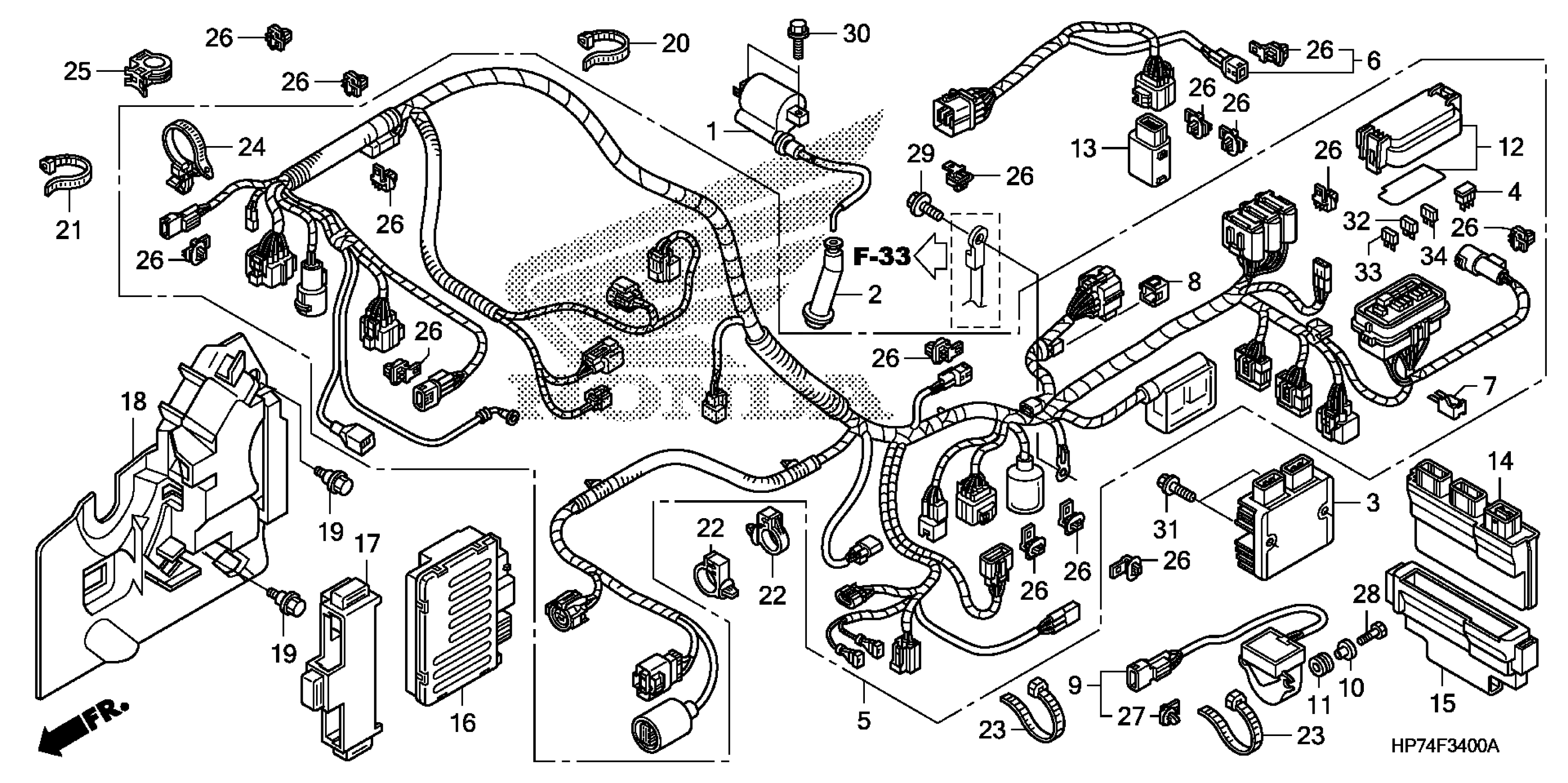

Honda TRX420FPAA (09) FOURTRAX RANCHER AT, USA, VIN# 1HFTE372-94000001 TO 1HFTE372-94099999 WIRE HARNESS Diagram

COIL, IGNITION

30510-HP5-601

$65.91

CAP ASSY., NOISE SUPPRESSOR

30700-MBN-671

$25.53

RECTIFIER ASSY., REGULATOR

31600-HP5-601

$79.01

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

WIRE HARNESS This part replaces 32100-HP7-A30.

32100-HP7-A31

$1,700.69

WIRE HARNESS

32100-HP7-A31

$1,700.69

SUB-HARNESS, RR. FENDER

32115-HP5-600

$61.67

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$13.70

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.18

SENSOR, BANK ANGLE This part replaces 35161-HP7-A01.

35161-HP7-A02

$109.34

SENSOR, BANK ANGLE

35161-HP7-A02

$109.34

COLLAR

35162-MN5-003

$6.93

GROMMET

35163-MN5-003

$3.00

COVER SET, FUSE

38230-HP7-A00

$2.22

RELAY, WATERPROOF (15AX2) (Honda Code 8557167)

38580-HP5-601

$42.59

PGM-FI UNIT

38770-HP7-A04

Unavailable

CUSHION, PGM-FI UNIT

38771-HP5-600

$11.29

EPS CONTROL UNIT

39980-HP7-A31

$526.31

CUSHION, EPS UNIT

39981-HN2-B70

$5.50

PROTECTOR, ECU HEAT

39982-HP7-A30

$18.46

BOLT, FLANGE (6MM)

90111-162-000

$2.66

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

BAND, WIRE HARNESS

90651-MA6-720

$3.63

CLAMP, HARNESS

90652-HC4-003

$5.68

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

STRAP, CABLE (105MM) *NH1* (BLACK)

90672-SB2-003

$5.31

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

CLIP, CONNECTOR

91565-S3Y-003

$6.38

BOLT, HEX. (4X22)

92101-04022-0A

$0.84

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.50

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.63

FUSE, MINI (10A)

98200-41000

$1.22

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.12

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
