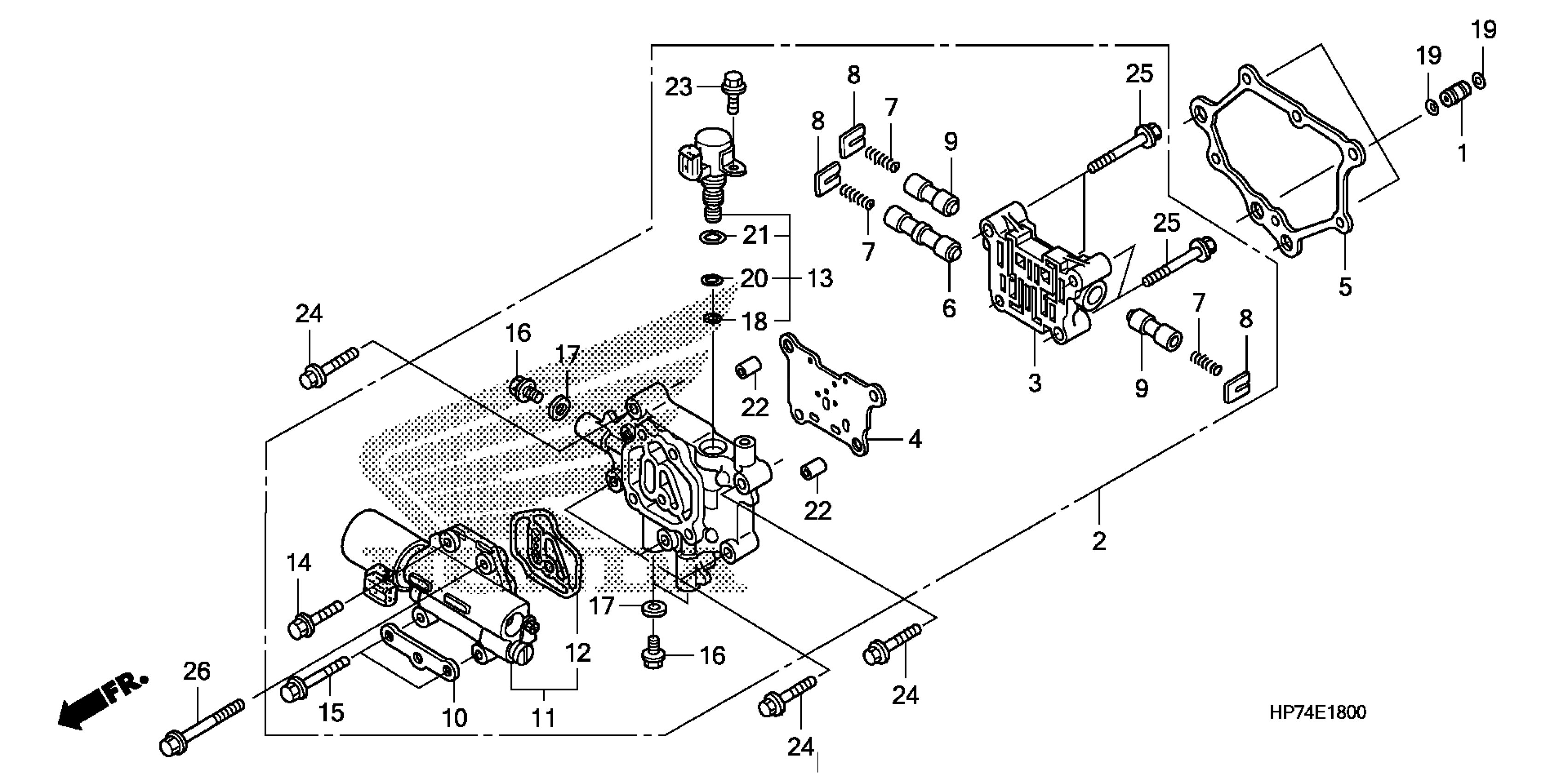

Honda TRX420FPAA (09) FOURTRAX RANCHER AT, USA, VIN# 1HFTE372-94000001 TO 1HFTE372-94099999 MAIN VALVE BODY Diagram

#

Description
Price

1

PIN, OIL GUIDE (10MM) This part replaces 11334-HN8-000.

11334-HN8-010

$9.13

1

PIN, OIL GUIDE (10MM)

11334-HN8-010

$9.13

2

BODY ASSY., MAIN VALVE

27010-HP7-305

Unavailable

2

BODY ASSY., MAIN VALVE This part replaces 27100-HP7-A00.

27010-HP7-305

Unavailable

3

BODY, CONTROL MAIN

27102-HP7-A00

$57.75

4

PLATE, VALVE BODY

27121-HP7-A00

$3.90

5

GASKET, OIL CONTROL COVER

27135-HP7-A01

$10.69

6

VALVE, SHIFT

27211-HP7-A00

$6.02

7

SPRING, VALVE

27231-HP7-A00

$1.25

8

SEAT, VALVE SPRING

27263-PX3-000

$4.13

9

VALVE, ORIFICE CONTROL

27411-HP7-A00

$5.56

10

STAY A, CLIP

32150-HP7-A00

$2.03

11

SOLENOID ASSY., LINEAR

38610-HN8-003

$239.19

12

GASKET, BASE

38615-HN8-003

$20.38

13

SOLENOID ASSY. B

38630-HN8-003

$87.10

14

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.80

15

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.89

16

BOLT, SEALING (8MM)

90024-612-000

$4.54

17

WASHER (8MM)

90471-580-000

$2.80

18

O-RING (7.6X1.9) (KEIHIN)

91301-P6H-003

$2.80

19

O-RING (7X1.7)

91301-473-003

$2.51

20

O-RING (9.6X1.9) This part replaces 91302-P6H-003.

91302-P7W-A00

$2.66

20

O-RING (9.6X1.9)

91302-P7W-A00

$2.66

21

O-RING (11.7X1.9) (KEIHIN)

91303-P6H-003

$2.80

22

PIN A, DOWEL (8X10)

94301-08100

$2.62

23

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

24

BOLT, FLANGE (6X32) (Honda Code 2105856)

95701-06032-00

$1.74

25

BOLT, FLANGE (6X35)

95701-06035-00

$1.74

26

BOLT, FLANGE (6X55)

95701-06055-00

$2.59
