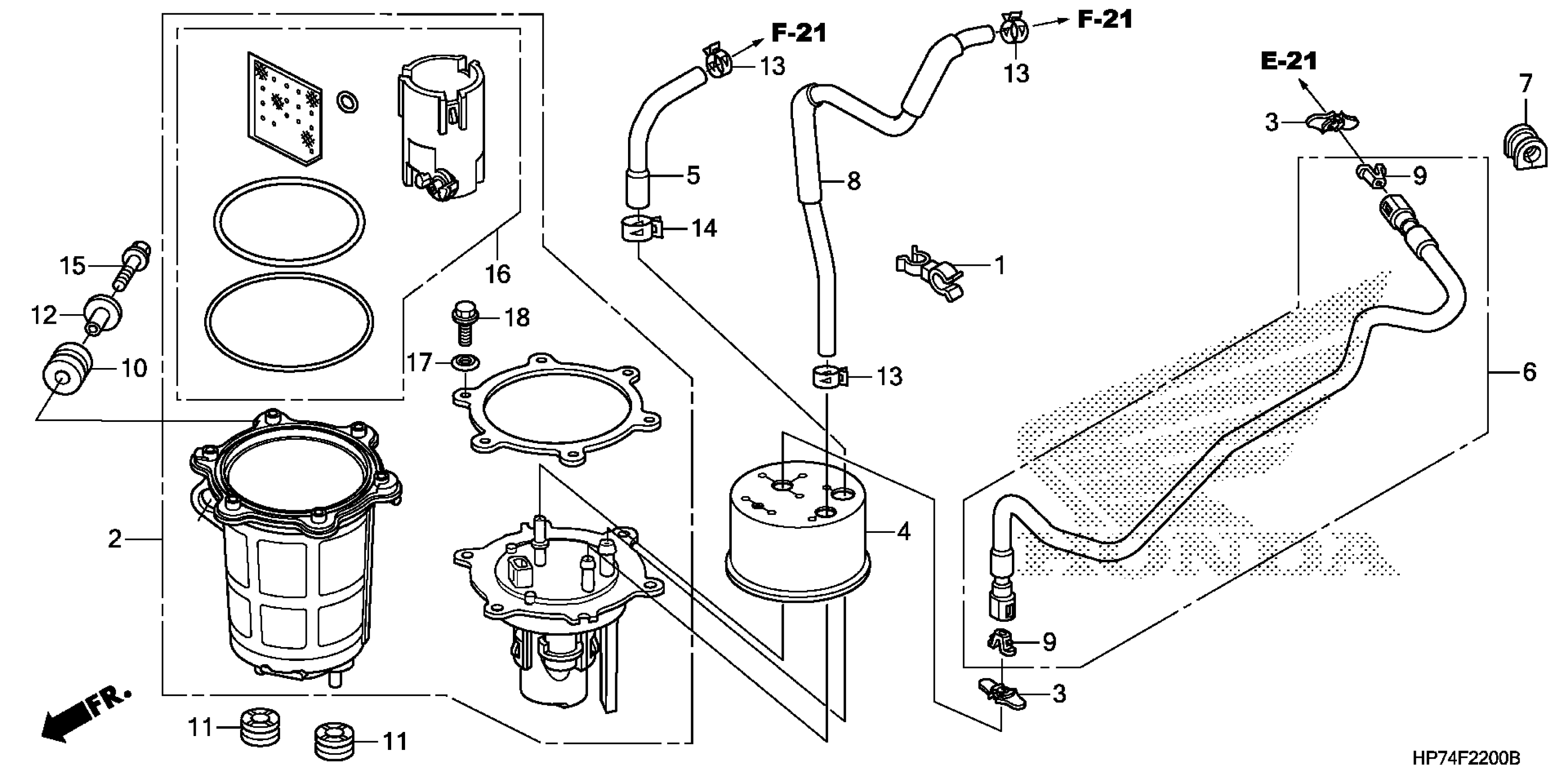

Honda TRX420FPAA (09) FOURTRAX RANCHER AT, USA, VIN# 1HFTE372-94000001 TO 1HFTE372-94099999 FUEL PUMP Diagram

CLAMP, PIPE (15.5X13)

15617-ZN2-000

$2.78

PUMP ASSY., FUEL (MSDS)

16700-HP5-602

$187.06

RUBBER, FUEL JOINT

16719-HN8-A61

$2.33

COVER, FUEL PUMP

16720-HN8-A60

$8.98

TUBE, FUEL

16955-HP5-A10

$11.70

HOSE, FUEL FEED

17570-HP5-A11

$70.30

RUBBER, FUEL FEED HOSE

17579-HP5-600

$1.93

TUBE, VAPOR

17683-HP5-A10

$18.67

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.40

RUBBER, MUFFLER

18334-KA3-830

$3.89

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

CLAMP, TUBE (12.0)

90651-HN6-A51

$2.07

CLAMP, TUBE (D13)

95002-41300-05

$1.49

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17) This part replaces 16706-HN8-A62.

16706-HN8-305

$43.16

FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)

16706-HN8-305

$43.16

WASHER, CONICAL SPRING

90501-HN8-A60

$1.49

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
