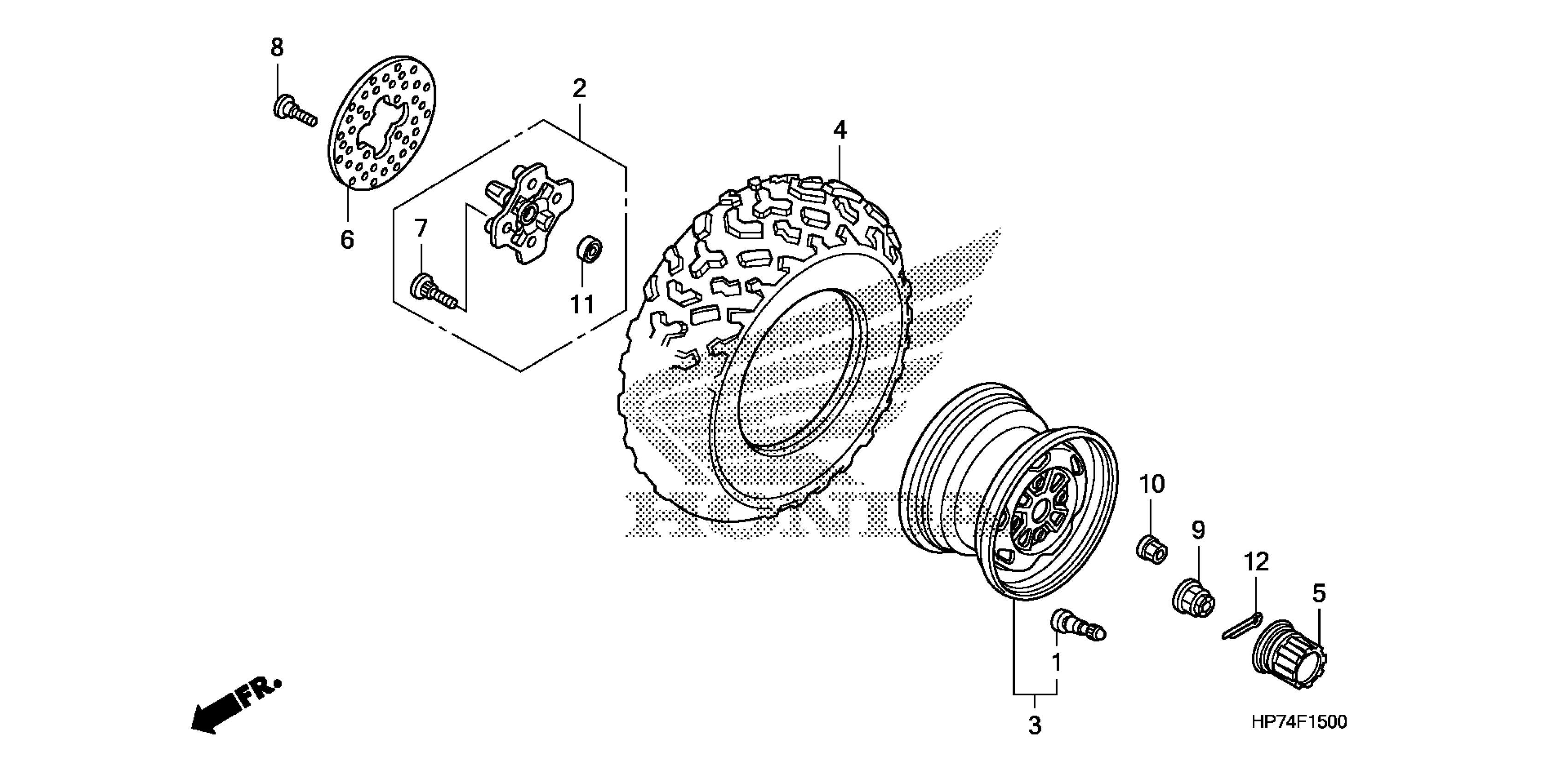

Honda TRX420FPAA (09) FOURTRAX RANCHER AT, USA, VIN# 1HFTE372-94000001 TO 1HFTE372-94099999 FRONT WHEEL Diagram

VALVE, RIM (TR412)

42753-HF1-670

$4.98

HUB SUB-ASSY., FR.

44615-HP7-A00

$317.07

WHEEL SUB-ASSY., FR. (SILVER)

44650-HP5-L00ZA

Unavailable

WHEEL SUB-ASSY., FR. (SILVER) This part replaces 44650-HP7-A00.

44650-HP5-L00ZA

Unavailable

TIRE (24X8-12) (MAXXIS) This part replaces 44711-HP5-601.

44711-HR3-WH1

$89.12

CAP, WHEEL CENTER

44732-HC4-010

$20.76

DISK, FR. BRAKE

45251-HP5-601

$70.07

BOLT, WHEEL (10X30)

90103-HB3-300

$6.15

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.93

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.93

NUT, CASTLE (16MM) NUT, CASTLE (18MM)

90305-HM5-A80

$4.75

NUT, WHEEL

90314-HM5-A10

$3.14

DUST SEAL (19X22.5X10.5) (ARAI)

91263-HA7-771

$6.15

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.01

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.01

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.01

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.01
