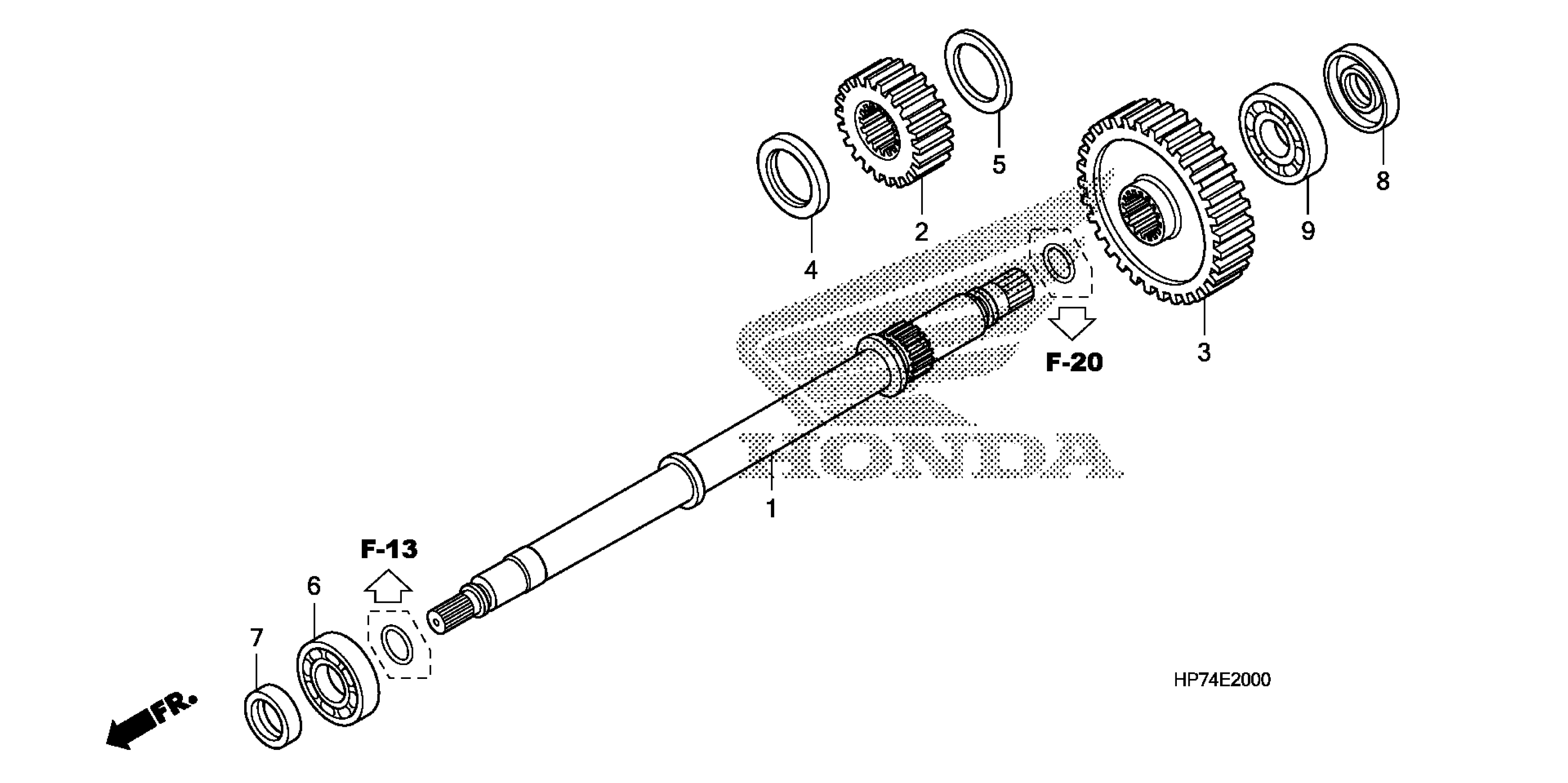

Honda TRX420FPAA (09) FOURTRAX RANCHER AT, USA, VIN# 1HFTE372-94000001 TO 1HFTE372-94099999 FINAL SHAFT Diagram

SHAFT, FINAL

23611-HP7-A00

$82.98

GEAR, FINAL DRIVE (25T)

23621-HP7-A00

$35.62

GEAR, FINAL DRIVEN (37T)

23631-HP7-A00

$53.49

COLLAR, DISTANCE (25MM)

75146-750-000

$6.56

WASHER C, THRUST (25MM)

90459-357-000

$3.60

BEARING, RADIAL BALL (22X47X14)

91006-HP5-601

$11.84

OIL SEAL (22X35X7)

91202-HP5-601

$7.43

OIL SEAL (25X45X7) (ARAI)

91204-MG3-003

$9.80

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63
