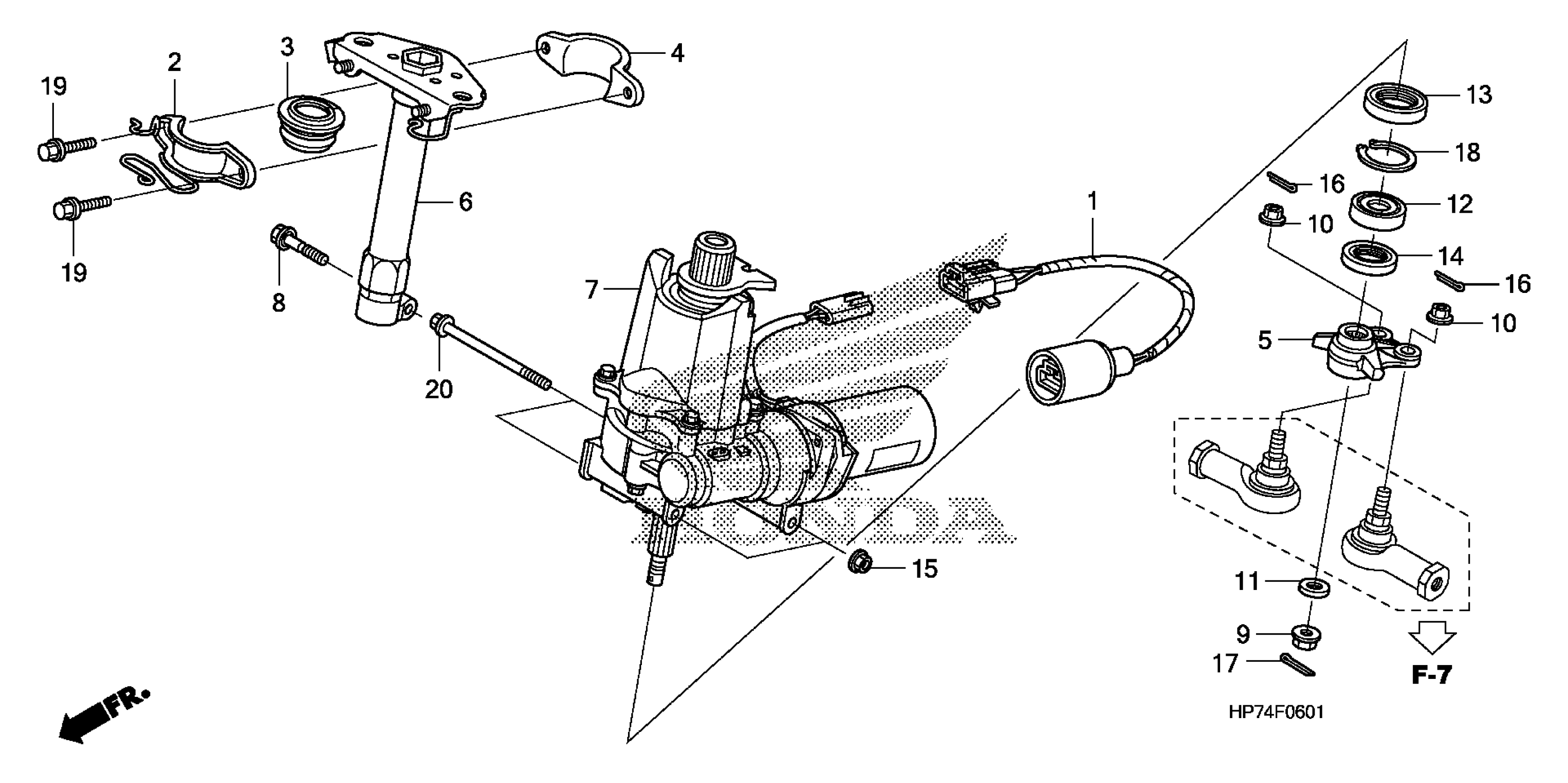

Honda TRX420FPA2A (09) FOURTRAX RANCHER AT, USA, VIN# 1HFTE375-94000001 TO 1HFTE375-94099999 STEERING SHAFT (TRX420FPA) Diagram

SUB-HARNESS, EPS

32200-HP7-A30

$13.59

HOLDER, STEERING SHAFT

53220-HP5-600

$18.59

BUSH, STEERING

53221-HP0-B01

$16.70

HOLDER, STEERING SHAFT

53223-HP0-A00

$24.33

ARM, STEERING

53235-HP7-A30

Unavailable

SHAFT, STEERING

53310-HP7-A30

$75.23

EPS UNIT

53600-HP7-A30

$1,403.38

BOLT, FLANGE (10X39)

90103-HP7-A30

$3.47

NUT, SELF-LOCK (14MM)

90213-S73-003

$5.15

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

WASHER, THRUST (14MM)

90402-HA0-000

$3.76

BEARING, SELF-ALIGNING BALL

91051-HP0-B01

$37.07

DUST SEAL (38X54X7)

91251-HP0-B02

$7.70

DUST SEAL (27X40X5)

91252-HP0-B01

$5.83

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

CIRCLIP (INNER) (47MM) (NOT AVAILABLE)

94521-47000

$2.39

BOLT, FLANGE (8X50)

95701-08050-07

$1.49

BOLT, FLANGE (8X100) (SOURCE: VINTAGE PARTS INC.)

95801-08100-00

Unavailable
