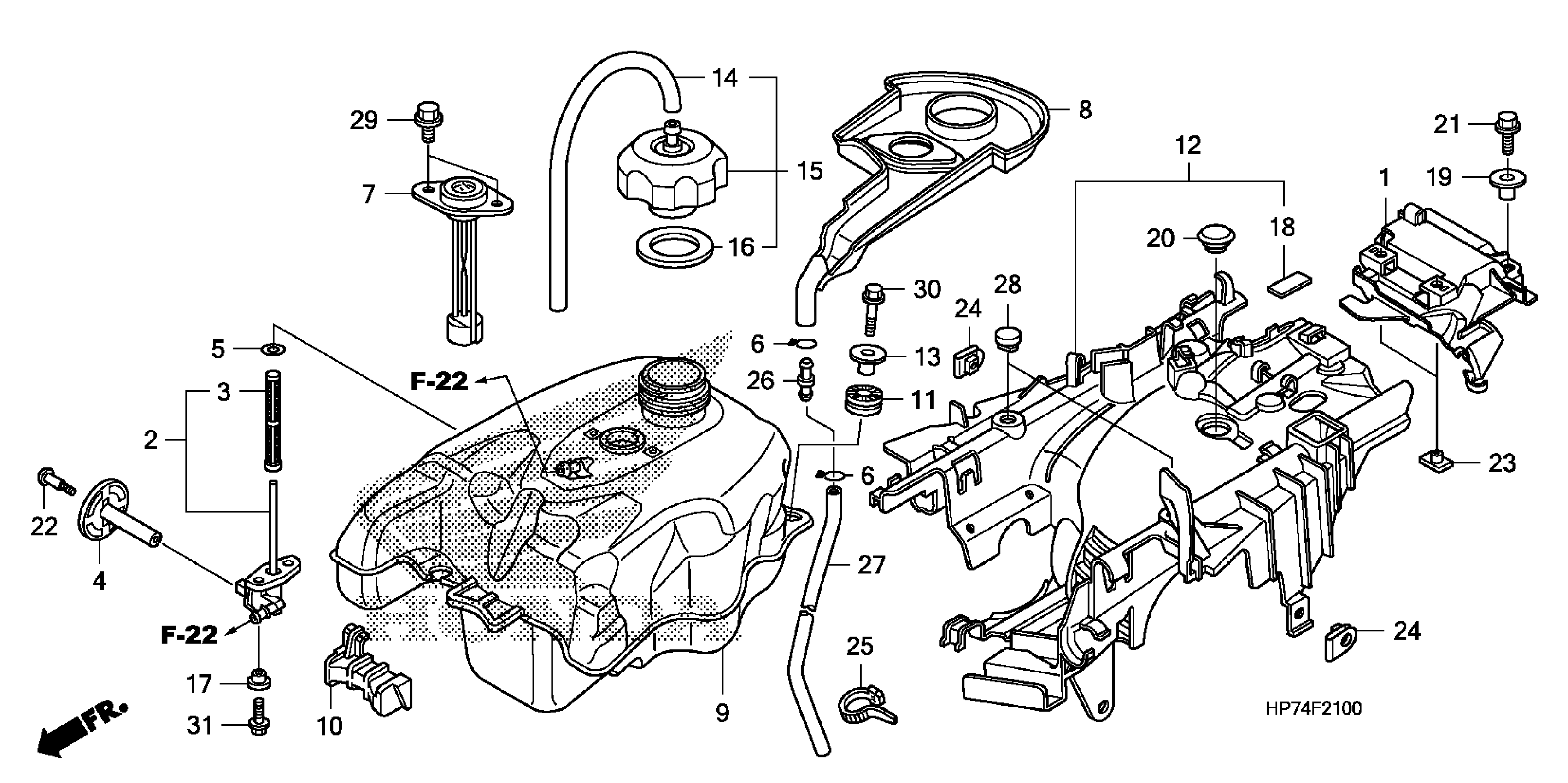

Honda TRX420FPA2A (09) FOURTRAX RANCHER AT, USA, VIN# 1HFTE375-94000001 TO 1HFTE375-94099999 FUEL TANK Diagram

#

Description
Price

1

COVER, THROTTLE BODY

16721-HP5-600

$16.71

2

PETCOCK ASSY.

16950-HP5-601

$80.74

3

SCREEN SET, FUEL STRAINER

16952-HP5-601

$25.92

4

LEVER, PETCOCK

16963-HP5-600

$21.72

5

O-RING (11.8X3.55)

16997-467-000

$2.01

6

CLIP, OIL DRAIN TUBE

17316-611-000

$8.28

7

METER ASSY., FUEL

17504-HP5-601

$60.07

8

TRAY, FUEL TANK

17507-HP7-A30

$9.54

9

TANK, FUEL

17510-HP5-A10

Unavailable

10

RUBBER, FR. FUEL TANK MOUNTING

17511-HP5-600

$7.93

11

RUBBER, RR. FUEL TANK MOUNTING

17512-HP5-600

$4.07

12

PROTECTOR, TANK HEAT (LOWER)

17515-HP7-A30

$31.49

13

COLLAR, TANK SET

17517-HP5-600

$3.84

14

TUBE, FUEL CAP BREATHER

17521-429-000

$6.49

15

CAP ASSY., FUEL TANK

17620-HP5-600

Unavailable

16

GASKET, FUEL CAP (Honda Code 4067716)

17624-HF7-000

$7.28

17

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

18

RUBBER, RADIATOR RESERVE

19121-HP1-600

$1.75

19

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.17

20

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.15

21

BOLT, FLANGE (5X16)

90007-P6K-000

$1.94

22

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.33

23

NUT, SPECIAL (6X7)

90303-HA0-680

$3.57

24

NUT, AIR SPOILER CLIP

90305-SH3-000

$6.02

24

NUT, AIR SPOILER CLIP This part replaces 90323-SE0-000.

90305-SH3-000

$6.02

24

NUT, AIR SPOILER CLIP This part replaces 90323-SE1-000.

90305-SH3-000

$6.02

25

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

26

JOINT, TUBE

91463-393-780

$1.64

27

BULK HOSE, VACUUM (12X1000) (Honda Code 4918082) (12X270)

95005-12001-50M

Unavailable

28

RUBBER C, STAND STOPPER

95011-63000

$3.64

29

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

30

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

31

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
