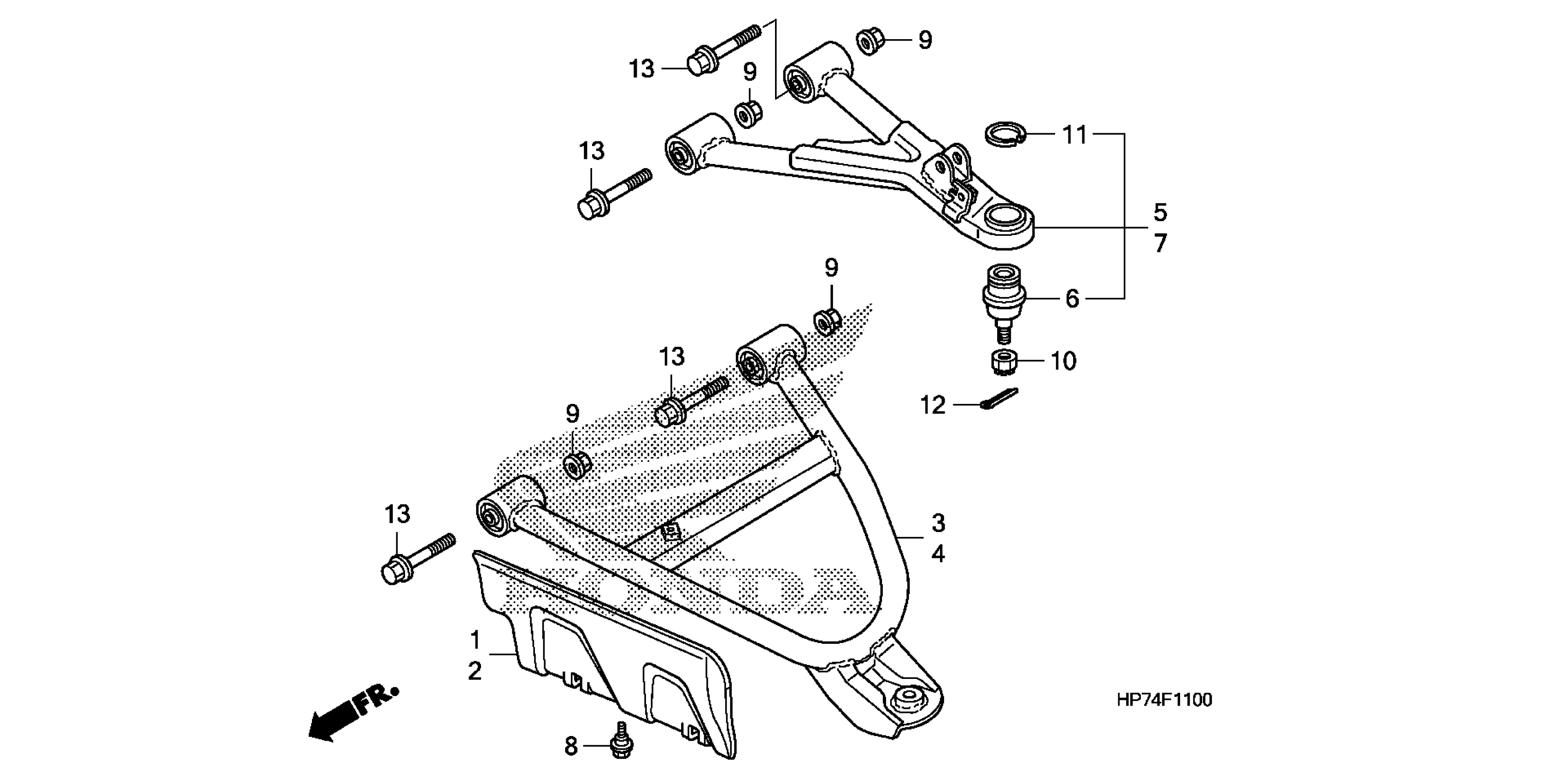

Honda TRX420FPA2A (09) FOURTRAX RANCHER AT, USA, VIN# 1HFTE375-94000001 TO 1HFTE375-94099999 FRONT ARM Diagram

#

Description

Price

1

GUARD, R. FR. INBOARD

51315-HP5-600

$16.36

2

GUARD, L. FR. INBOARD

51325-HP5-600

$16.36

3

ARM ASSY., R. FR. (LOWER)

51350-HP5-600

$72.23

4

ARM ASSY., L. FR. (LOWER)

51360-HP5-600

$74.04

5

ARM ASSY., R. FR. (UPPER)

51370-HP7-A00

$130.48

6

JOINT A, ARM BALL

51375-HP5-601

$20.53

7

ARM ASSY., L. FR. (UPPER)

51380-HP7-A00

$133.76

8

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

9

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

10

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

11

CIRCLIP, SPECIAL (OUTER) (34MM)

90603-HP5-600

$3.74

12

PIN, SPLIT (3.0X18)

94201-30180

$1.49

13

BOLT, FLANGE (10X62) BOLT, FLANGE (10X65)

90151-HC5-000

$7.99

13

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
