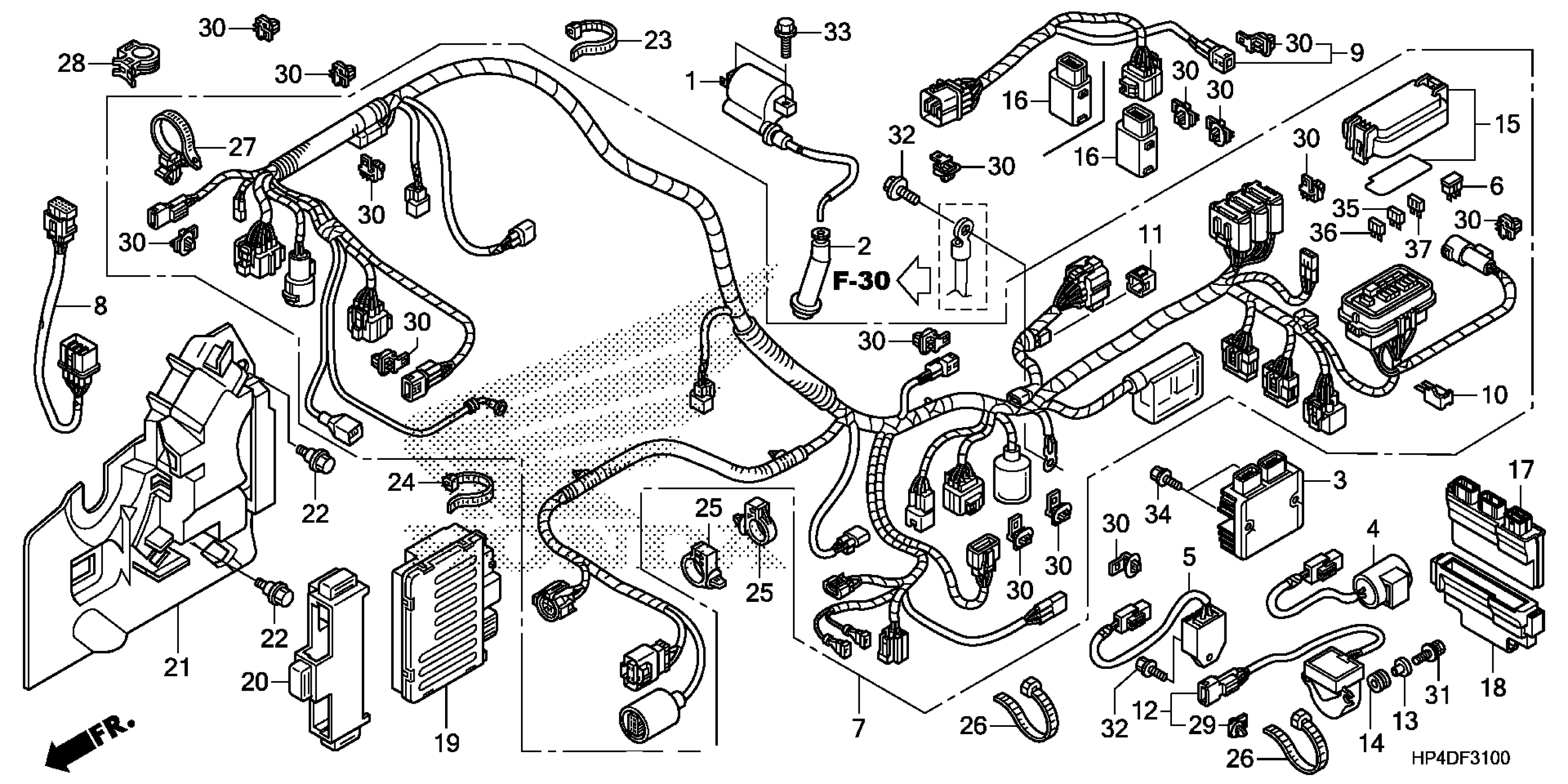

Honda TRX420FM2AC (13) RANCHER, USA, VIN# 1HFTE359-D4600001 WIRE HARNESS Diagram

COIL, IGNITION

30510-HP5-601

$71.78

CAP ASSY., NOISE SUPPRESSOR

30700-MBN-671

$27.80

RECTIFIER ASSY., REGULATOR

31600-HP5-601

$78.90

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-HP5-A41

$680.58

SUB-HARNESS, RR. FENDER

32115-HP5-600

$69.19

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

CAP, DUMMY (4P) (RED)

32606-GEV-761

$4.52

SENSOR, BANK ANGLE This part replaces 35161-HP7-A01.

35161-HP7-A02

$119.08

COLLAR

35162-MN5-003

$7.25

GROMMET

35163-MN5-003

$3.15

COVER SET, FUSE

38230-HP5-A40

$2.74

RELAY, WATERPROOF (15AX2)

38580-HP5-601

$46.40

PGM-FI UNIT

38770-HP5-A41

$280.15

CUSHION, PGM-FI UNIT

38771-HP5-600

$12.23

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.47

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

CLIP, CONNECTOR

91565-S3Y-003

$6.90

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

BOLT-WASHER (4X20)

93401-04020-08

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49

FUSE, MINI (30A)

98200-43000

$1.67
