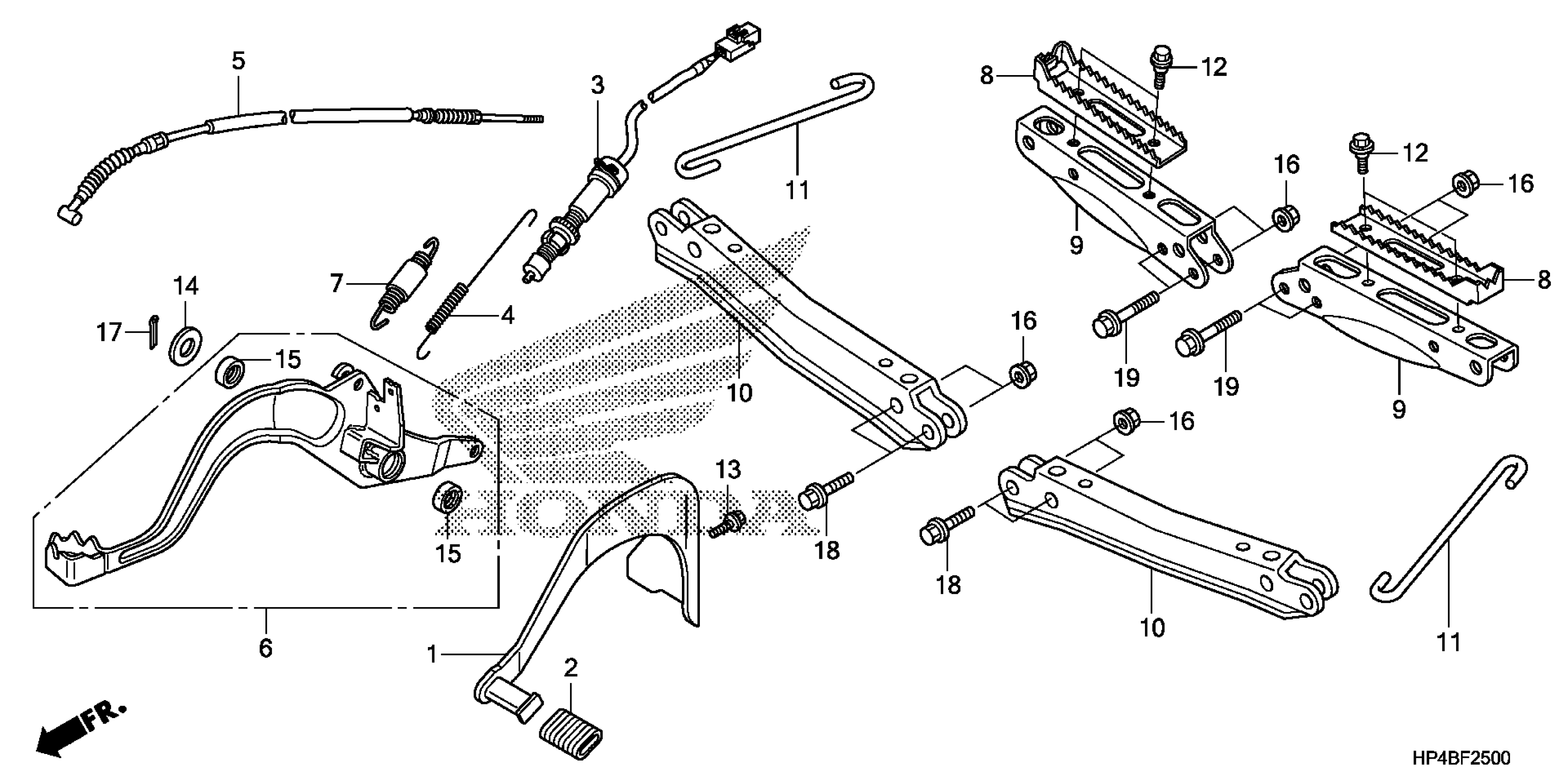

Honda TRX420FM2A (12) RANCHER, USA, VIN# 1HFTE359-C4500001 PEDAL + STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (COO) This part replaces 24700-HP5-000.

24700-HP5-305

$32.93

1

PEDAL, GEARSHIFT (COO)

24700-HP5-305

$32.93

2

RUBBER, CHANGE PEDAL

24781-371-000

$4.89

3

SWITCH ASSY., RR. STOP

35350-HP7-A01

$49.34

4

SPRING, STOP SWITCH

35357-HP5-600

$2.87

5

CABLE, FOOT BRAKE

43470-HP5-601

$8.60

6

PEDAL ASSY., BRAKE

46510-HP5-600

$157.25

7

SPRING ASSY., RR. BRAKE PEDAL

46513-HP5-600

$7.89

8

STEP

50610-HP5-000

$23.90

9

BRACKET, STEP

50611-HN8-000

$26.69

10

BRACKET, CENTER SPLASH GUARD

50613-HP5-600

$25.94

11

STAY, CENTER SPLASH GUARD

61107-HP5-600

$2.54

12

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

13

BOLT, FLANGE (6X20)

90118-968-000

$4.04

14

WASHER (17.5MM)

90512-303-000

$1.63

15

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.52

15

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.52

16

NUT, FLANGE (8MM)

94050-08000

$0.87

17

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.96

17

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

17

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

17

PIN, SPLIT (3.0X45)

94201-30450

$0.96

18

BOLT, FLANGE (8X30)

95801-08030-00

$1.41

19

BOLT, FLANGE (8X45)

95801-08045-00

$1.62
