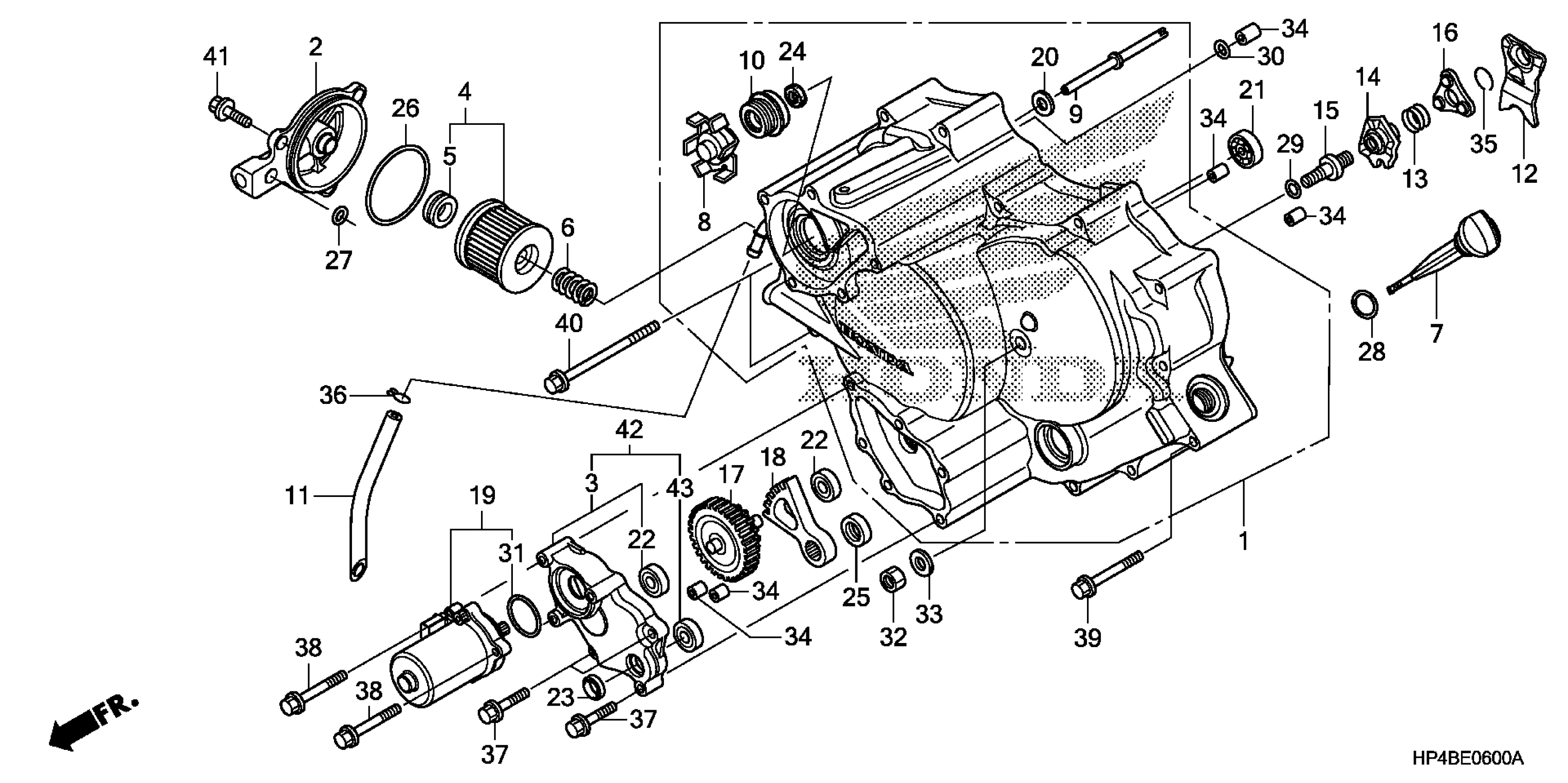

Honda TRX420FM2A (12) RANCHER, USA, VIN# 1HFTE359-C4500001 FRONT CRANKCASE COVER Diagram

#

Description
Price

1

COVER ASSY., FR. CRANKCASE

11300-HP5-L00

$188.98

2

COVER, OIL FILTER

11333-HR0-F00

$71.95

4

ELEMENT, OIL FILTER

15412-HM5-A10

$5.50

5

RUBBER, FILTER

15413-MC8-000

$3.35

6

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

7

DIPSTICK, OIL

15650-HP5-600

$11.41

8

IMPELLER, WATER PUMP

19215-MEG-300

$25.66

9

SHAFT, WATER PUMP

19216-HP5-600

$34.86

10

SEAL, MECHANICAL

19217-MAL-300

$53.03

11

HOSE, DRAIN

19507-HP5-600

$1.49

12

PLATE, CLUTCH CAM

22821-HP5-600

$17.05

13

SPRING, CAM PLATE SIDE

22825-HP5-600

$2.92

14

PLATE, CLUTCH LIFTER

22830-HP5-600

$18.02

15

BOLT, CLUTCH ADJUSTING

22841-HC4-000

$7.95

16

RETAINER, BALL

22860-HP5-600

$8.44

20

WASHER, THRUST (12X23X2)

90599-767-C10

$2.76

21

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$22.40

24

OIL SEAL (12X26X7) (ARAI)

91201-MV4-003

$5.14

26

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

27

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

28

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

29

O-RING (8.2X1.5)

91308-MC7-000

$2.31

30

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.18

32

NUT, HEX. (8MM)

94030-08000

$1.49

33

WASHER, PLAIN (8MM)

94102-08800

$1.49

34

PIN, DOWEL (8X14)

94301-08140

$2.25

35

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

36

CLIP, TUBE (B12.5)

95002-02130

$1.49

39

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

40

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

41

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
