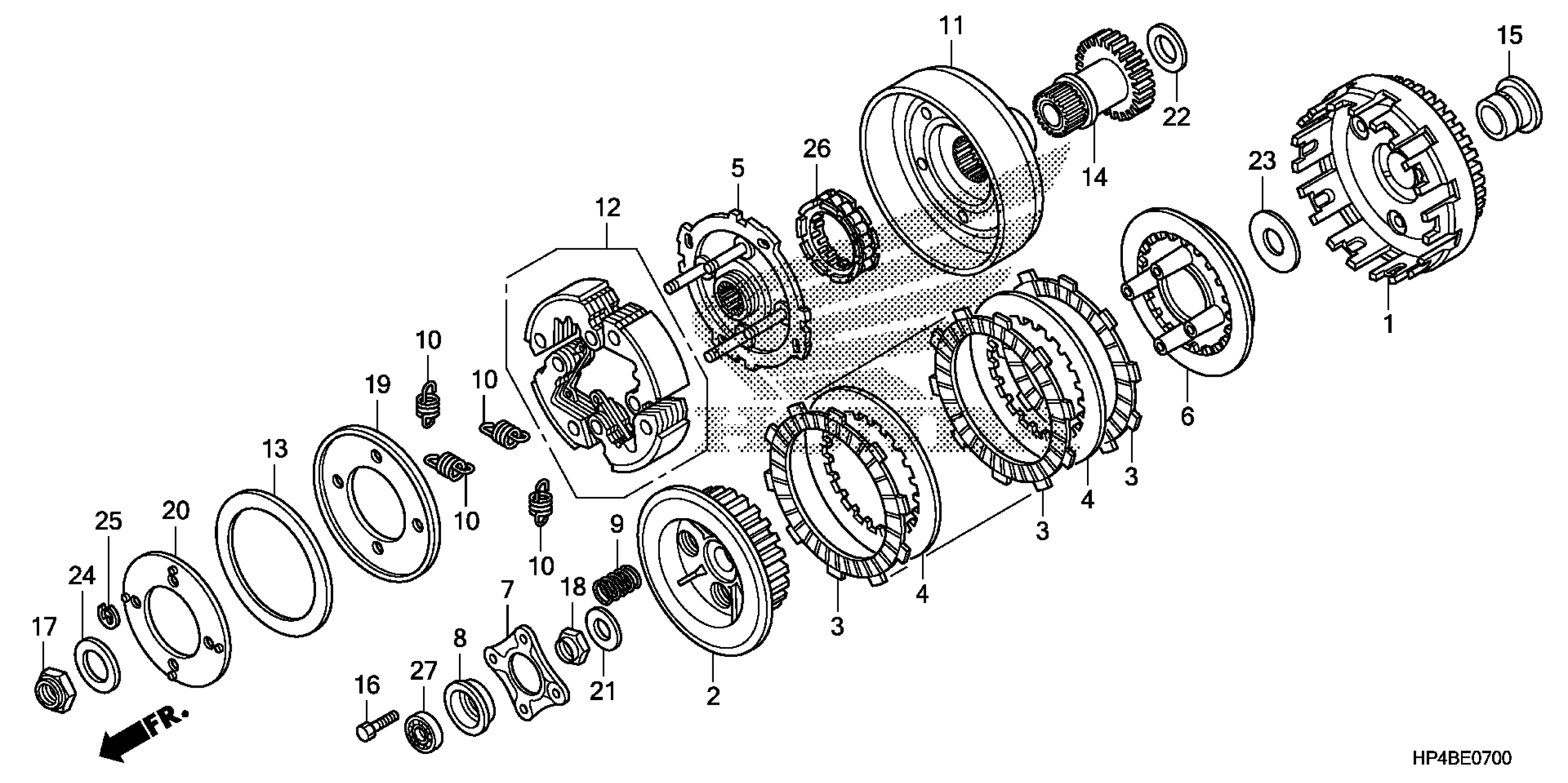

Honda TRX420FM2A (12) RANCHER, USA, VIN# 1HFTE359-C4500001 CLUTCH Diagram

CLUTCH OUTER

22100-HP0-A00

$293.39

CENTER, CLUTCH

22121-HP0-A00

$82.01

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

PLATE, CLUTCH

22321-HN0-670

$12.52

PLATE, DRIVE

22350-HP5-600

$64.34

PLATE, CLUTCH PRESSURE

22351-HP0-A00

$15.95

PLATE, CLUTCH LIFTER

22366-HN0-670

$12.17

COLLAR, CLUTCH LIFTER

22367-HP5-600

$4.78

SPRING, CLUTCH

22401-HP5-000

$4.87

SPRING, CLUTCH

22451-HP5-601

$4.74

CLUTCH OUTER This part replaces 22500-HP5-600.

22500-HP5-601

$53.17

WEIGHT SET, CLUTCH

22535-HP5-305

$128.15

SPRING, CONED DISK

22714-HP5-600

$20.76

GEAR, DRIVE (29T)

23120-HP0-A00

$121.58

BUSH (22MM)

23213-HP0-A00

$14.20

BOLT, HEX. (6X28)

90001-HM8-A40

$2.92

NUT, LOCK (20MM)

90235-HM7-000

$6.22

NUT, LOCK (18MM)

90236-HN5-M00

$5.21

WASHER (64X122X1.0)

90406-HP5-600

$10.20

WASHER (64X105X2)

90407-HP5-600

$11.26

WASHER, SPECIAL (18MM)

90432-HP0-A00

$2.92

WASHER, THRUST (29X40X2)

90457-HN2-000

$4.75

WASHER, THRUST (22X45X0.8)

90458-HN0-670

$2.92

WASHER, THRUST (20MM)

90459-KB4-670

$4.19

CIRCLIP (7MM)

90605-166-720

$1.80

CLUTCH, ONE-WAY

91101-HA0-004

$119.68

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35
