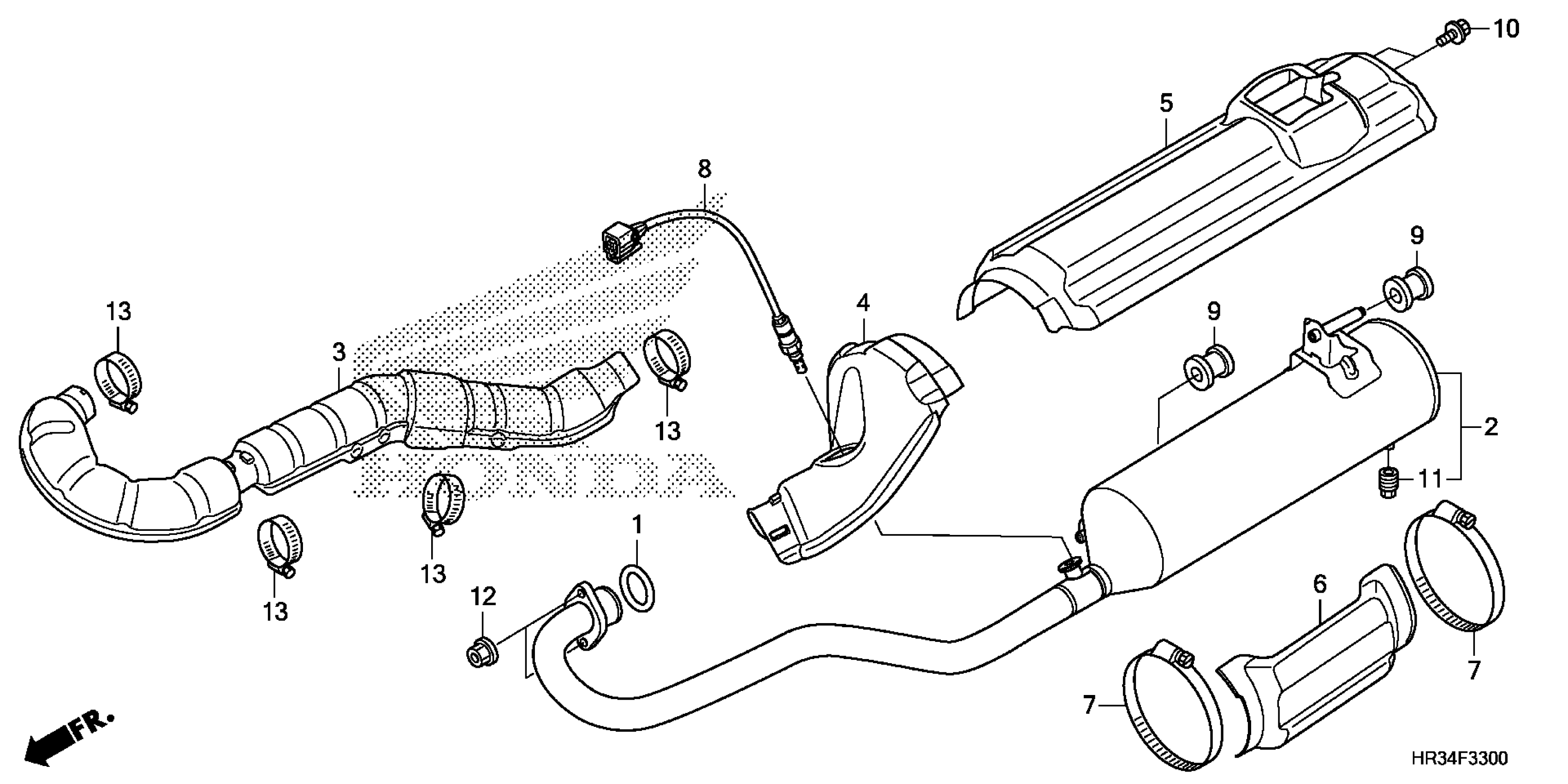

Honda TRX420FM22AC (14) TRX420FM2, USA, VIN# 1HFTE40E-E4000001 MUFFLER Diagram

#

Description

Price

1

GASKET, EX. PIPE

18291-MN4-920

$4.94

2

MUFFLER

18300-HR3-A20

$484.93

3

COVER, EX. PIPE

18321-HR3-A20

$43.68

4

COVER, MUFFLER (FR)

18322-HR3-A20

$25.29

5

COVER, MUFFLER

18323-HR3-A20

$30.72

6

COVER, MUFFLER (LOWER)

18324-HR3-A20

$21.08

7

BAND, MUFFLER COVER (89-140MM) This part replaces 19084-HP0-A50.

19084-HR6-B00

$4.43

8

SENSOR, OXYGEN (NGK)

36531-HR3-A21

$58.00

9

RUBBER, MUFFLER MOUNTING

50608-HR0-F00

$10.28

10

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

10

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

11

BOLT, ARRESTER

90183-HM5-850

$2.28

12

NUT, FLANGE (8MM)

90301-HM8-000

$2.46

13

BAND, AIR CLEANER CONNECTING TUBE (38)

90638-HN7-000

$3.84
