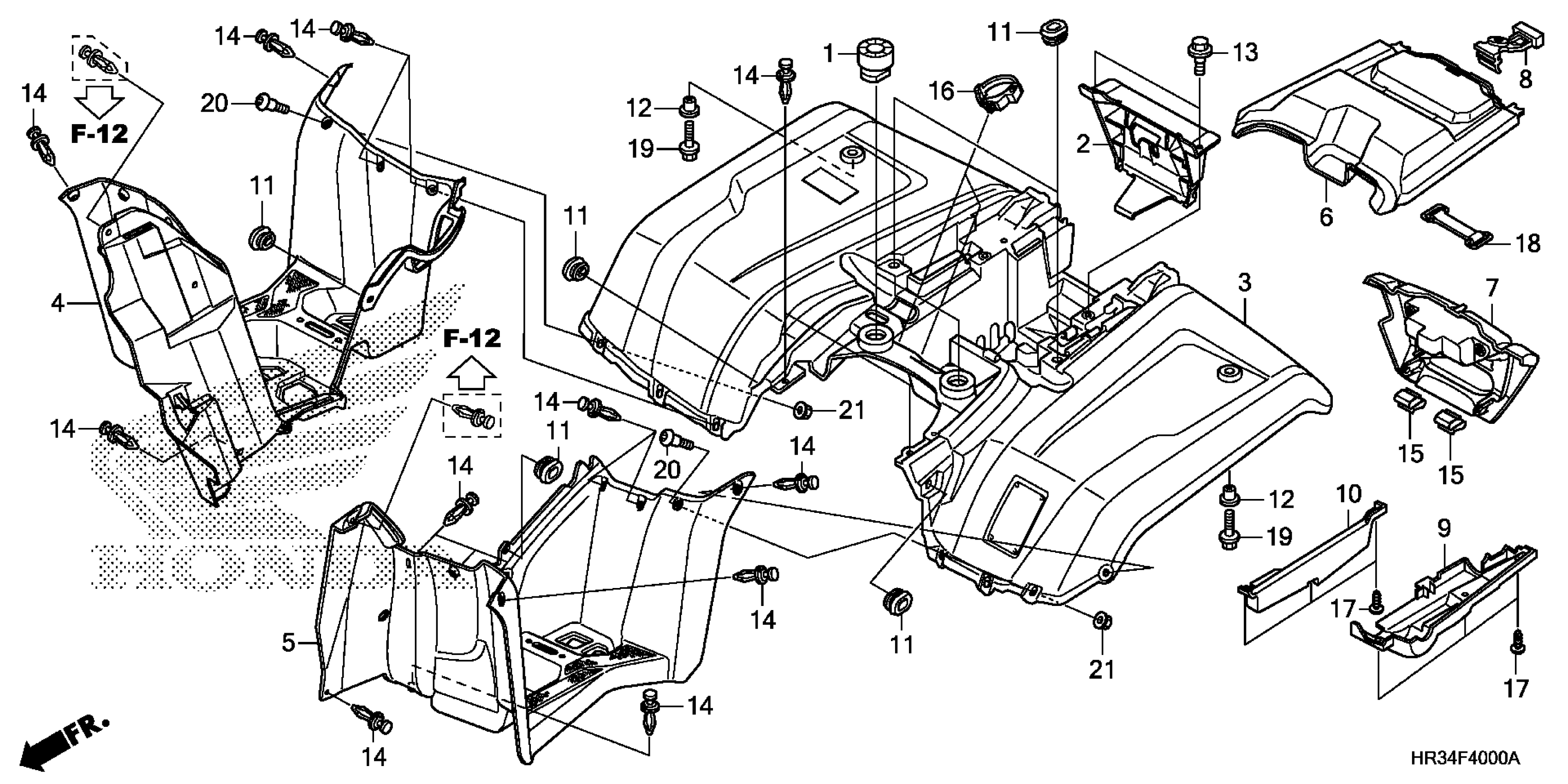

Honda TRX420FM1AC (14) TRX420FM1, USA, VIN# 1HFTE400-E4000001 REAR FENDER Diagram

#

Description
Price

1

CUSHION, SEAT MOUNTING

77207-HA0-000

$7.14

2

HOLDER, BATTERY

80101-HR3-A20

$6.14

3

SET ILLUST *R232* | Patriot red R232 This part replaces 80110-HR3-A20ZA.

80110-HR3-W51ZA

$97.49

3

SET ILLUST *G152* | Adventure green G152 This part replaces 80110-HR3-A20ZB.

80110-HR3-W51ZB

$97.49

3

SET ILLUST *R232*

80110-HR3-W51ZA

$97.49

4

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HR3-A20ZA

$84.44

5

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HR3-A20ZA

$50.80

6

COVER, RR. FENDER *NH1* (BLACK)

80210-HR3-A20ZA

$62.16

7

LID, TOOL BOX *NH1* (BLACK)

80211-HR3-A20ZA

$4.74

8

BAND, TOOL BOX

80214-HM5-850

$2.56

9

PROTECTOR, RR. MUFFLER

80222-HR3-A20

$8.65

10

PROTECTOR, BATTERY (RR)

80223-HR3-A20

$11.36

11

GROMMET, SIDE COVER

83551-MA6-000

$3.35

12

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

13

BOLT, FLANGE (6MM)

90111-147-000

$2.75

14

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

15

CLIP, CORD

90660-SB2-000

$8.58

16

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.44

17

SCREW, TAPPING (5X12)

93903-25220

$1.49

18

BAND B2, BATTERY

95012-13001

$5.28

19

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

20

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

21

NUT, FLANGE (6MM)

90302-187-000

$2.39
