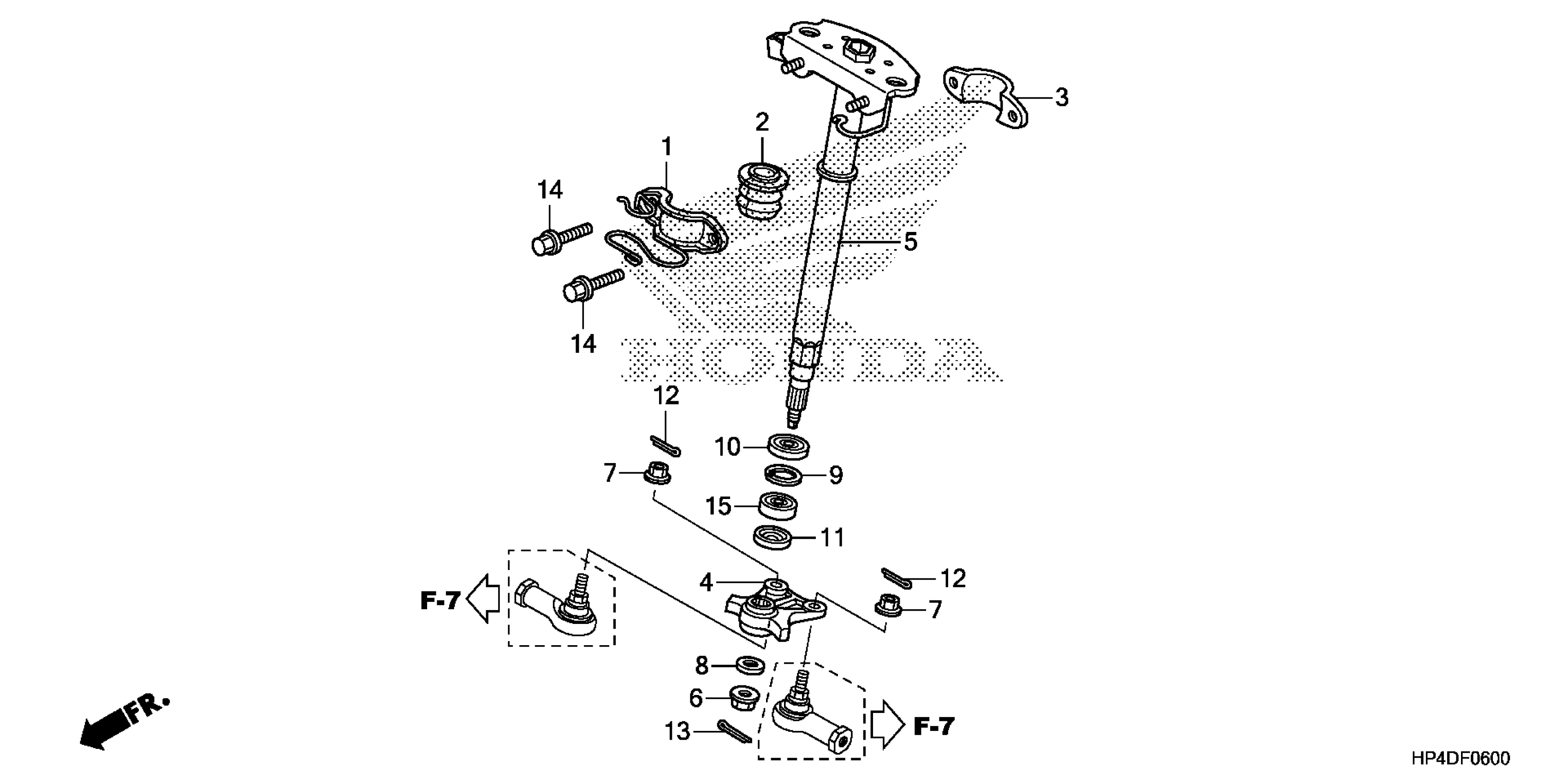

Honda TRX420FE2AC (13) RANCHER ES, USA, VIN# 1HFTE357-D4600001 STEERING SHAFT (STD) Diagram

#

Description
Price

1

HOLDER, STEERING SHAFT

53220-HP5-600

$16.43

2

BUSH, STEERING

53221-HP1-003

$13.02

3

HOLDER, STEERING SHAFT

53223-HP0-A00

$21.20

4

ARM, STEERING

53235-HP5-600

Unavailable

5

SHAFT, STEERING

53310-HP5-600

$180.51

6

NUT, SELF-LOCK (14MM)

90213-S73-003

$4.80

7

NUT, SELF-LOCK (12MM)

90305-HC4-000

$3.90

8

WASHER, THRUST (14MM)

90402-HA0-000

$3.51

9

CIRCLIP, SPECIAL (INNER) (42MM)

90603-HN7-000

$3.08

10

OIL SEAL (25X42X7) (ARAI)

91205-950-003

$8.80

11

DUST SEAL (37X25X6)

91258-HB3-003

$6.75

12

PIN, SPLIT (2.0X22)

94201-20220

$0.94

12

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

12

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

12

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

12

PIN, SPLIT (2.0X35)

94201-20350

$0.94

13

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

13

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

13

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

13

PIN, SPLIT (3.0X45)

94201-30450

$0.94

14

BOLT, FLANGE (8X50)

95701-08050-07

$1.38

15

BEARING, RADIAL BALL (6004UU)

96150-60041-10

$21.19
