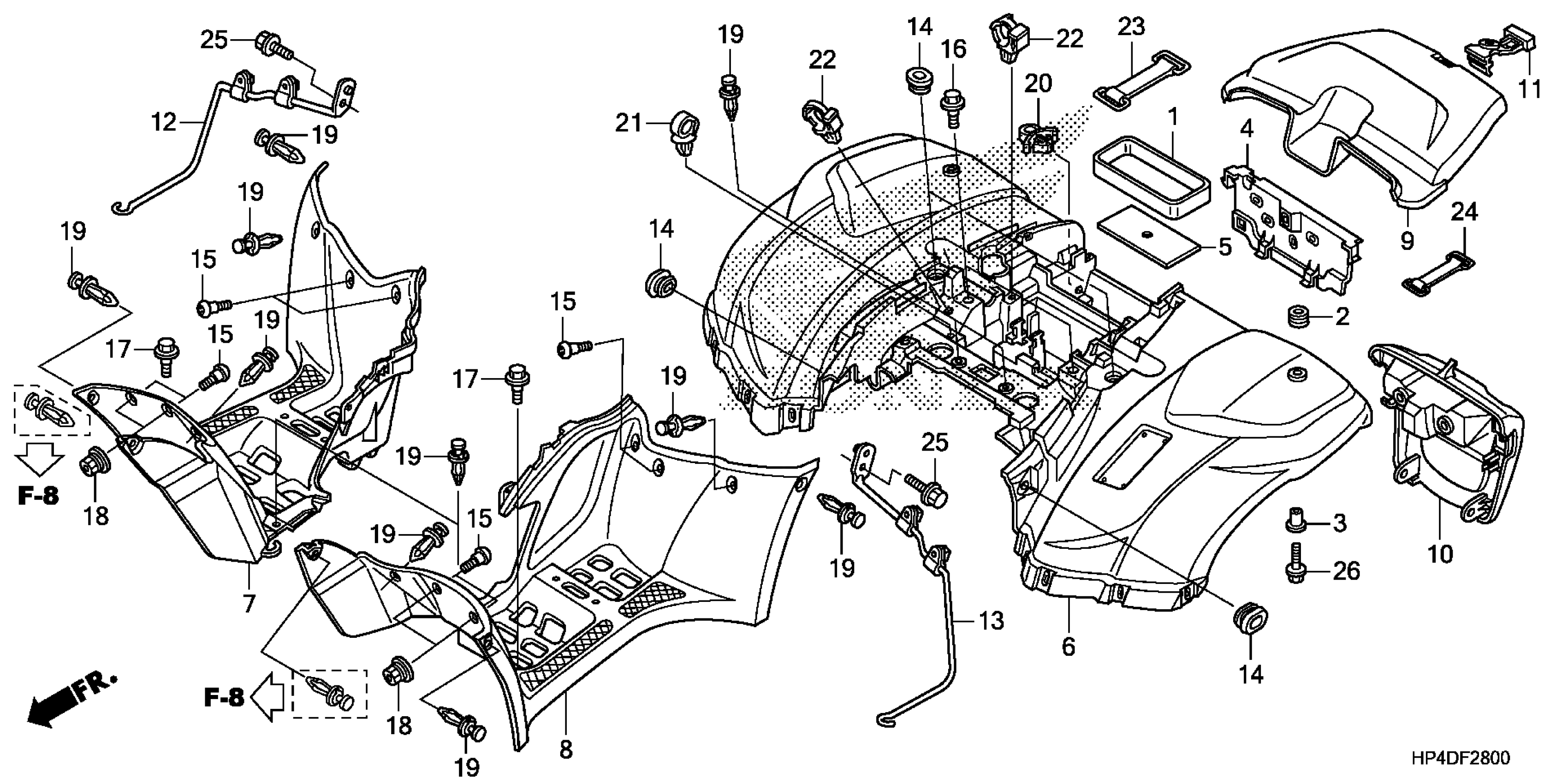

Honda TRX420FE2AC (13) RANCHER ES, USA, VIN# 1HFTE357-D4600001 REAR FENDER Diagram

#

Description
Price

1

RUBBER, BATTERY BAND

50383-HF1-670

$7.71

2

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

4

HOLDER, CONNECTOR

80101-HP7-A00

$6.35

5

RUBBER, BATTERY MOUNTING

80104-HP5-600

$63.18

6

FENDER SET, RR. (TYPE1) (WL) (NA USE ALT:80110-HP5-A50ZC) | Natural camo YRA02L;

80110-HP5-A90ZB

Unavailable

7

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HP5-600ZA

$77.00

8

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HP5-600ZA

$229.24

9

COVER, RR. FENDER *NH1* (BLACK)

80210-HP5-600ZA

$44.75

10

LID, TOOL BOX *NH1* (BLACK) | Adventure green G152;

80211-HP5-600ZA

$33.88

11

BAND, TOOL BOX

80214-HM5-850

$2.29

12

STAY, R. RR. FENDER

80217-HP5-600

$143.66

13

STAY, L. RR. FENDER

80218-HP5-600

$144.12

14

GROMMET, SIDE COVER

83551-MA6-000

$3.19

15

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.19

16

BOLT, FLANGE (6MM)

90111-197-890

$3.40

17

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

18

NUT, FLANGE (6MM)

90302-187-000

$2.21

19

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

20

CLIP, WIRE HARNESS (6MM) (WHITE)

90654-SA4-003

$0.21

21

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.18

22

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.19

23

BAND B1, BATTERY

95012-12001

$5.64

24

BAND F, BATTERY (155MM)

95012-17001

$6.90

25

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

26

BOLT, FLANGE (6X22)

95701-06022-08

$1.79
