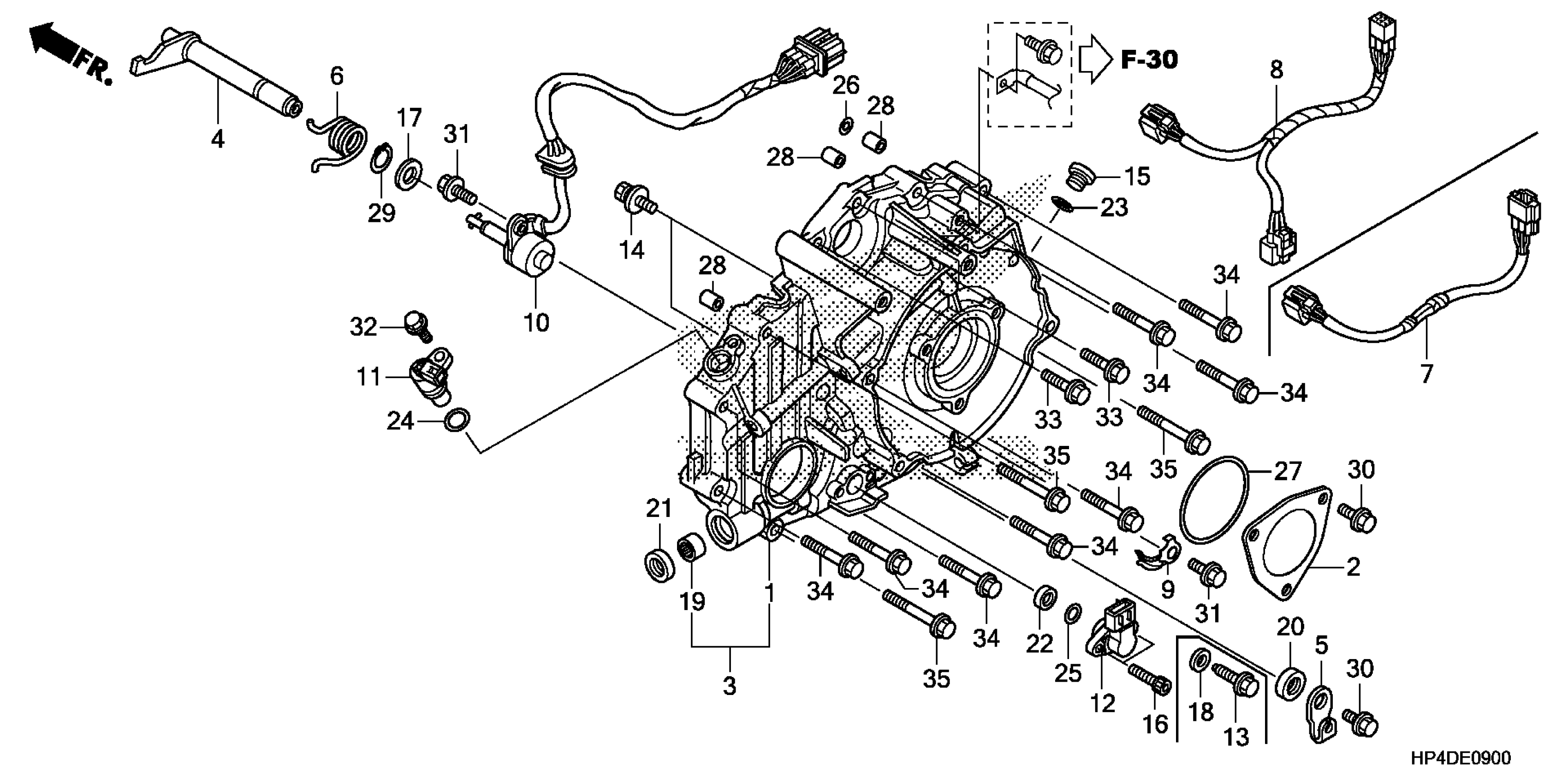

Honda TRX420FE2AC (13) RANCHER ES, USA, VIN# 1HFTE357-D4600001 REAR CRANKCASE COVER Diagram

COVER, RR. CRANKCASE

11340-HP5-L10

$110.26

CAP, RR. COVER

11342-HP5-600

$3.06

SHAFT A, REVERSE STOPPER

24860-HP5-000

$22.05

LEVER, REVERSE STOPPER

24865-HP5-600

$4.76

SPRING, REVERSE STOPPER

24867-HP5-600

$4.16

SUB-HARNESS, ENGINE

32101-HP5-A50

$13.51

CLIP, ALTERNATOR WIRE

32921-HN5-670

$4.26

SWITCH ASSY., CHANGE

35759-HP5-600

$57.83

SENSOR ASSY., SPEED (TDK-EPC) This part replaces 37700-HP5-601.

37700-KZR-601

$45.37

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$45.37

SENSOR ASSY., ANGLE This part replaces 38800-HP0-A11.

38800-HR3-A21

$27.06

SENSOR ASSY., ANGLE

38800-HR3-A21

$27.06

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

CAP (14MM)

90084-KY2-000

$15.97

BOLT, SOCKET (5X20)

90116-HP5-600

$3.10

WASHER, THRUST (12MM)

90452-166-600

$2.39

OIL SEAL (12X22X5)

91201-965-000

$4.06

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.92

OIL SEAL (8X16X6) This part replaces 91208-689-005.

91254-792-003

$2.92

OIL SEAL (8X16X6)

91254-792-003

$2.92

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.18

O-RING (58X3) (ARAI)

91351-ZV4-003

$2.98

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X50)

95701-06050-00

$2.06
