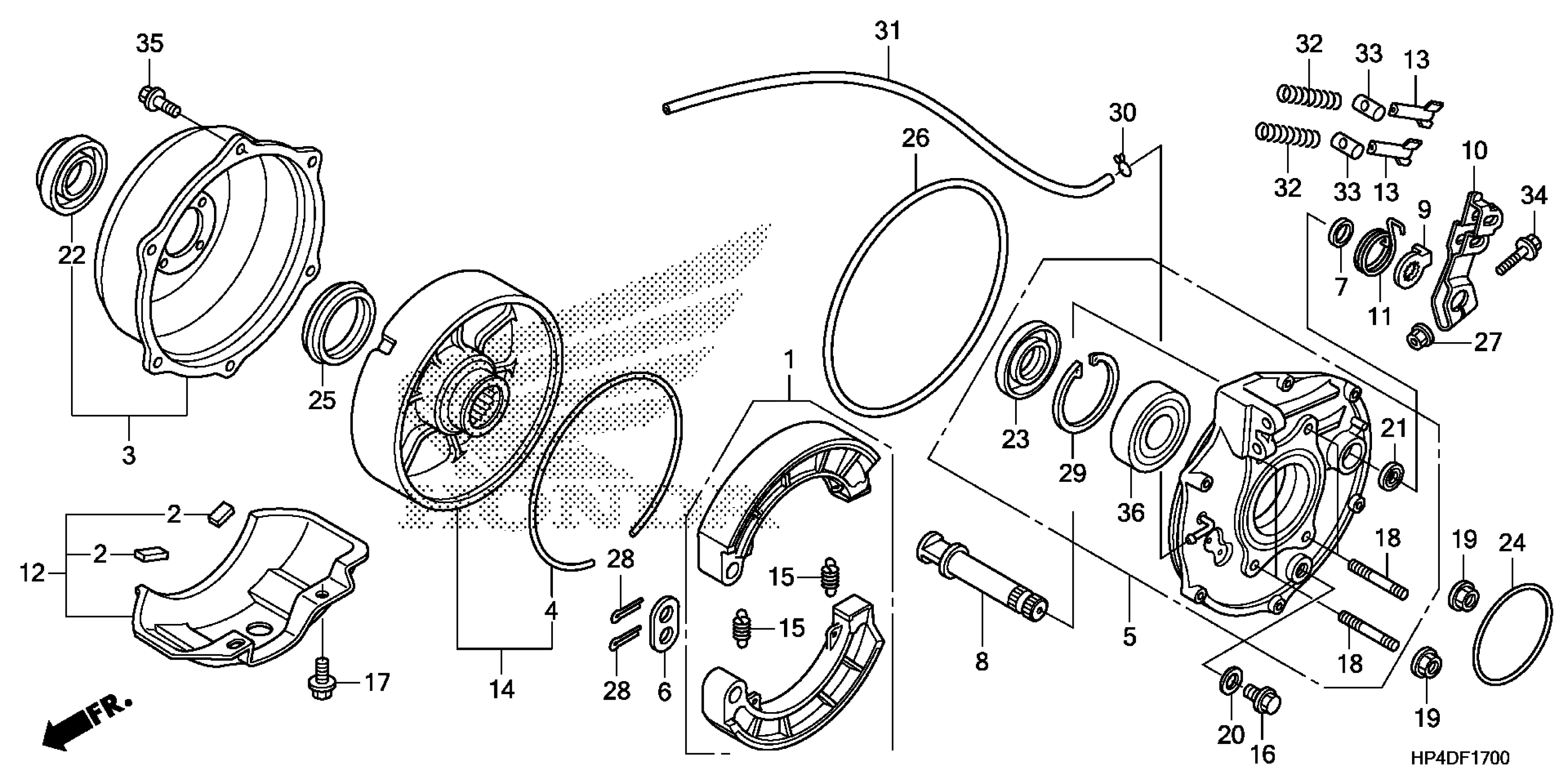

Honda TRX420FE2AC (13) RANCHER ES, USA, VIN# 1HFTE357-D4600001 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK)

06430-HN0-A20

$45.79

SHOE SET, BRAKE (JB)

06430-HN0-A30

$58.11

RUBBER, OVER HEAD COVER

12342-MEG-300

$1.49

COVER ASSY., DRUM

40520-HP5-600

$28.82

RING, DAMPER

42624-HN5-M00

$2.92

PANEL SET, RR. BRAKE

43010-HP5-600

$116.17

WASHER, ANCHOR PIN

43102-319-000

$6.21

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE

43141-HN5-670

$34.12

INDICATOR, BRAKE

43145-HN5-M00

$1.49

ARM, RR. BRAKE

43410-HP5-600

$12.03

SPRING, RR. BRAKE ARM

43415-HM7-000

$7.19

GUARD ASSY., BRAKE PANEL

43430-HP5-600

$20.70

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

DRUM ASSY., RR. BRAKE

43620-HP5-600

$97.30

SPRING, FR. BRAKE SHOE (RR.)

45133-329-000

$2.75

BOLT, SEALING (8MM)

90109-371-000

$2.58

BOLT, FLANGE (8X14) This part replaces 90127-SM4-951.

95701-08014-08

$1.80

BOLT, FLANGE (8X14)

95701-08014-08

$1.80

BOLT, STUD (10X25)

90151-HA7-670

$6.22

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

GASKET (8MM)

90471-580-000

$2.92

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

DUST SEAL (45X76X19)

91253-HC4-003

$15.86

DUST SEAL (44X75X9)

91256-HP5-601

$17.83

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.83

RING, SEAL

91351-HB3-004

$3.78

O-RING (181X3.1) (ARAI)

91355-HC4-003

$15.99

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49

CIRCLIP (INNER) (75MM)

94520-75000

$4.66

CLIP, TUBE (C6.5)

95002-35000

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X980)

95005-35001-30M

$8.63

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BEARING, RADIAL BALL (6009)

96150-60090-10

$58.48
