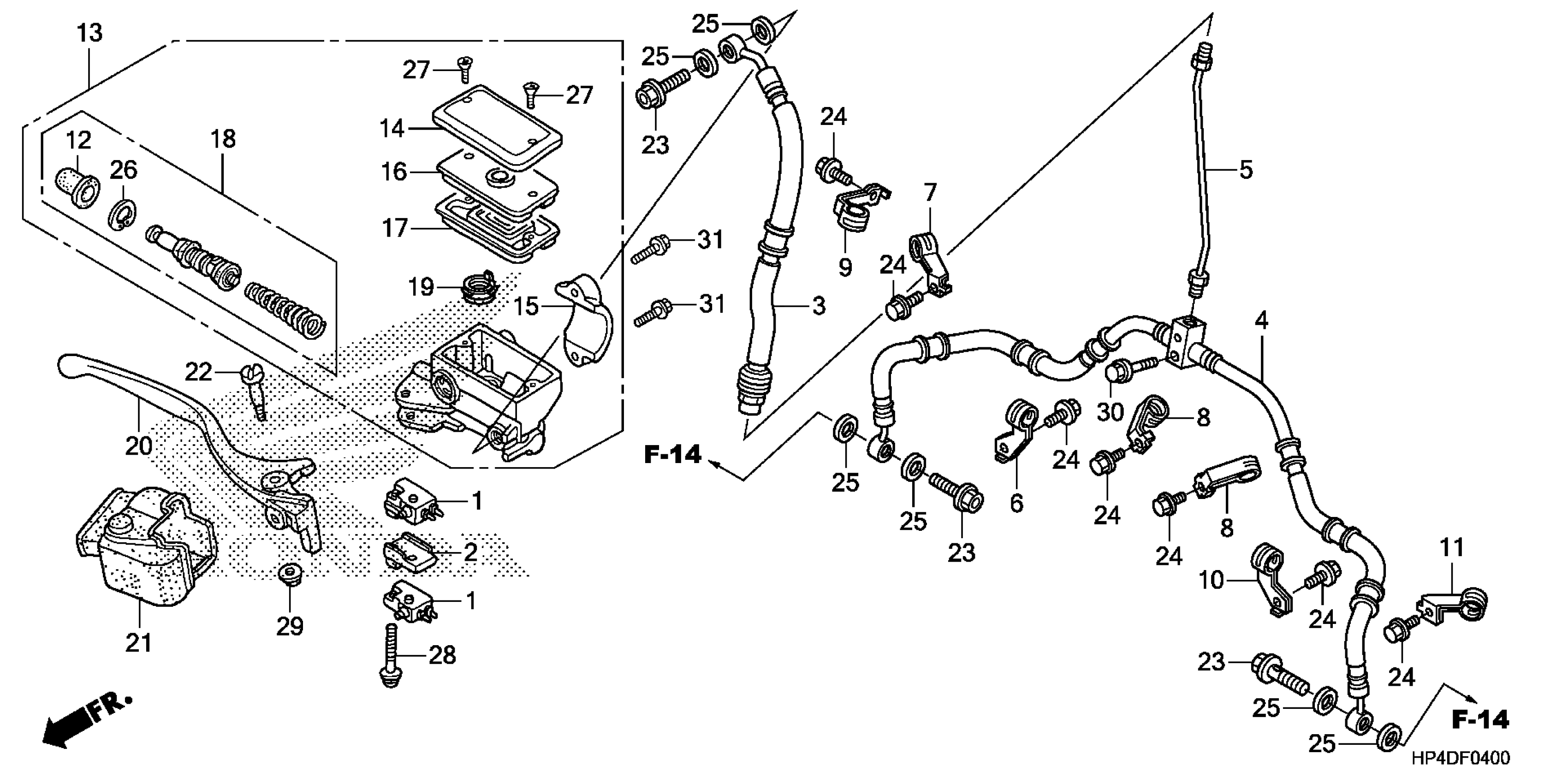

Honda TRX420FE2AC (13) RANCHER ES, USA, VIN# 1HFTE357-D4600001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

1

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

2

SPACER, FR. STOP SWITCH

35343-HN2-740

$3.67

3

HOSE A, FR. BRAKE

45126-HP5-601

$12.79

4

HOSE B, FR. BRAKE

45127-HP7-A01

$40.52

5

PIPE, FR. BRAKE

45128-HP7-A00

$3.64

6

CLAMP A, R. FR. BRAKE HOSE

45461-HP5-600

$1.49

7

CLAMP B, R. FR. BRAKE HOSE

45462-HP5-600

$1.49

8

CLAMP C, FR. BRAKE HOSE

45463-HP5-600

$61.43

9

CLAMP B, FR. BRAKE HOSE

45464-HN1-000

$58.46

10

CLAMP A, L. FR. BRAKE HOSE

45471-HP5-600

$1.49

11

CLAMP B, L. FR. BRAKE HOSE

45472-HP5-600

$30.05

12

BOOT

45504-410-003

$12.16

13

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)

45510-HN8-305

$100.68

13

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) This part replaces 45510-HP0-A51.

45510-HN8-305

$100.68

14

CAP, MASTER CYLINDER

45513-MB4-673

$47.89

15

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

16

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

17

DIAPHRAGM

45520-MA5-672

$18.13

18

MASTER CYLINDER SET

45530-HN8-006

$14.22

19

SEPARATOR

46666-HB9-006

$9.38

20

LEVER, R. HANDLE

53175-HP0-A00

$22.26

21

COVER, R. HANDLE

53176-HN8-000

$7.82

22

BOLT, HANDLE LEVER

90114-HP0-A51

$1.49

23

BOLT, OIL (10X22)

90145-MS9-612

$7.54

24

BOLT, FLANGE (6X12)

90181-KV3-700

$1.54

25

WASHER, OIL BOLT

90545-300-000

$3.99

26

CIRCLIP

90651-MA5-671

$2.66

27

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

27

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

28

SCREW-WASHER (4X30)

93893-04030-07

$1.49

29

NUT, FLANGE (6MM)

94050-06000

$1.49

30

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

31

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
