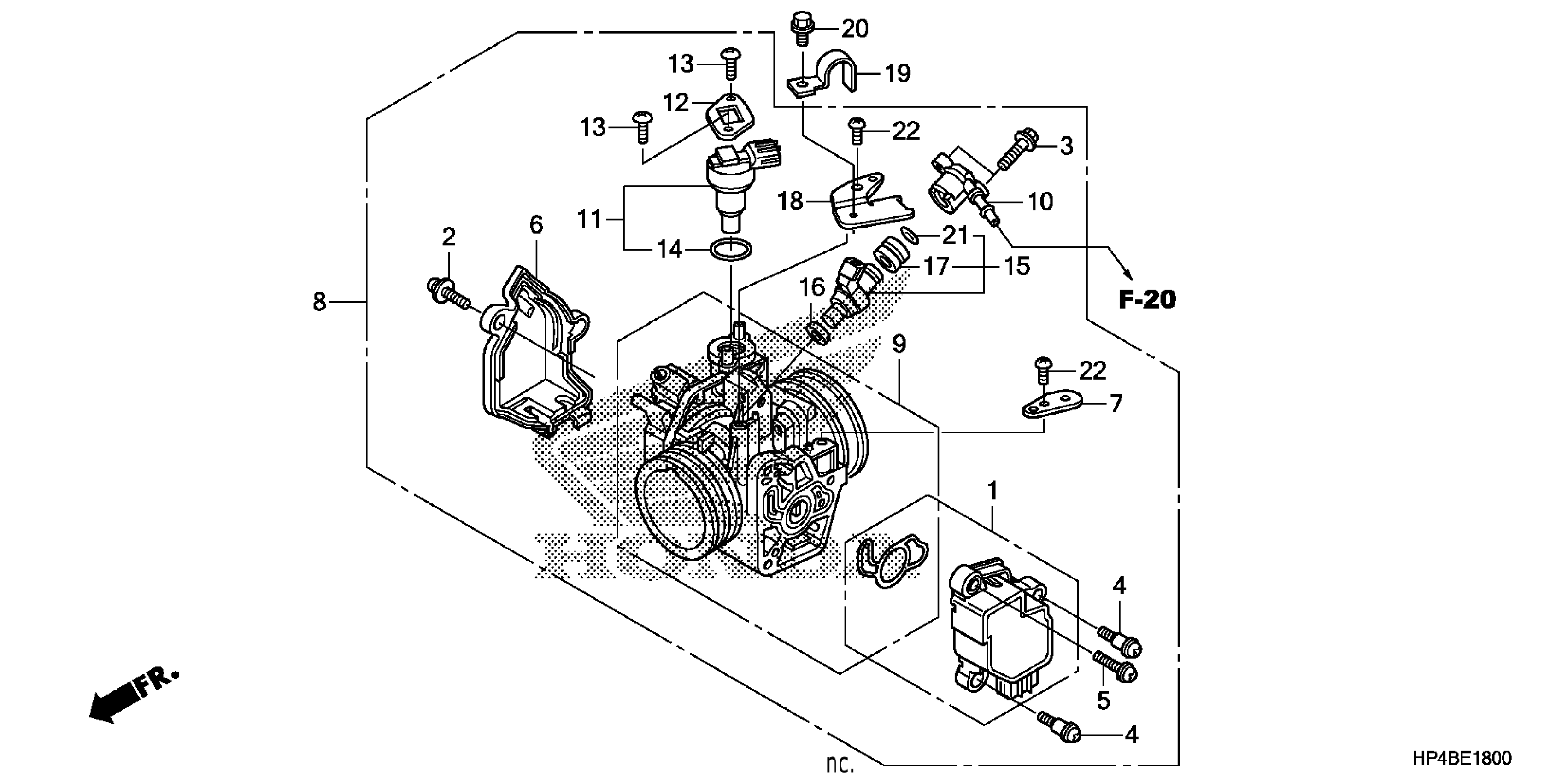

Honda TRX420FE2A (12) RANCHER ES, USA, VIN# 1HFTE357-C4500001 THROTTLE BODY Diagram

#

Description
Price

1

SENSOR SET

16060-HP6-A01

$139.42

2

SCREW-WASHER

16080-HP5-601

$2.13

3

BOLT, FLANGE (5X20)

16080-KPH-701

$4.63

4

SCREW, TORX (5X8.7)

16081-KPH-701

$3.12

5

SCREW, TORX (5X17)

16082-KPH-701

$5.43

6

COVER, BODY

16157-HN8-A61

$2.92

7

STAY, HARNESS CLAMP

16196-HP5-602

$1.49

8

BODY ASSY., THROTTLE (GQB6A A)

16400-HP7-A01

$281.15

9

BODY SET

16410-HP7-A01

$185.26

10

JOINT, INJECTOR

16422-HP5-602

$5.37

11

VALVE SET, IDLE AIR CONTROL

16430-HP6-A01

$65.14

12

PLATE, IDLE AIR CONTROL VALVE

16432-HP5-601

$3.62

13

SCREW, TORX

16433-HN8-A61

$1.49

14

O-RING (17.8X1.9)

16435-HN8-A61

$9.12

15

INJECTOR ASSY., FUEL

16450-HP5-603

$69.40

16

SEAL RING, INJECTOR

16472-MCW-000

$2.39

17

CUSHION RING, INJECTOR

16473-P7A-004

$6.90

18

BASE, CLAMP

17567-HP5-601

$5.02

19

CLAMP, FUEL HOSE

17568-HP5-600

$1.49

20

BOLT, FLANGE (5X10)

90002-892-000

$1.49

21

O-RING (7.8X1.9)

91301-P7A-004

$3.35

22

SCREW, PAN (5X10)

93500-05010-0H

$1.49

22

SCREW, PAN (5X10) This part replaces 93500-05010-08.

93500-05010-0H

$1.49

22

SCREW, PAN (5X10) This part replaces 93500-05010-1H.

93500-05010-0H

$1.49
