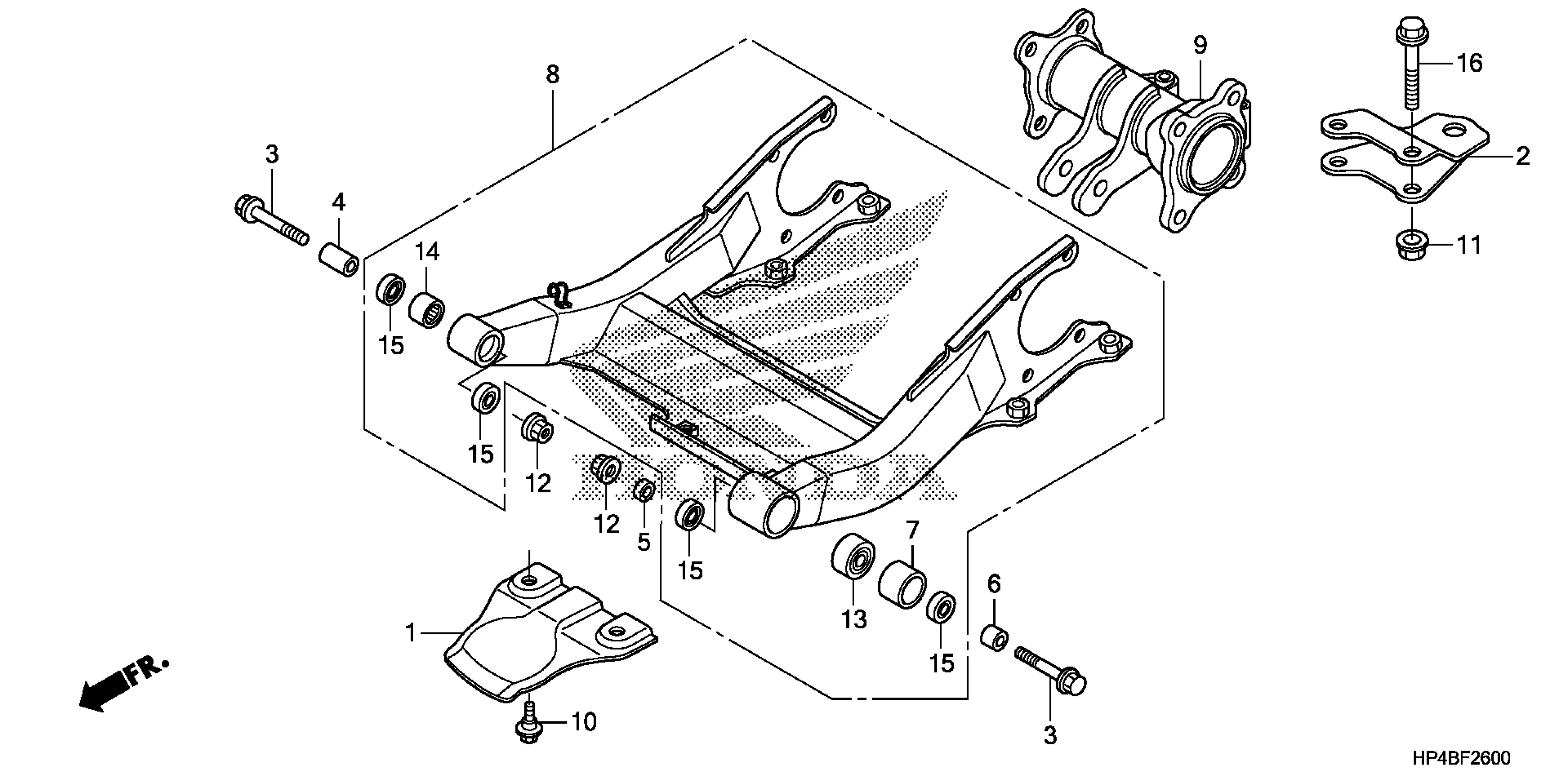

Honda TRX420FE2A (12) RANCHER ES, USA, VIN# 1HFTE357-C4500001 SWINGARM Diagram

GUARD, YOKE JOINT

50359-HP5-600

$11.31

HITCH, TRAILER

50810-HN5-670

$61.33

BOLT, SWINGARM PIVOT

52101-HP5-600

$6.01

COLLAR, R. PIVOT

52142-HP5-600

$13.30

COLLAR A, L. PIVOT

52143-HP5-600

$7.77

COLLAR B, L. PIVOT

52144-HP5-600

$9.93

COLLAR C, L. PIVOT

52145-HP5-600

$12.33

SWINGARM SET

52200-HP5-600

$566.34

HOUSING, RR. AXLE

52210-HP5-600

$100.85

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

BEARING, ANGULAR BALL (12X32X15.9)

91054-HP5-601

$24.47

BEARING, NEEDLE (20X26X20) (NTN)

91070-GC4-601

$24.72

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

DUST SEAL (20X26X4.5) (ARAI) This part replaces 91254-KS6-005.

91254-KS6-003

$9.19

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
