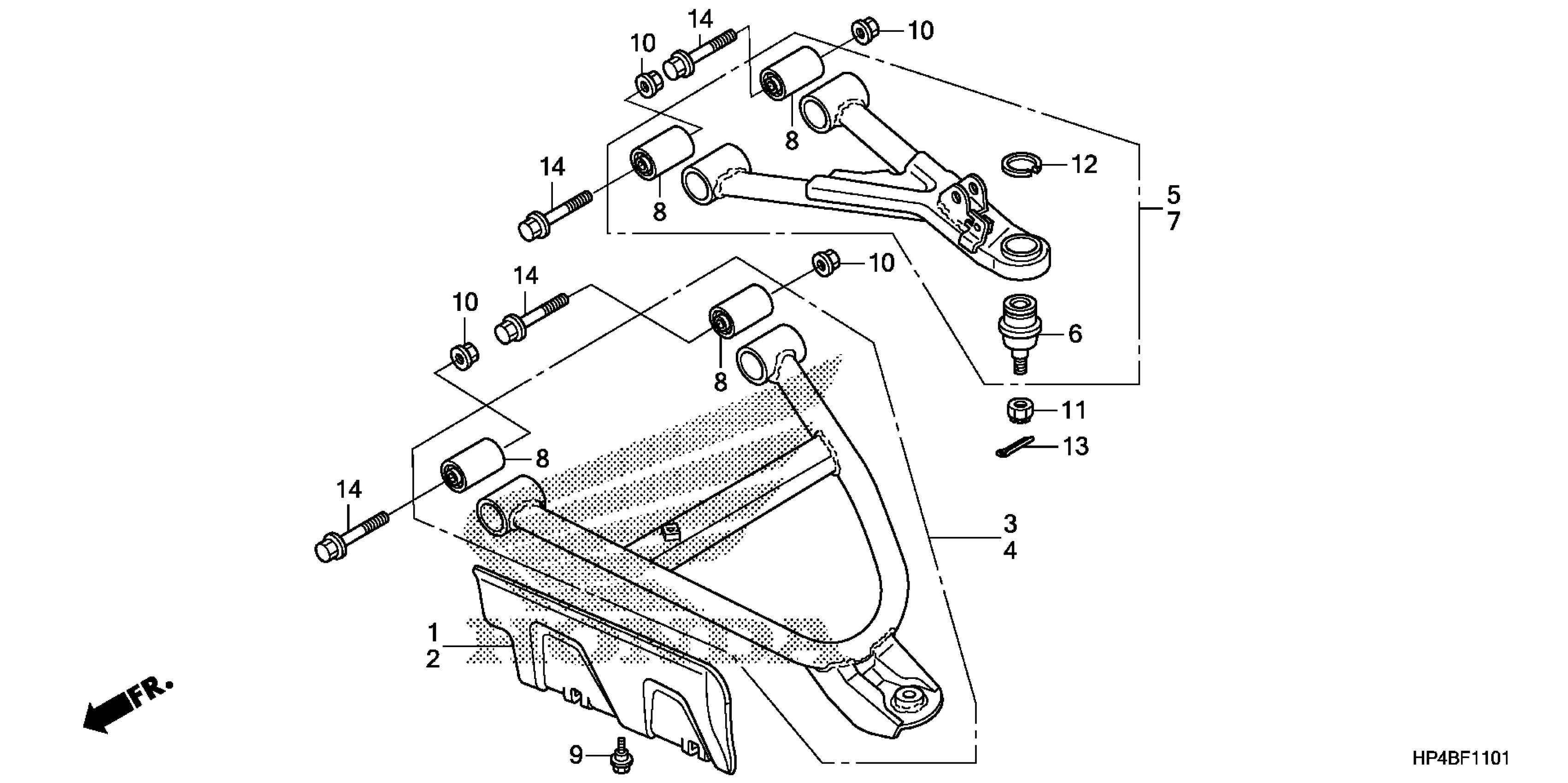

Honda TRX420FE2A (12) RANCHER ES, USA, VIN# 1HFTE357-C4500001 FRONT ARM (4WD) Diagram

GUARD, R. FR. INBOARD

51315-HR0-F00

$3.67

GUARD, L. FR. INBOARD

51316-HR0-F00

$3.67

ARM ASSY., R. FR. (LOWER)

51350-HP5-600

Unavailable

ARM ASSY., L. FR. (LOWER)

51360-HP5-600

Unavailable

ARM ASSY., R. FR. (UPPER)

51370-HP7-A00

$113.75

JOINT A, ARM BALL

51375-HP5-601

$17.90

ARM ASSY., L. FR. (UPPER)

51380-HP7-A00

$125.43

BUSH, FR. ARM (OUTER)

51393-HC4-003

$25.21

BOLT, FLANGE (6MM)

90111-KT1-780

$13.05

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

CIRCLIP, SPECIAL (OUTER) (34MM)

90603-HP5-600

$3.49

PIN, SPLIT (3.0X18)

94201-30180

$0.94

BOLT, FLANGE (10X62)

90151-HC5-000

$7.22

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.22
