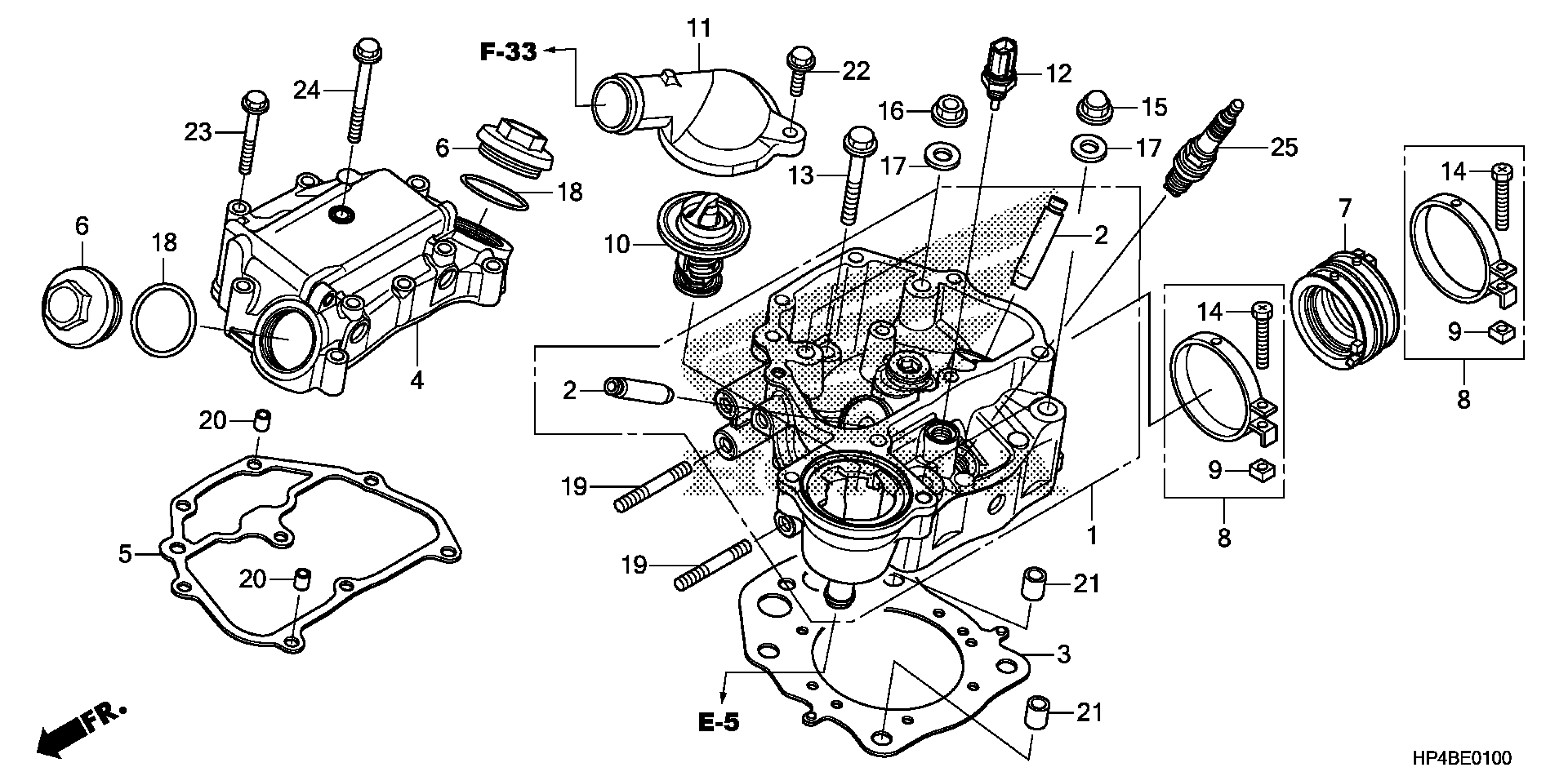

Honda TRX420FE2A (12) RANCHER ES, USA, VIN# 1HFTE357-C4500001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-HP7-A01

$648.98

2

GUIDE, VALVE (OVER SIZE)

12204-HP7-305

$36.51

3

GASKET, CYLINDER HEAD

12251-HP7-A01

$25.25

4

COVER, CYLINDER HEAD

12310-HP5-L10

$341.31

5

GASKET, HEAD COVER

12315-HR0-F01

$19.50

6

CAP, TAPPET ADJUSTING HOLE

12361-HP5-600

$18.50

7

INSULATOR, THROTTLE BODY

16211-HP5-600

$15.31

8

BAND, INSULATOR

16217-MBW-J20

$4.08

9

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

10

THERMOSTAT SET This part replaces 19300-HN8-003.

19300-HN8-305

$65.55

11

COVER, THERMOSTAT

19321-HP5-L10

$272.21

12

SENSOR ASSY., WATER TEMPERATURE This part replaces 37870-HN8-A60.

37870-HN8-A61

$36.69

12

SENSOR ASSY., WATER TEMPERATURE

37870-HN8-A61

$36.69

13

BOLT, FLANGE (8X55)

90009-PNA-000

$4.34

14

BOLT, RECESSED (5X28)

90023-MM5-000

$2.92

15

NUT, CAP (10MM)

90201-HA0-000

$6.45

16

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

16

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

16

NUT, FLANGE (10MM)

94050-10000

$1.59

17

WASHER (10MM)

90465-MM9-000

$3.54

18

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

19

BOLT, STUD (8X25)

92900-08025-0B

$2.20

20

PIN, DOWEL (8X14)

94301-08140

$2.25

21

PIN A, DOWEL (12X16)

94301-12160

$2.27

22

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

23

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

24

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

25

SPARK PLUG (BKR5E-11) (NGK)

98079-5514E

$2.92
