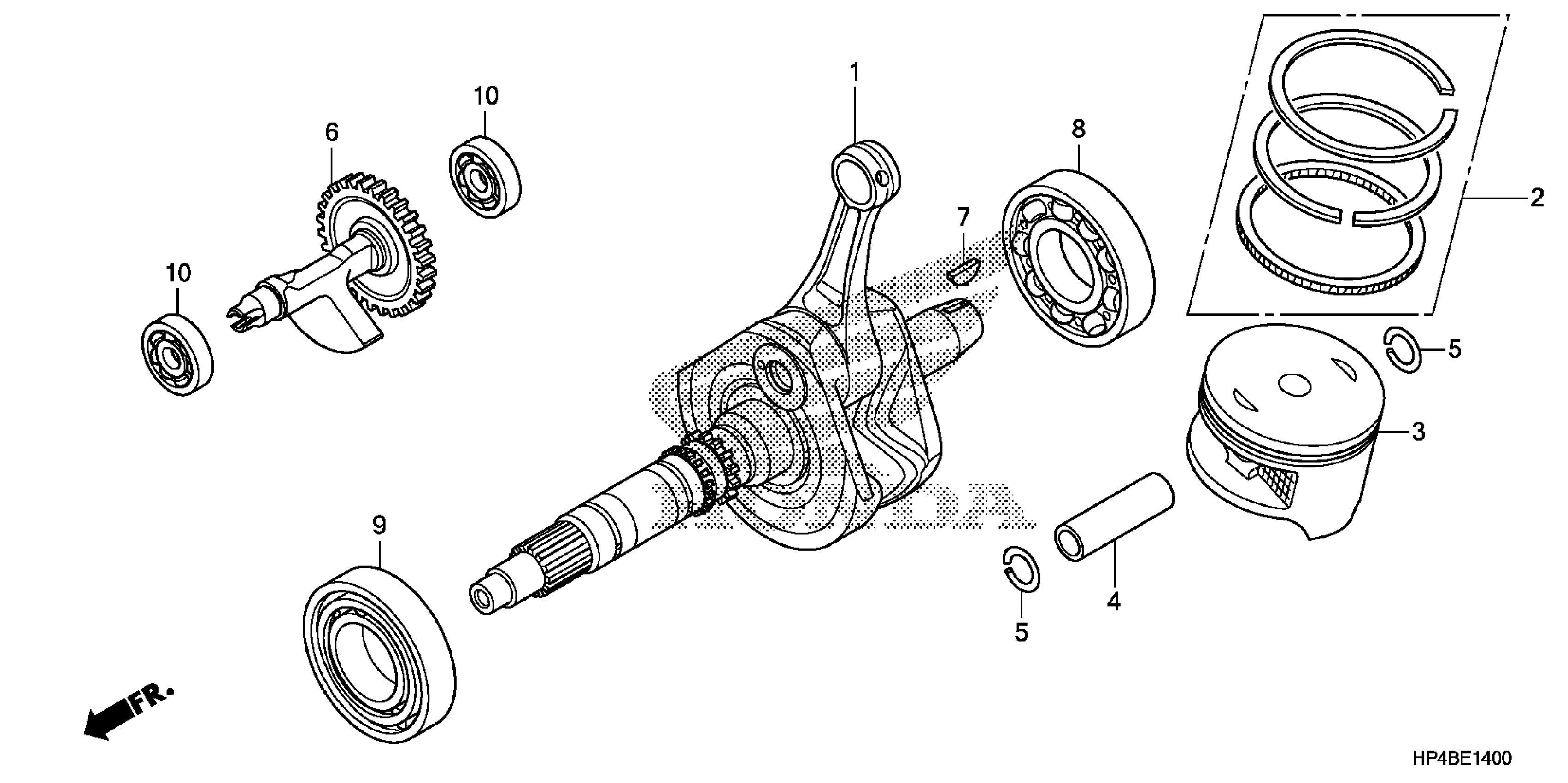

Honda TRX420FE2A (12) RANCHER ES, USA, VIN# 1HFTE357-C4500001 CRANKSHAFT + PISTON Diagram

#

Description

Price

1

CRANKSHAFT

13000-HR0-F00

$695.10

2

RING SET, PISTON (STD)

13010-HP5-600

$49.30

2

RING SET, PISTON (0.25) | (Optional).

13011-HP5-600

$98.84

2

RING SET, PISTON (0.50) | (Optional).

13012-HP5-600

$98.84

3

PISTON (STD)

13101-HP5-600

$120.05

3

PISTON (0.25) | (Optional).

13102-HP5-600

$74.16

3

PISTON (0.50) | (Optional).

13103-HP5-600

$74.16

4

PIN, PISTON

13111-HP5-600

$22.58

5

CLIP, PISTON PIN (19MM)

13112-MAT-000

$2.11

6

SHAFT, BALANCER (32T)

13420-HP5-600

$237.15

7

KEY, SPECIAL WOODRUFF (25X18)

90741-ZE2-000

$3.08

8

BEARING, RADIAL BALL

91001-HM7-008

$56.58

9

BEARING, RADIAL BALL (40X85X18)

91002-HP5-601

$45.81

10

BEARING, RADIAL BALL (6203)

96100-62033-00

$10.00
