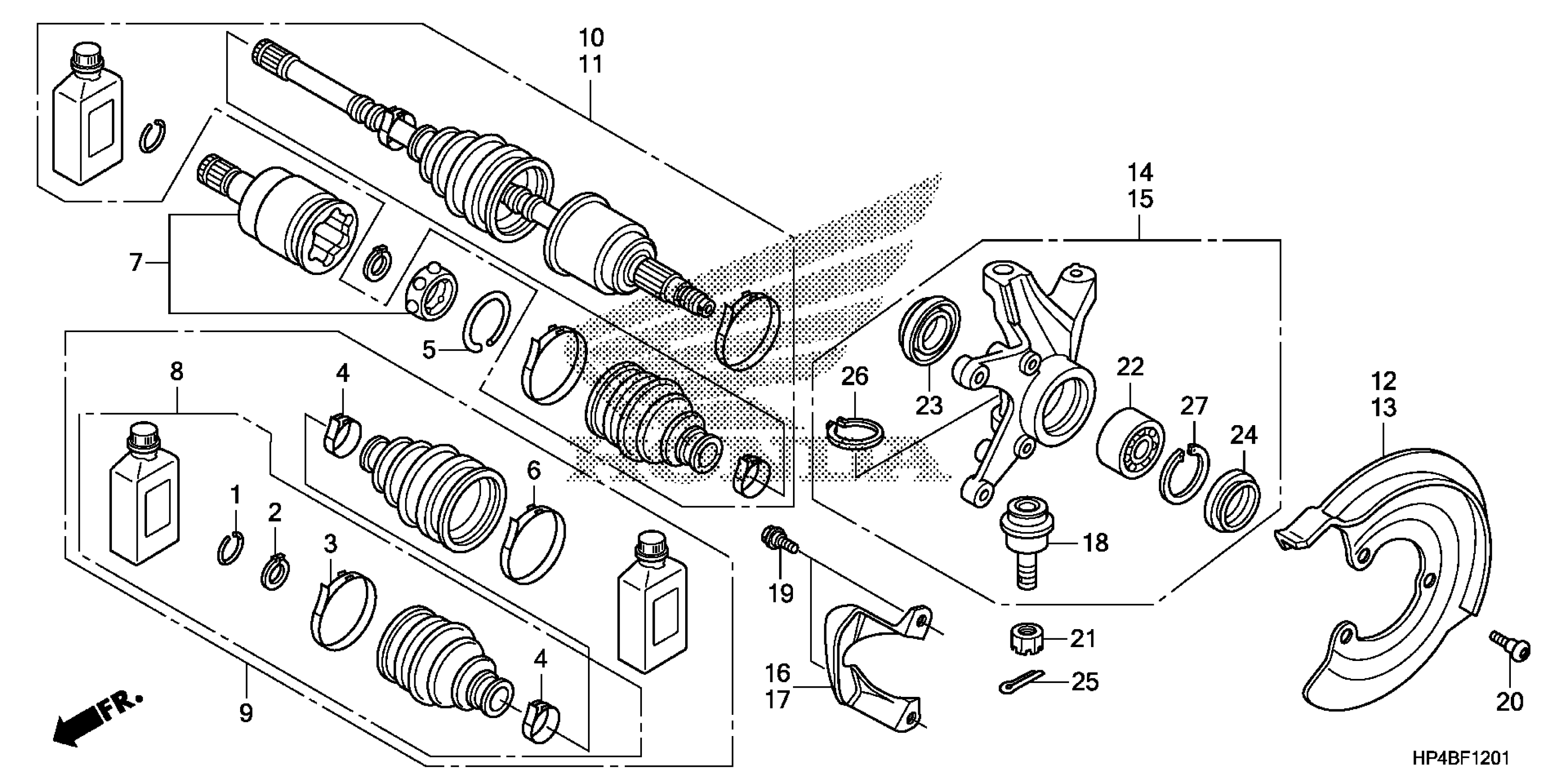

Honda TRX420FE2A (11) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE357-B4400001 TO 1HFTE357-B4400001 FRONT KNUCKLE (4WD) Diagram

RING, SNAP

42206-HA7-671

$1.09

CIRCLIP

42209-HC5-003

$0.83

BAND B, INBOARD

44205-HN8-A41

$7.67

BAND A, INBOARD

44206-HN8-A41

$7.67

RING, SNAP

44207-HN8-A41

$7.18

BAND, OUTBOARD

44208-HP5-601

$8.14

JOINT, INBOARD

44220-HP5-601

$109.51

BOOT SET, INBOARD

44230-HN8-A41

$50.24

BOOT SET

44240-HP5-601

$68.22

SHAFT COMP SET R This part replaces 44250-HP7-A31.

44250-HP7-A32

$172.86

SHAFT SET, L. FR. DRIVE

44350-HP7-A31

$161.62

SPLASH GUARD, R.

45255-HP5-600

$15.74

SPLASH GUARD, L.

45256-HP5-600

$14.63

KNUCKLE ASSY., R.

51200-HP5-600

$349.20

KNUCKLE ASSY., L.

51250-HP5-600

$221.37

GUARD, R. FR. OUTBOARD

51325-HN2-B70

$4.53

GUARD, L. FR. OUTBOARD

51326-HN2-B70

$4.53

JOINT A, ARM BALL

51355-HP5-601

$16.93

BOLT, FLANGE (6MM)

90111-KT1-780

$13.05

BOLT, SOCKET (6X15)

90114-HP0-A00

$1.93

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

BEARING, ANGULAR (30X50X20) (TOYO)

91051-HC5-003

$63.10

DUST SEAL (40X58X7)

91209-HN2-003

$10.62

DUST SEAL (38X50X6)

91254-HP5-601

$5.64

PIN, SPLIT (3.0X18)

94201-30180

$0.94

CIRCLIP (OUTER) (32MM)

94514-32000

$0.91

CIRCLIP (INNER) (50MM)

94520-50000

$2.33
