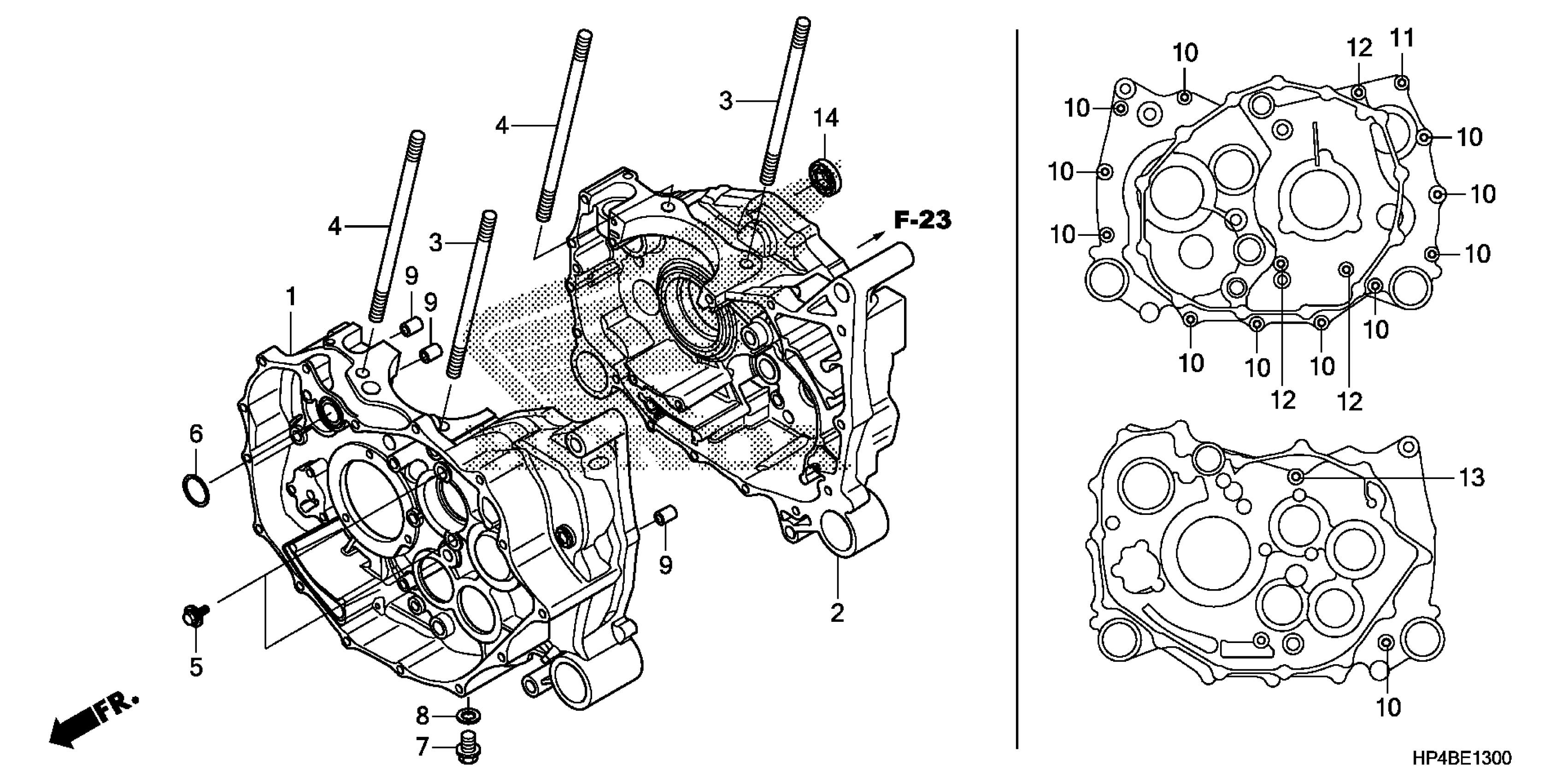

Honda TRX420FE2A (11) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE357-B4400001 TO 1HFTE357-B4400001 CRANKCASE Diagram

CRANKCASE, FR.

11100-HP5-A51

$496.36

CRANKCASE, RR.

11200-HP5-A50

$572.72

BOLT, STUD (10X147)

90013-HP7-A00

$6.82

BOLT, STUD (10X177)

90013-MZ8-B40

$17.15

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

O-RING (20.6X1.9)

91304-HP5-601

$2.95

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

BOLT, FLANGE (6X85)

95701-06085-00

$1.64

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
