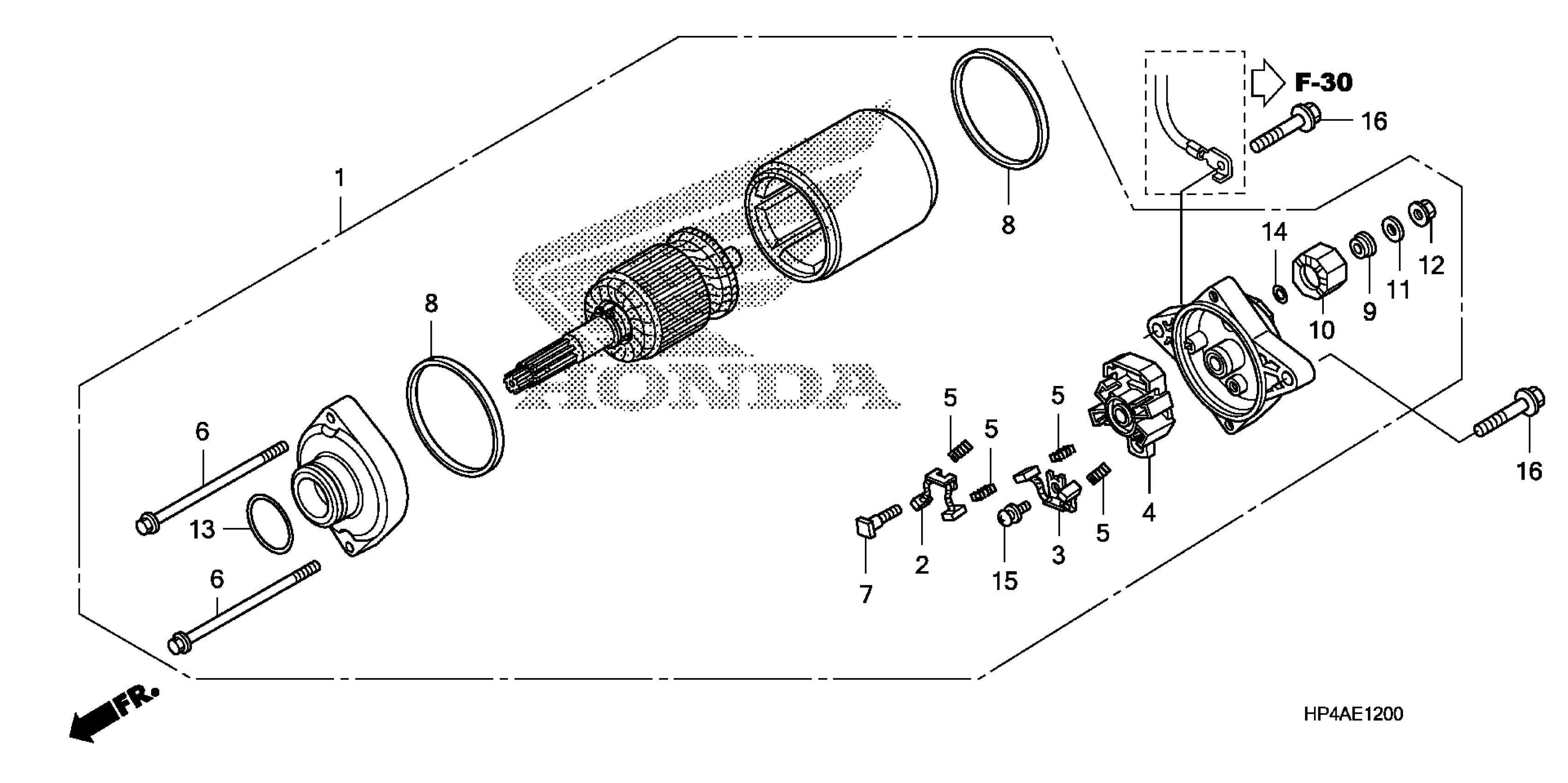

Honda TRX420FE2A (09) RANCHER ES, USA, VIN# 1HFTE357-94200001 TO 1HFTE357-94299999 STARTING MOTOR Diagram

Description

Price

STARTER MOTOR ASSY.

31200-HP5-601

$324.40

BRUSH SET A, CARBON

31201-MEW-921

$7.25

BRUSH SET B, CARBON

31202-MEW-921

$11.74

HOLDER, BRUSH

31203-MEW-921

$6.96

SPRING, CARBON BRUSH

31204-MEW-921

$11.33

BOLT, SETTING

31205-HP5-601

$2.73

BOLT, TERMINAL

31206-MEW-921

$2.67

RING

31207-HP5-601

$1.96

INSULATOR

31208-MEW-921

$6.97

STOPPER, TERMINAL

31209-MEW-921

$10.35

WASHER

31210-MEW-921

$1.65

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.20

SCREW-WASHER (5X12)

93892-05012-08

$1.04

BOLT, FLANGE (6X25)

95801-06025-00

$0.99
