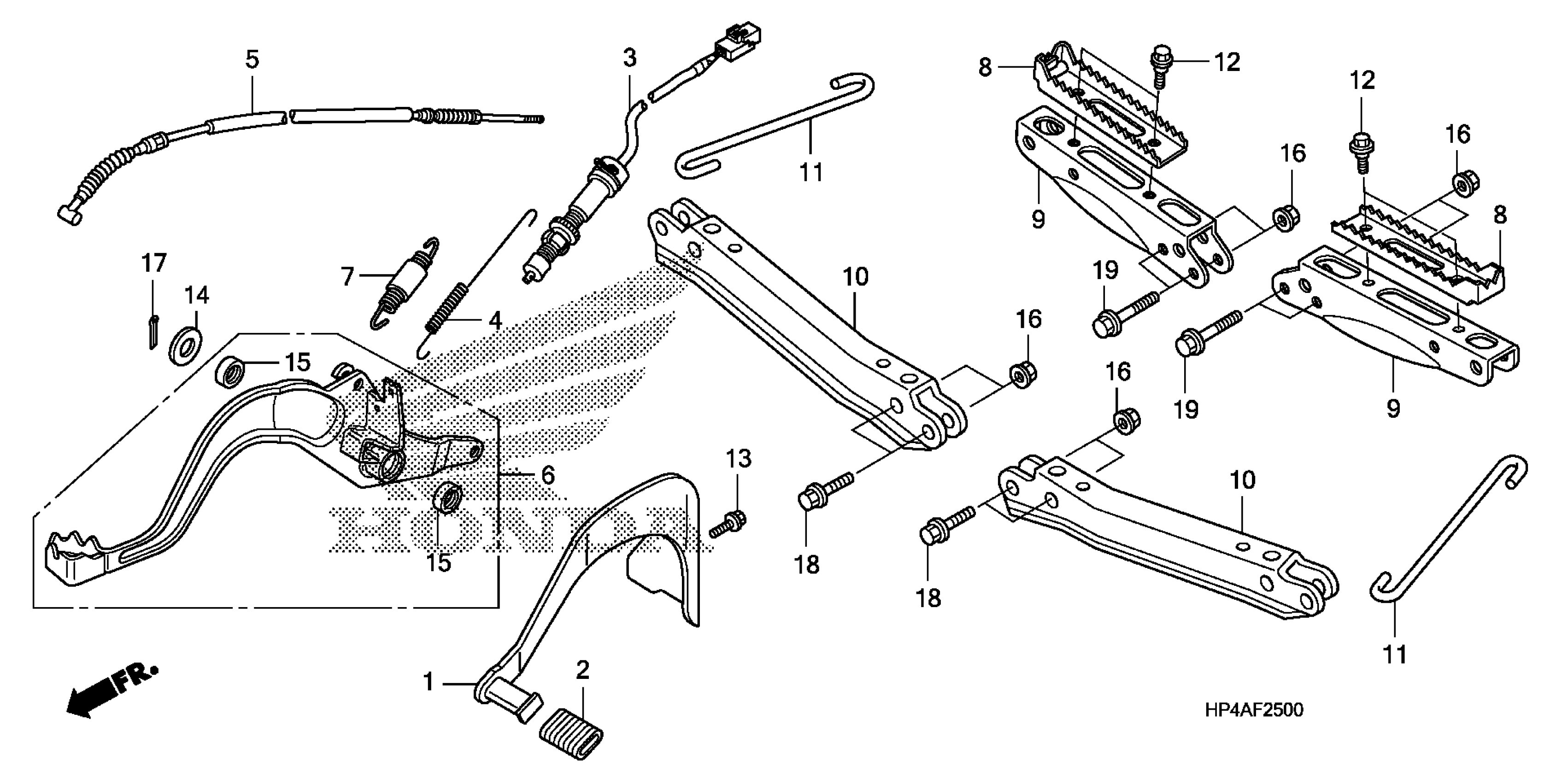

Honda TRX420FE2A (09) RANCHER ES, USA, VIN# 1HFTE357-94200001 TO 1HFTE357-94299999 PEDAL + STEP Diagram

SWITCH ASSY., RR. STOP

35350-HP7-A01

$49.34

SPRING, STOP SWITCH

35357-HP5-600

$2.87

CABLE, FOOT BRAKE

43470-HP5-601

$8.60

PEDAL ASSY., BRAKE

46510-HP5-600

$157.25

SPRING ASSY., RR. BRAKE PEDAL

46513-HP5-600

$7.89

STEP

50610-HP5-600

$21.01

BRACKET, STEP

50611-HN8-000

$26.69

BRACKET, CENTER SPLASH GUARD

50613-HP5-600

$25.94

STAY, CENTER SPLASH GUARD

61107-HP5-600

$2.54

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

WASHER (17.5MM)

90512-303-000

$1.63

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.52

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.52

NUT, FLANGE (8MM)

94050-08000

$0.87

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

PIN, SPLIT (3.0X45)

94201-30450

$0.96

BOLT, FLANGE (8X30)

95801-08030-00

$1.41

BOLT, FLANGE (8X45)

95801-08045-00

$1.62
