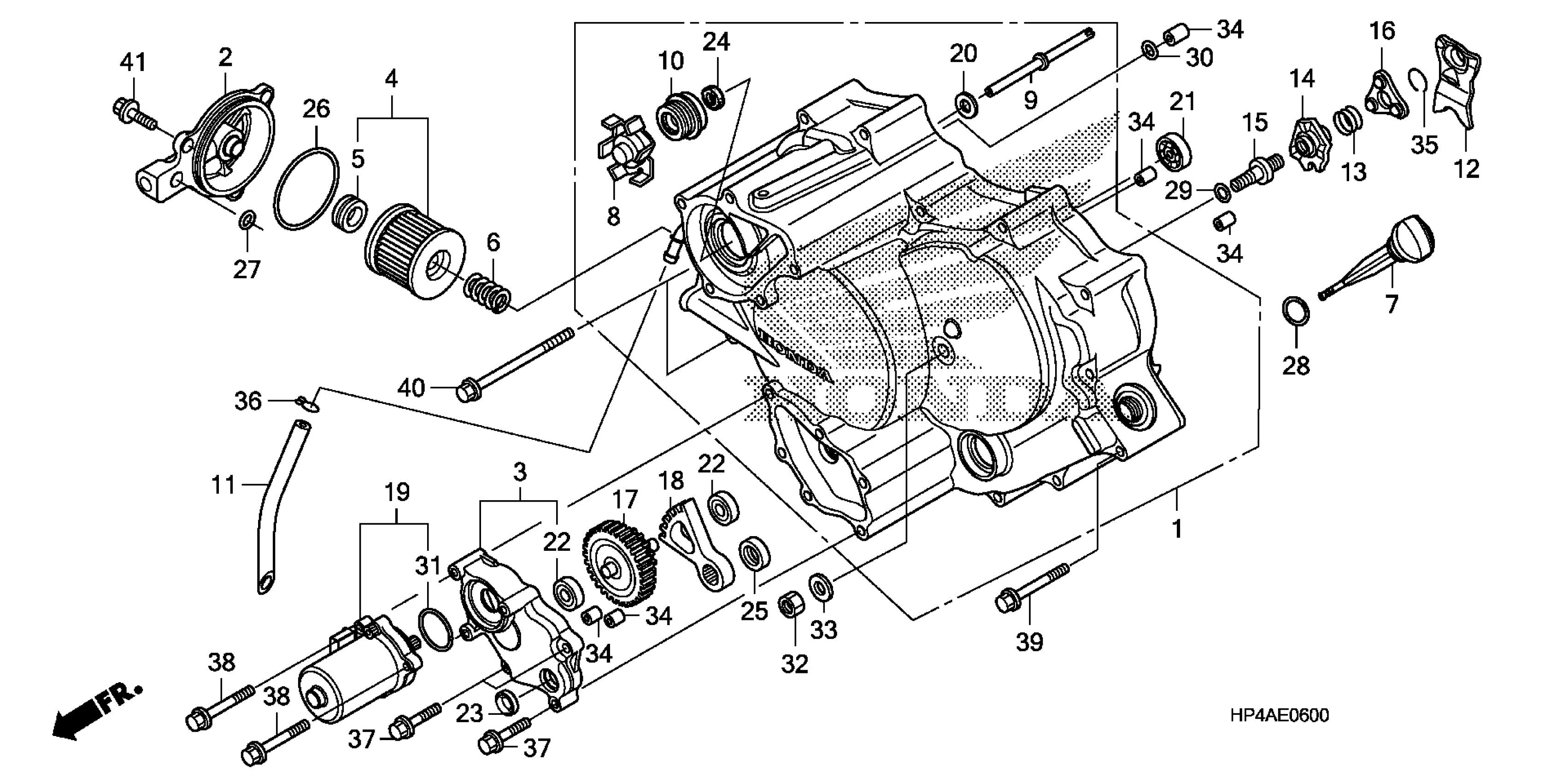

Honda TRX420FE2A (09) RANCHER ES, USA, VIN# 1HFTE357-94200001 TO 1HFTE357-94299999 FRONT CRANKCASE COVER Diagram

COVER ASSY., FR. CRANKCASE

11300-HP5-600

Unavailable

COVER, OIL FILTER

11333-HP0-A00

$46.08

COVER, REDUCTION GEAR

11335-HP5-600

$45.48

ELEMENT, OIL FILTER

15412-HM5-A10

$5.50

RUBBER, FILTER

15413-MC8-000

$3.35

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

DIPSTICK, OIL

15650-HP5-600

$11.41

IMPELLER, WATER PUMP

19215-MEG-300

$25.66

SHAFT, WATER PUMP

19216-HP5-600

$34.86

SEAL, MECHANICAL

19217-MAL-300

$53.03

HOSE, DRAIN

19507-HP5-600

$1.49

PLATE, CLUTCH CAM

22821-HP5-600

$17.05

SPRING, CAM PLATE SIDE

22825-HP5-600

$2.92

PLATE, CLUTCH LIFTER

22830-HP5-600

$18.02

BOLT, CLUTCH ADJUSTING

22841-HC4-000

$7.95

RETAINER, BALL

22860-HP5-600

$8.44

GEAR, REDUCTION SHAFT (10T/84T)

24615-HP5-601

Unavailable

GEAR, SHIFT REDUCTION (70T)

24617-HP5-601

Unavailable

MOTOR ASSY., CONTROL This part replaces 31300-HP5-601.

31300-HP5-602

$257.34

WASHER, THRUST (12X23X2)

90599-767-C10

$2.76

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$22.40

BEARING, RADIAL BALL (608ZZ)

91011-HP5-601

$6.05

OIL SEAL (9X18X7) (ARAI)

91201-HN8-003

$2.92

OIL SEAL (12X26X7) (ARAI)

91201-MV4-003

$5.14

OIL SEAL (12X22X5)

91201-965-000

$4.06

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (8.2X1.5)

91308-MC7-000

$2.31

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.18

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.81

NUT, HEX. (8MM)

94030-08000

$1.49

WASHER, PLAIN (8MM)

94102-08800

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

CLIP, TUBE (B12.5)

95002-02130

$1.49

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
