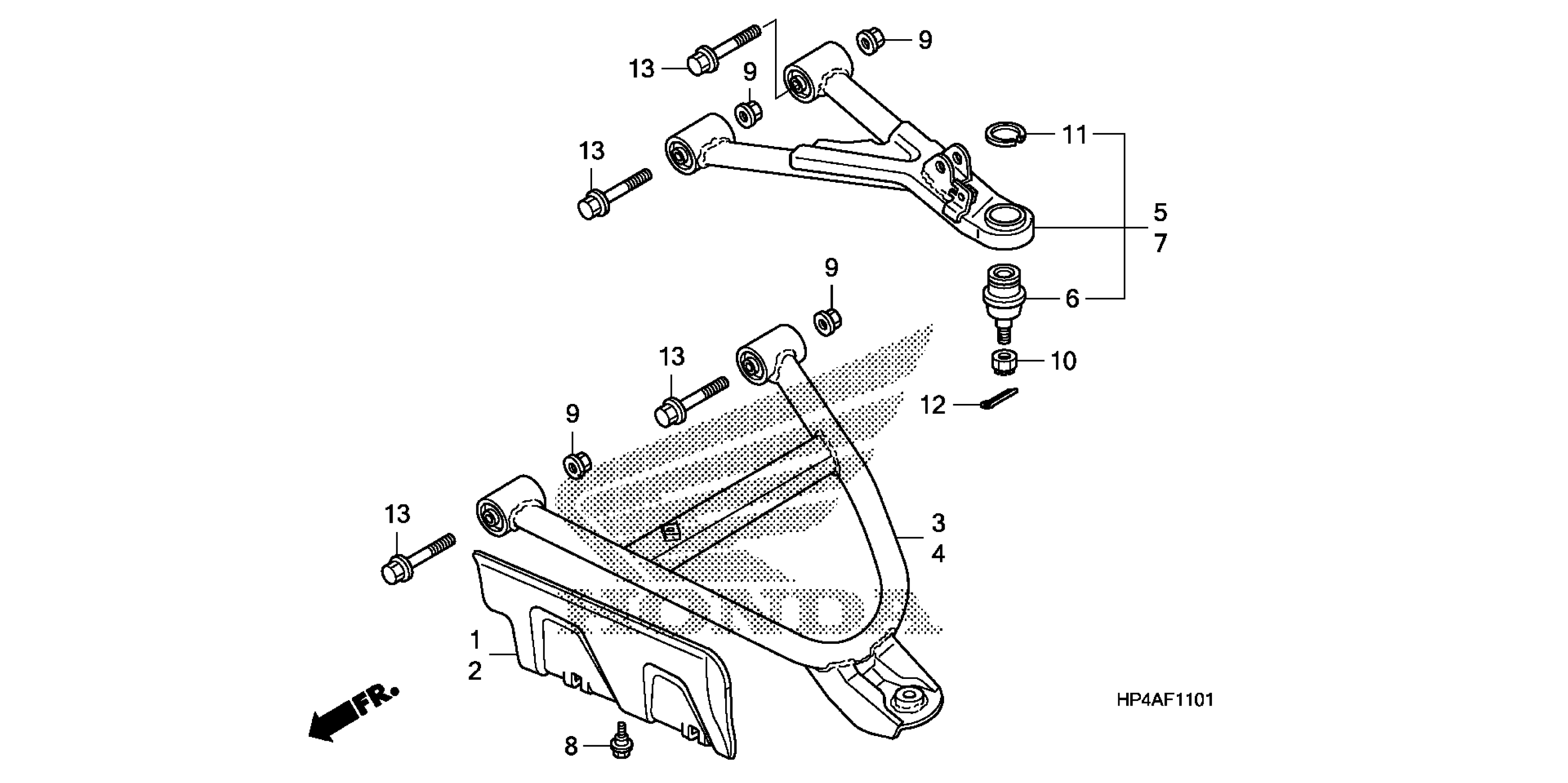

Honda TRX420FE2A (09) RANCHER ES, USA, VIN# 1HFTE357-94200001 TO 1HFTE357-94299999 FRONT ARM (4WD) Diagram

GUARD, R. FR. INBOARD

51315-HP5-600

$14.59

GUARD, L. FR. INBOARD

51325-HP5-600

$14.59

ARM ASSY., R. FR. (LOWER)

51350-HP5-600

Unavailable

ARM ASSY., L. FR. (LOWER)

51360-HP5-600

Unavailable

ARM ASSY., R. FR. (UPPER)

51370-HP7-A00

$116.67

JOINT A, ARM BALL

51375-HP5-601

$18.30

ARM ASSY., L. FR. (UPPER)

51380-HP7-A00

$127.28

BOLT, FLANGE (6MM)

90111-KT1-780

$13.35

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

NUT, CASTLE (12MM)

90310-HB9-000

$5.78

CIRCLIP, SPECIAL (OUTER) (34MM)

90603-HP5-600

$3.58

PIN, SPLIT (3.0X18)

94201-30180

$0.96

BOLT, FLANGE (10X62)

90151-HC5-000

$7.40

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.40
