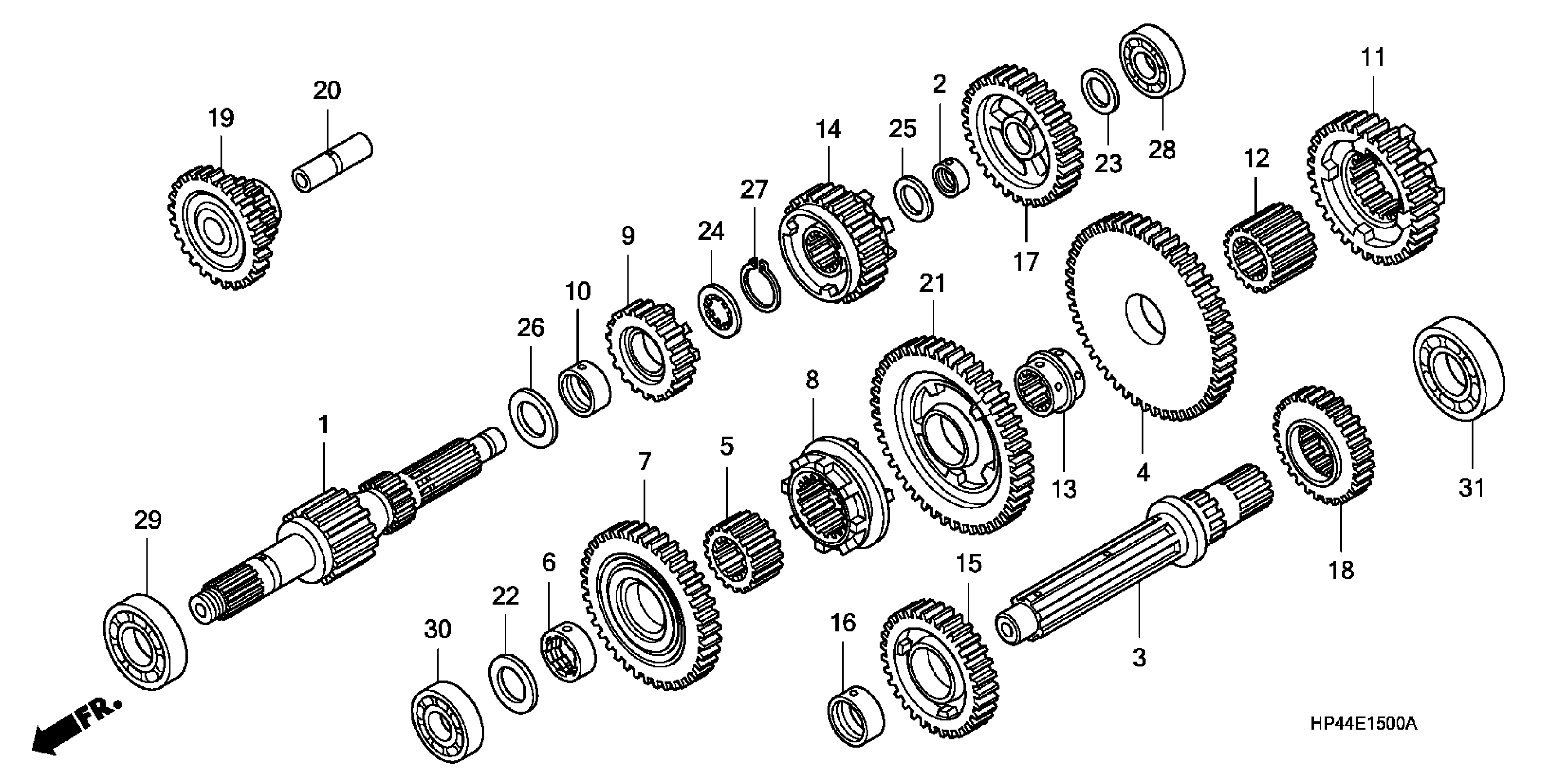

Honda TRX420FE2A (08) FOURTRAX RANCHER 4X4 ES, USA, VIN# 1HFTE357-84100001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (14T/17T)

23211-HP5-601

$220.79

2

BUSH (17MM)

23212-HP0-A00

$8.07

3

COUNTERSHAFT, TRANSMISSION

23221-HP5-600

$131.75

4

GEAR, COUNTERSHAFT FIRST (54T)

23411-HP5-600

$100.99

5

COLLAR A, SPLINE

23413-HP5-600

$25.97

6

BUSH, SPLINE (25MM)

23414-HA0-000

$22.78

7

GEAR, COUNTERSHAFT SECOND (38T)

04101-HP5-505

$173.49

7

GEAR, COUNTERSHAFT SECOND (38T) This part replaces 23431-HP5-600.

04101-HP5-505

$173.49

7

GEAR, COUNTERSHAFT SECOND (38T) This part replaces 23431-HP5-601.

04101-HP5-505

$173.49

8

SHIFTER, COUNTERSHAFT SECOND &REVERSE GEAR

04101-HP5-505

$173.49

8

GEAR, COUNTERSHAFT SECOND (38T) This part replaces 23432-HP5-600.

04101-HP5-505

$173.49

8

GEAR, COUNTERSHAFT SECOND (38T) This part replaces 23432-HP5-601.

04101-HP5-505

$173.49

9

DRUM, GEARSHIFT This part replaces 23441-HP5-600.

04104-HP5-505

$237.85

10

BUSH (22X25X10.2)

23442-HP5-600

$8.34

11

GEAR, COUNTERSHAFT THIRD (33T)

23451-HP5-A50

$91.30

11

GEAR, COUNTERSHAFT THIRD (33T) This part replaces 23451-HP5-600.

23451-HP5-A50

$91.30

11

GEAR, COUNTERSHAFT THIRD (33T) This part replaces 23451-HP5-601.

23451-HP5-A50

$91.30

12

COLLAR B, SPLINE

23452-HP5-600

$29.41

13

BUSH A, SPLINE (25MM)

23454-HA0-000

$34.18

14

GEAR, MAINSHAFT FOURTH (28T)

04104-HP5-505

$237.85

14

DRUM, GEARSHIFT This part replaces 23461-HP5-600.

04104-HP5-505

$237.85

14

DRUM, GEARSHIFT This part replaces 23461-HP5-601.

04104-HP5-505

$237.85

15

GEAR, COUNTERSHAFT FOURTH (33T)

23471-HP5-A50

$80.84

15

GEAR, COUNTERSHAFT FOURTH (33T) This part replaces 23471-HP5-600.

23471-HP5-A50

$80.84

15

GEAR, COUNTERSHAFT FOURTH (33T) This part replaces 23471-HP5-601.

23471-HP5-A50

$80.84

16

COLLAR (25X28X12.5)

23472-HP5-600

$10.59

17

GEAR, MAINSHAFT FIFTH (33T)

23481-HP5-600

$82.92

18

GEAR, COUNTERSHAFT FIFTH (28T)

23491-HP5-600

$73.93

19

GEAR, REVERSE IDLE (14T/25T)

23721-HP5-600

$71.77

20

SHAFT, REVERSE IDLE

23731-HB3-000

$24.61

21

GEAR, COUNTERSHAFT REVERSE (46T)

23751-HP5-600

$102.38

22

WASHER, THRUST (20MM)

90401-HP0-A00

$4.37

23

WASHER, SPECIAL (17MM)

90403-HN8-000

$2.90

24

WASHER, SPLINE (22MM)

90451-KY1-000

$4.20

25

WASHER, THRUST (17MM)

90452-GB4-770

$1.86

26

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

27

CIRCLIP (22MM)

90601-329-000

$2.67

28

BEARING, RADIAL BALL (6203)

91004-HC0-003

$34.32

29

BEARING, BALL (62/22) (NACHI) This part replaces 91002-PL0-008.

91002-PL0-018

$31.46

29

BEARING, BALL (62/22) (NACHI)

91002-PL0-018

$31.46

29

BEARING, BALL (62/22) (NACHI) This part replaces 91005-657-008.

91002-PL0-018

$31.46

30

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

31

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
