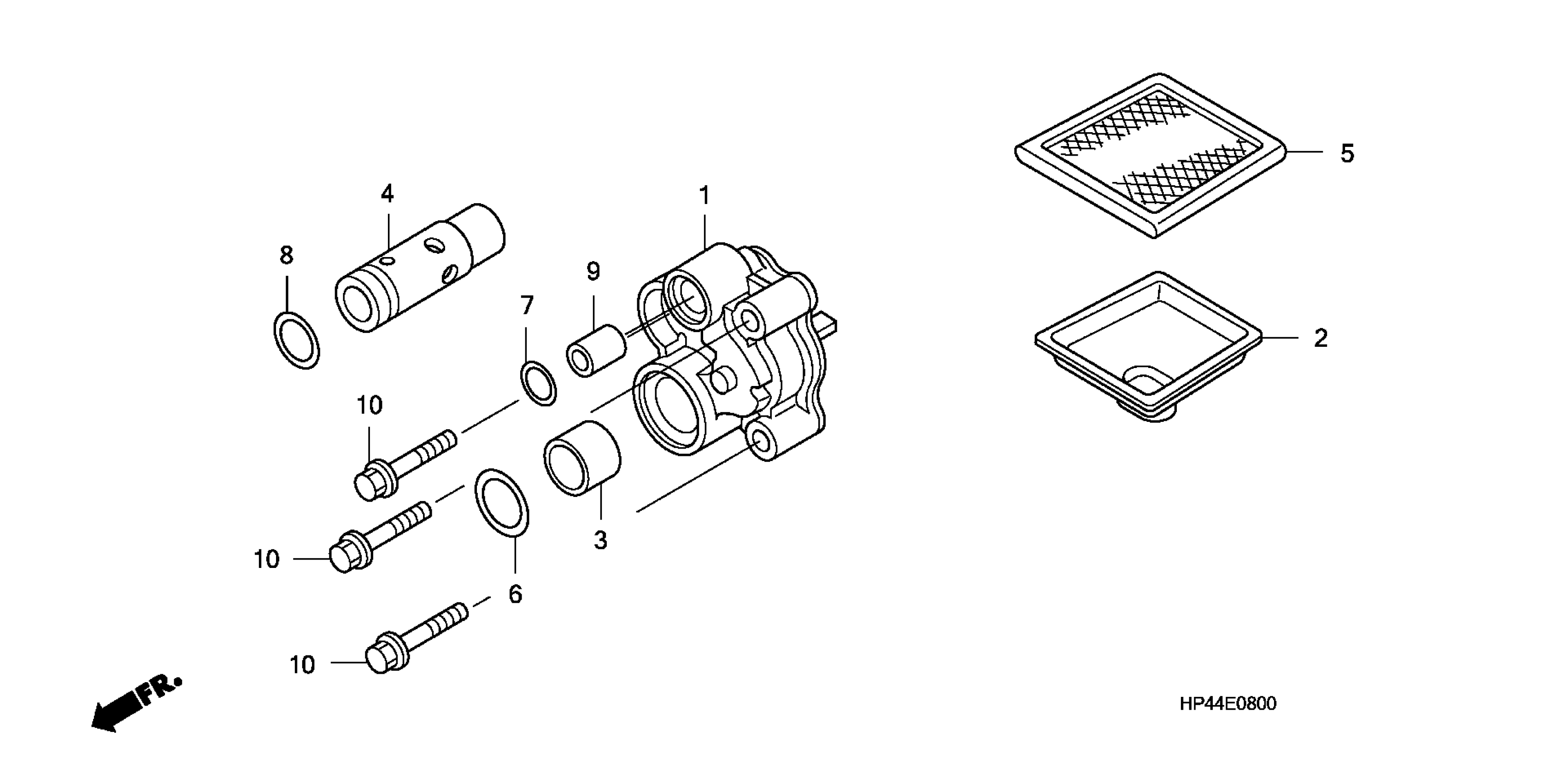

Honda TRX420FE2A (08) FOURTRAX RANCHER 4X4 ES, USA, VIN# 1HFTE357-84100001 OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY., OIL

15100-HP5-600

$61.69

2

STRAINER, OIL

15153-HP5-600

$7.10

3

COLLAR, O-RING

15155-HP0-A00

$3.01

4

VALVE ASSY., RELIEF

15220-HP5-600

$25.60

5

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$11.99

6

O-RING (15X2.5)

91302-377-000

$5.31

7

O-RING (10X2) (ARAI)

91304-HA5-003

$3.92

8

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

8

O-RING (14.8X2.2)

91313-MG7-004

$3.67

9

PIN, DOWEL (10X16)

94301-10160

$2.28

10

BOLT, FLANGE (6X35)

95801-06035-00

$1.49
