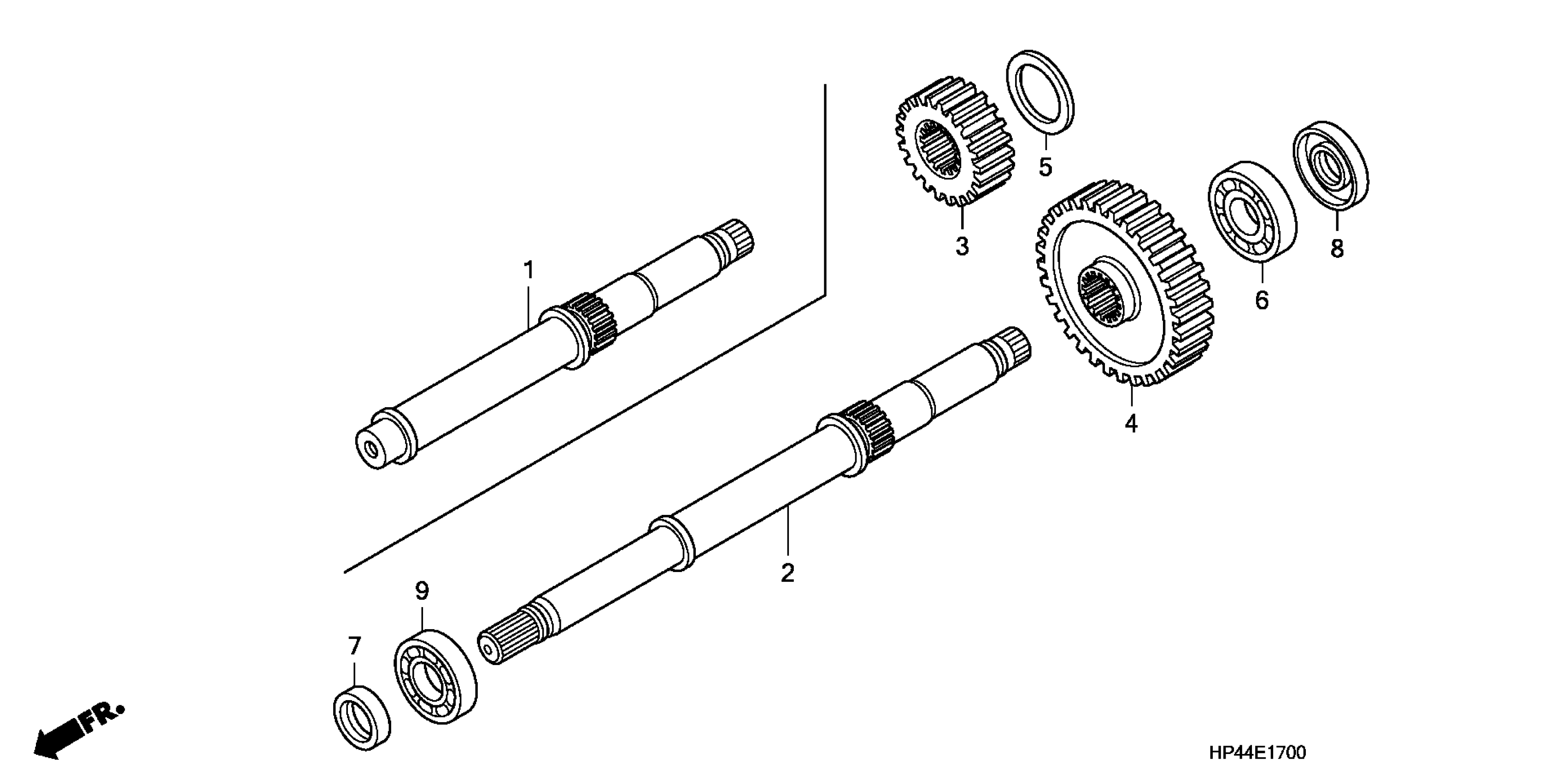

Honda TRX420FE2A (08) FOURTRAX RANCHER 4X4 ES, USA, VIN# 1HFTE357-84100001 FINAL SHAFT Diagram

#

Description

Price

2

SHAFT, FINAL

23611-HP5-600

$73.96

3

GEAR, FINAL DRIVE (22T)

23621-HP5-600

$27.96

4

GEAR, FINAL DRIVEN (40T)

23631-HP5-600

$54.24

5

WASHER C, THRUST (25MM)

90459-357-000

$3.44

6

BEARING, RADIAL BALL (6205)

96100-62050-00

$16.04

7

OIL SEAL (22X35X7)

91202-HP5-601

$7.09

8

OIL SEAL (25X45X7) (ARAI)

91204-MG3-003

$9.03

9

BEARING, RADIAL BALL (22X47X14)

91006-HP5-601

$10.87
