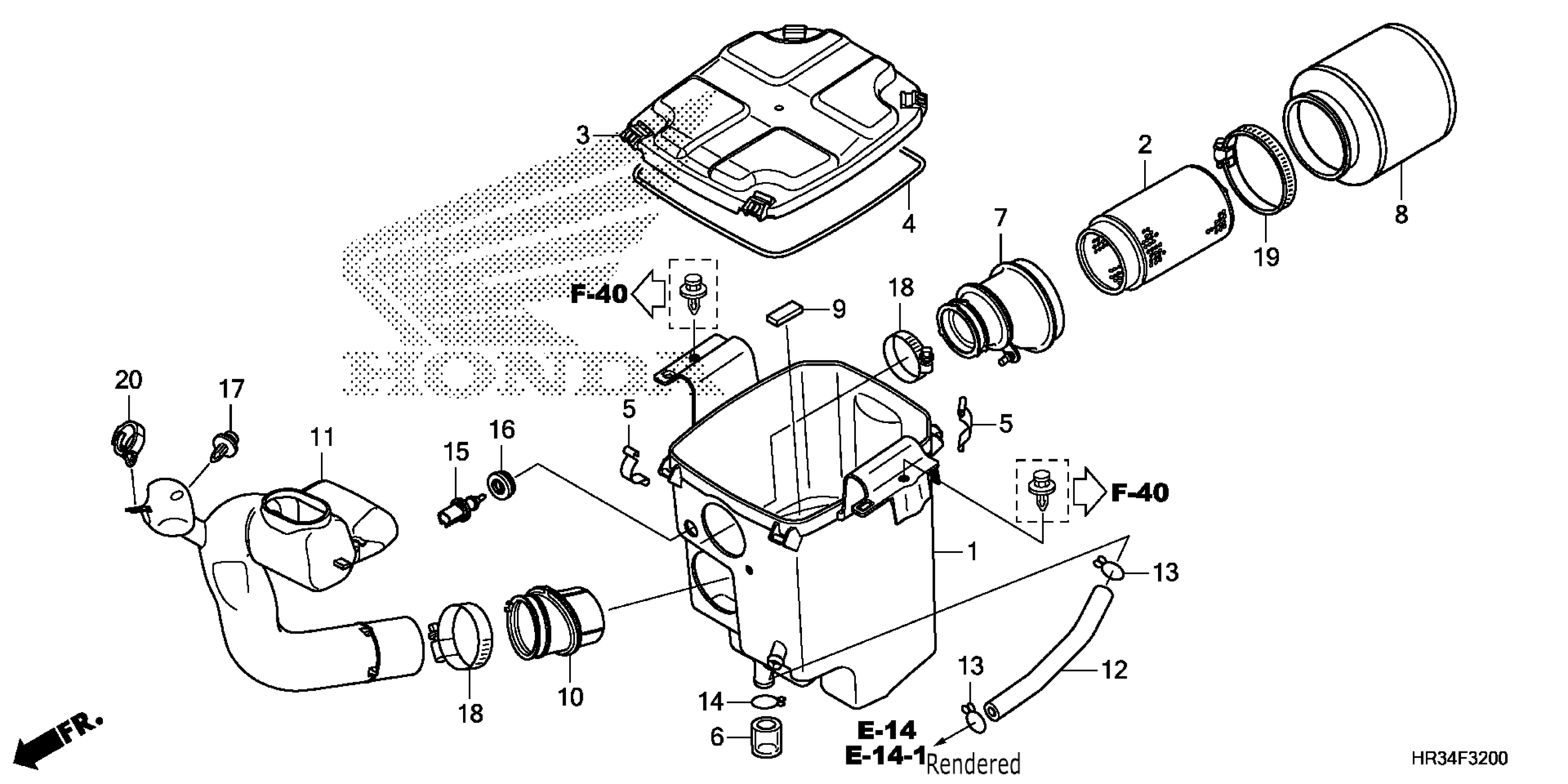

Honda TRX420FE1AC (14) TRX420FE1, USA, VIN# 1HFTE406-E4000001 AIR CLEANER Diagram

HOUSING, AIR CLEANER

17210-HR3-A20

$17.43

BODY, AIR CLEANER

17211-HP0-A00

$24.18

LID, AIR CLEANER

17217-HR3-A20

$4.74

SEAL, AIR CLEANER COVER

17219-HR3-A20

$4.88

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.87

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$7.07

TUBE, AIR CLEANER CONNECTING

17253-HR3-A20

$28.26

ELEMENT, AIR CLEANER

17254-HN1-000

$23.65

COVER, DUST

17256-HR3-A20

$1.49

TUBE, SNORKEL

17258-HR3-A20

$4.44

DUCT, SNORKEL

17259-HR3-A20

$45.90

TUBE, BREATHER

17366-HR3-A20

$14.96

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

SENSOR ASSY., AIR TEMPERATURE

37880-RE1-Z01

$36.44

GROMMET, TA SENSOR

37881-P2A-000

$4.47

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.51

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.70

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

$7.56
