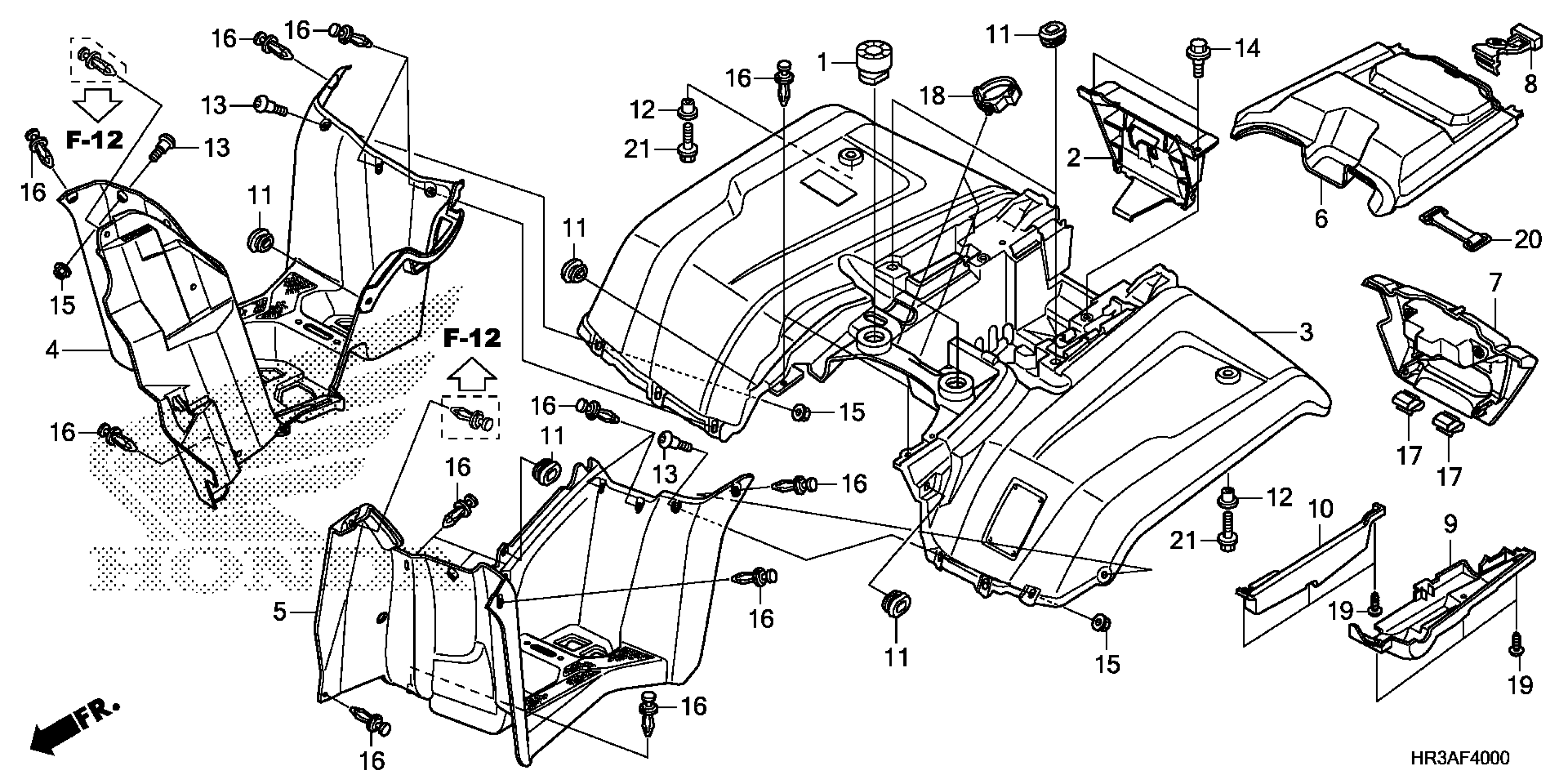

Honda TRX420FE12AC (15) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE407-F4100001 REAR FENDER Diagram

CUSHION, SEAT MOUNTING

77207-HA0-000

$7.14

HOLDER, BATTERY

80101-HR3-A20

$6.14

FENDER SET, RR. *YRA05L* (WL) (CLOSE RANGE CAMO) | Close range camo YRA05L

80110-HR3-B40ZB

$581.02

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HR3-A20ZA

$84.44

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HR3-A20ZA

$50.80

COVER, RR. FENDER *NH1* (BLACK)

80210-HR3-A20ZA

$62.16

LID, TOOL BOX *NH1* (BLACK)

80211-HR3-A20ZA

$4.74

BAND, TOOL BOX

80214-HM5-850

$2.56

PROTECTOR, RR. MUFFLER

80222-HR3-A20

$8.65

PROTECTOR, BATTERY (RR)

80223-HR3-A20

$11.36

GROMMET, SIDE COVER

83551-MA6-000

$3.35

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

BOLT, FLANGE (6MM)

90111-147-000

$2.75

NUT, FLANGE (6MM)

90302-187-000

$2.39

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP, CORD

90660-SB2-000

$8.58

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.44

SCREW, TAPPING (5X12)

93903-25220

$1.49

BAND B2, BATTERY

95012-13001

$5.28

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
