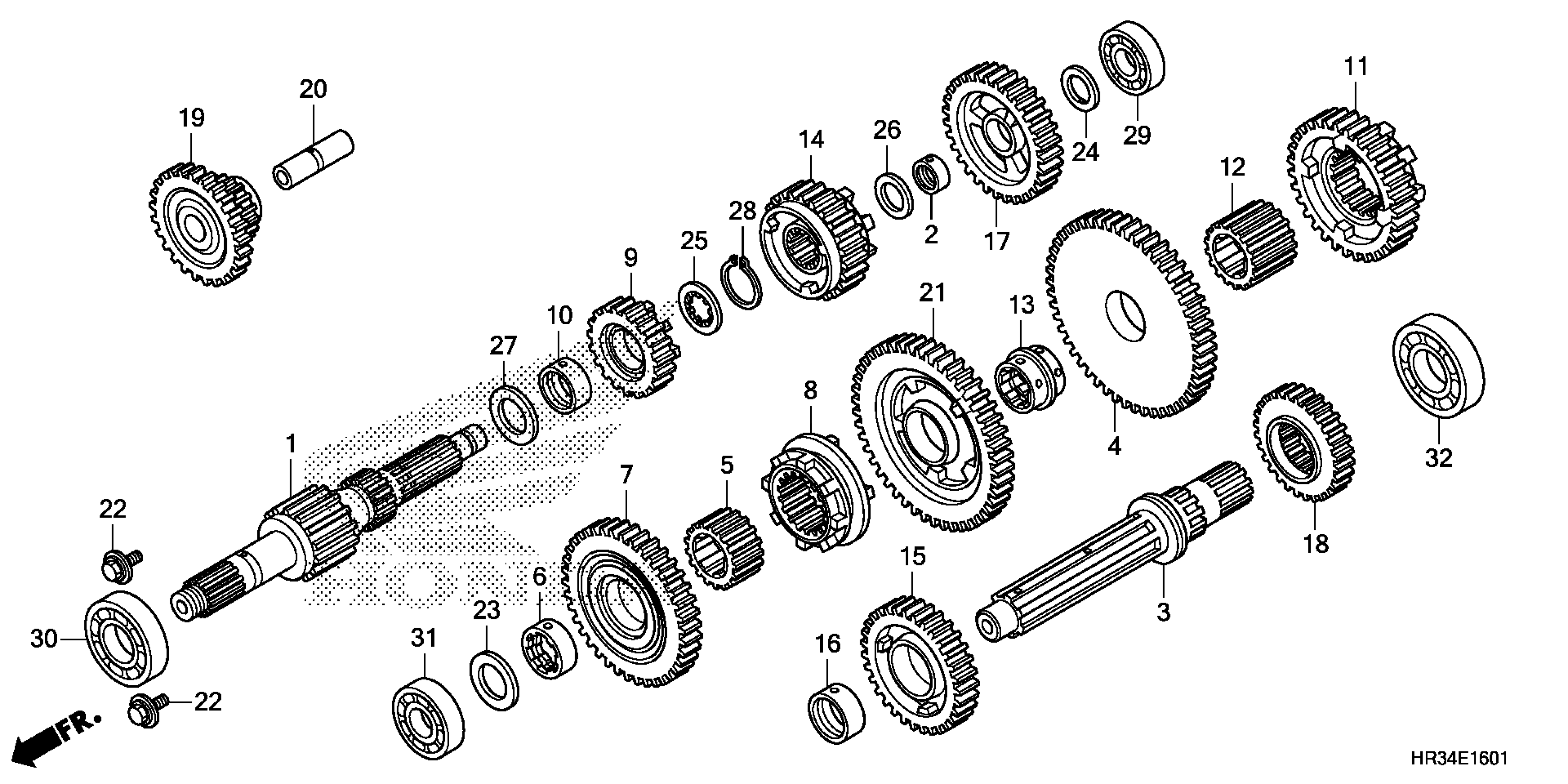

Honda TRX420FE12AC (14) TRX420FE1, USA, VIN# 1HFTE407-E4000001 TRANSMISSION (2) Diagram

MAINSHAFT, TRANSMISSION (14T/17T)

23211-HP5-601

$220.79

BUSH (17MM)

23212-HP0-A00

$8.07

COUNTERSHAFT

23221-HR0-F00

$127.34

GEAR, COUNTERSHAFT FIRST (54T)

23411-HP5-600

$100.99

COLLAR A, SPLINE

23413-HP5-600

$25.97

BUSH, SPLINE (25MM)

23414-HA0-000

$22.78

GEAR, COUNTERSHAFT SECOND (38T)

23431-HP5-A50

$87.83

SHIFTER, COUNTERSHAFT SECOND &REVERSE GEAR

23432-HP5-A50

$59.76

GEAR, MAINSHAFT THIRD (21T)

23441-HP5-A50

$79.06

BUSH (22X25X10.2)

23442-HP5-600

$8.34

GEAR, COUNTERSHAFT THIRD (33T)

23451-HP5-A50

$91.30

COLLAR B, SPLINE

23452-HP5-600

$29.41

BUSH, SPLINE

23454-HR0-F00

$170.38

GEAR, MAINSHAFT FOURTH (28T)

23461-HP5-A50

$91.78

GEAR, COUNTERSHAFT FOURTH (33T)

23471-HP5-A50

$80.84

COLLAR (25X28X12.5)

23472-HP5-600

$10.59

GEAR, MAINSHAFT FIFTH (33T)

23481-HP5-600

$82.92

GEAR, COUNTERSHAFT FIFTH (28T)

23491-HP5-600

$73.93

GEAR, REVERSE IDLE (14T/25T)

23721-HP5-600

$71.77

SHAFT, REVERSE IDLE

23731-HB3-000

$24.61

GEAR, COUNTERSHAFT REVERSE (46T)

23751-HP5-600

$102.38

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

WASHER, THRUST (20MM)

90401-HP0-A00

$4.37

WASHER, SPECIAL (17MM)

90403-HN8-000

$2.90

WASHER, SPLINE (22MM)

90451-KY1-000

$4.20

WASHER, THRUST (17MM)

90452-GB4-770

$1.86

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

BEARING, RADIAL BALL (6203)

91004-HC0-003

$34.32

BEARING, BALL (62/22) (NACHI) This part replaces 91002-PL0-008.

91002-PL0-018

$31.46

BEARING, BALL (62/22) (NACHI)

91002-PL0-018

$31.46

BEARING, BALL (62/22) (NACHI) This part replaces 91005-657-008.

91002-PL0-018

$31.46

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
