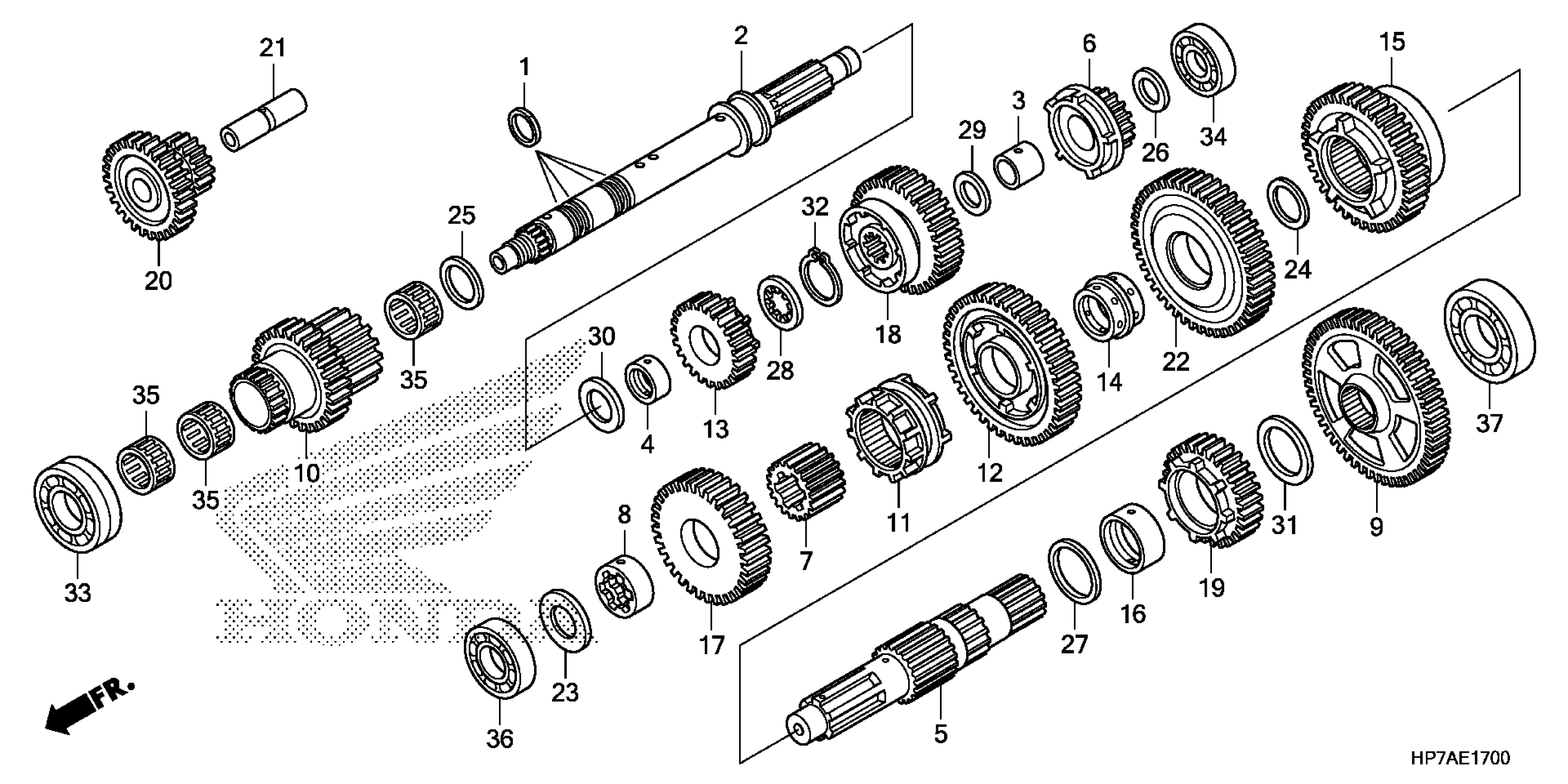

Honda TRX420FAAC (14) TRX420FA, USA, VIN# 1HFTE370-E4500001 TRANSMISSION Diagram

RING, SEALING (23MM)

22814-HP7-A01

$2.80

MAINSHAFT

23210-HP7-A00

$207.00

BUSH (17MM)

23212-HP7-A00

$10.31

BUSH A (22MM)

23214-HA0-000

$15.74

COUNTERSHAFT

23221-HP7-A00

$111.99

GEAR, MAINSHAFT FIRST (17T)

23411-HP7-A00

$99.00

COLLAR A, SPLINE

23413-HP7-A00

$21.50

BUSH, SPLINE (25MM)

23414-HA0-000

$22.32

GEAR, COUNTERSHAFT FIRST (52T)

23421-HP7-A00

$81.43

GEAR, MAINSHAFT SECOND & FOURTH (19T/28T)

23431-HP7-A00

$111.50

SHIFTER, COUNTERSHAFT SECOND &FOURTH GEAR (5AT)

23432-HP7-A00

Unavailable

GEAR, COUNTERSHAFT SECOND (41T)

23441-HP7-A00

$84.18

GEAR, MAINSHAFT THIRD (24T)

23451-HP7-A00

$78.56

BUSH, REVERSE GEAR (HIGH)

23454-HN2-000

$17.71

GEAR, COUNTERSHAFT THIRD (37T)

23461-HP7-A00

$83.82

COLLAR (28MM)

23472-MT3-000

$25.57

GEAR, COUNTERSHAFT FOURTH (33T)

23481-HP7-A00

$82.90

GEAR, MAINSHAFT FIFTH (33T)

23491-HP7-A00

$93.87

GEAR, COUNTERSHAFT FIFTH (28T)

23511-HP7-A00

$74.88

GEAR, REVERSE IDLE (27T/16T)

23721-HP7-A00

$55.26

SHAFT, REVERSE IDLE

23731-HP7-A00

$14.28

GEAR, REVERSE COUNTER (45T)

23751-HP7-A00

$90.94

WASHER, THRUST (20MM)

90401-HP0-A00

$4.17

WASHER (25X32X1.0)

90401-HP1-670

$2.65

WASHER, THRUST (23MM)

90401-HP7-A00

$2.62

WASHER, SPECIAL (17MM)

90403-HN8-000

$2.68

WASHER, THRUST (28MM)

90405-HP7-A00

$2.62

WASHER, SPLINE (22MM)

90451-KY1-000

$3.88

WASHER, THRUST (17MM)

90454-KF0-000

$4.19

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.65

WASHER, THRUST (28MM)

90554-MCA-000

$2.21

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.47

BEARING, RADIAL BALL (35X62X18)

91005-HP7-A01

$30.99

BEARING, RADIAL BALL (6203)

91006-HP7-A01

$14.44

BEARING, NEEDLE (23X27X13)

91021-HP7-A01

$6.25

BEARING, RADIAL BALL (6204)

96100-62040-00

$11.23

BEARING, RADIAL BALL (6305)

96100-63050-00

$14.02
