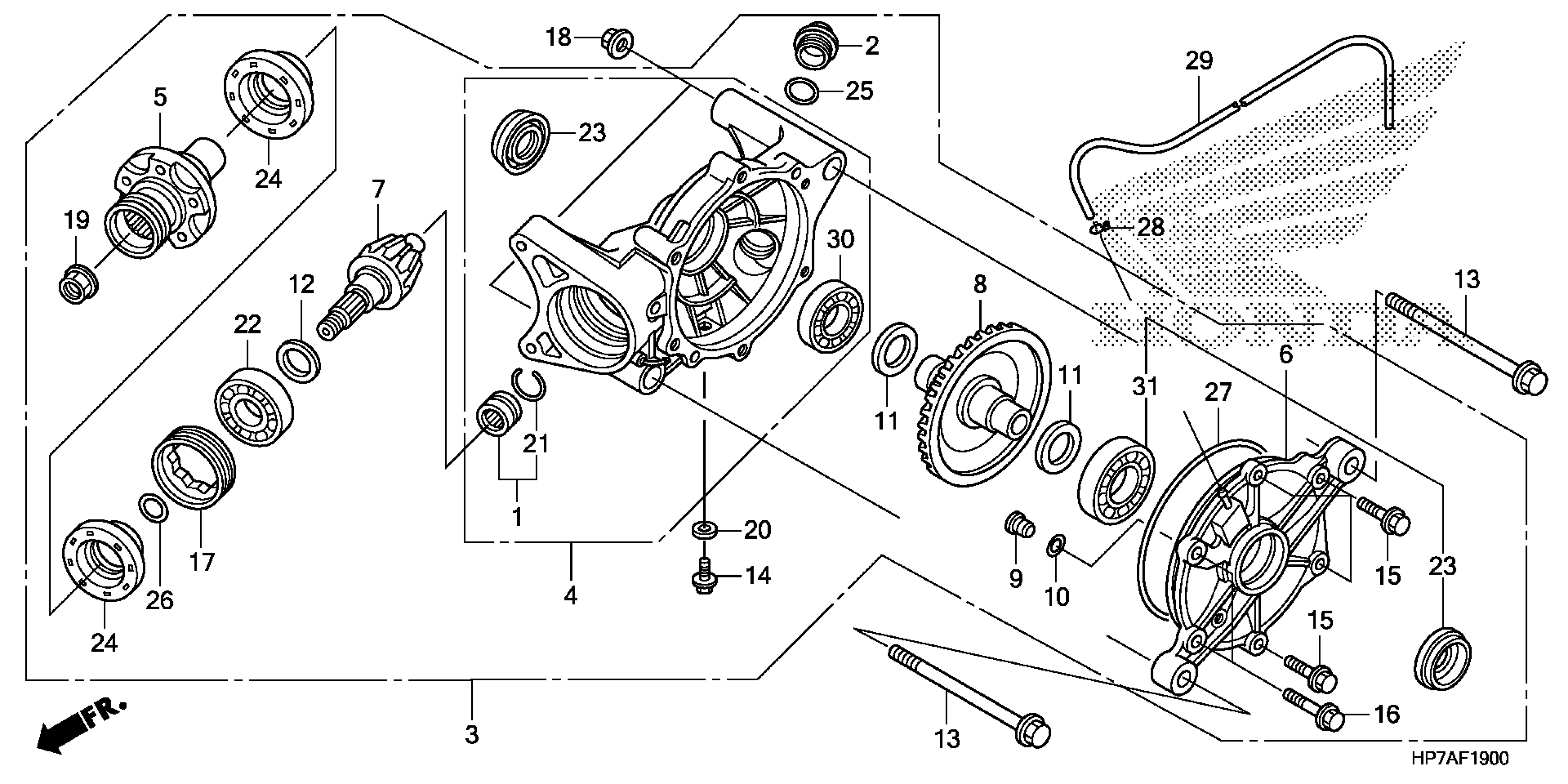

Honda TRX420FAAC (14) TRX420FA, USA, VIN# 1HFTE370-E4500001 REAR FINAL GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06911-HN8-000

$27.48

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

GEAR ASSY., RR. FINAL

41300-HP7-A00

$807.10

4

CASE SUB-ASSY., RR. FINAL GEAR

41311-HP7-A00

$209.87

5

JOINT, RR. PINION

41315-HN8-A40

$68.78

6

COVER SUB-ASSY., RR. FINAL GEAR

41331-HP7-A00

$102.79

7

GEAR, RR. PINION (13T)

41421-HN8-A40

$131.18

8

GEAR, RR. RING (41T)

41431-HN8-000

$206.80

9

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

10

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

10

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

11

SHIM A, PINION GEAR (1.64)

41447-HM8-000

$7.99

11

SHIM B, PINION GEAR (1.70)

41448-HM8-000

$7.99

11

SHIM C, PINION GEAR (1.76)

41449-HM8-000

$7.99

11

SHIM D, PINION GEAR (1.82)

41451-HM8-000

$8.79

11

SHIM E, PINION GEAR (1.88)

41452-HM8-000

$7.99

11

SHIM F, PINION GEAR (1.94)

41453-HM8-000

$8.79

11

SHIM G, PINION GEAR (2.00)

41454-HM8-000

$8.79

11

SHIM H, PINION GEAR (2.06)

41455-HM8-000

$7.99

11

SHIM I, PINION GEAR (2.12)

41456-HM8-000

$8.79

11

SHIM J, PINION GEAR (2.18)

41457-HM8-000

$8.79

12

SHIM A, PINION GEAR (1.82)

41450-MG8-000

$7.46

12

SHIM B, PINION GEAR (1.88)

41451-MG8-000

$7.46

12

SHIM C, PINION GEAR (1.94)

41452-MG8-000

$7.11

12

SHIM D, PINION GEAR (2.00)

41453-MG8-000

$7.11

12

SHIM E, PINION GEAR (2.06)

41454-MG8-000

$7.11

12

SHIM F, PINION GEAR (2.12)

41455-MG8-000

$7.11

12

SHIM G, PINION GEAR (2.18)

41456-MG8-000

$7.11

13

BOLT, FLANGE (10X153)

90103-MY1-000

$14.42

14

BOLT, SEALING (8MM)

90109-371-000

$2.58

15

BOLT, FLANGE (8X27)

90133-HP5-600

$2.67

16

BOLT, FLANGE (10X35)

90134-HP5-600

$3.51

17

NUT, LOCK (64MM)

90242-MB0-000

$32.52

18

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

19

NUT, HEX. (16MM)

90381-HA0-000

$7.88

20

WASHER (8MM)

90471-580-000

$2.92

21

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.97

22

BEARING, RADIAL BALL (6305)

91061-MB0-005

$125.16

22

BEARING, RADIAL BALL (6305) This part replaces 91061-MG8-005.

91061-MB0-005

$125.16

23

OIL SEAL (28X55X7)

91203-HN8-003

$8.59

24

OIL SEAL (33X70X8)

91251-HN8-003

$14.77

25

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

26

O-RING (19X3) (NOK)

91312-KE7-003

$2.61

27

O-RING (136X2)

91352-HP5-601

$10.52

28

CLIP, TUBE (C6.5)

95002-35000

$1.49

29

BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M)

95005-35001-30M

$8.63

30

BEARING, RADIAL BALL (6006)

96100-60063-00

$15.03

31

BEARING, RADIAL BALL (6206)

96100-62063-00

$19.49
