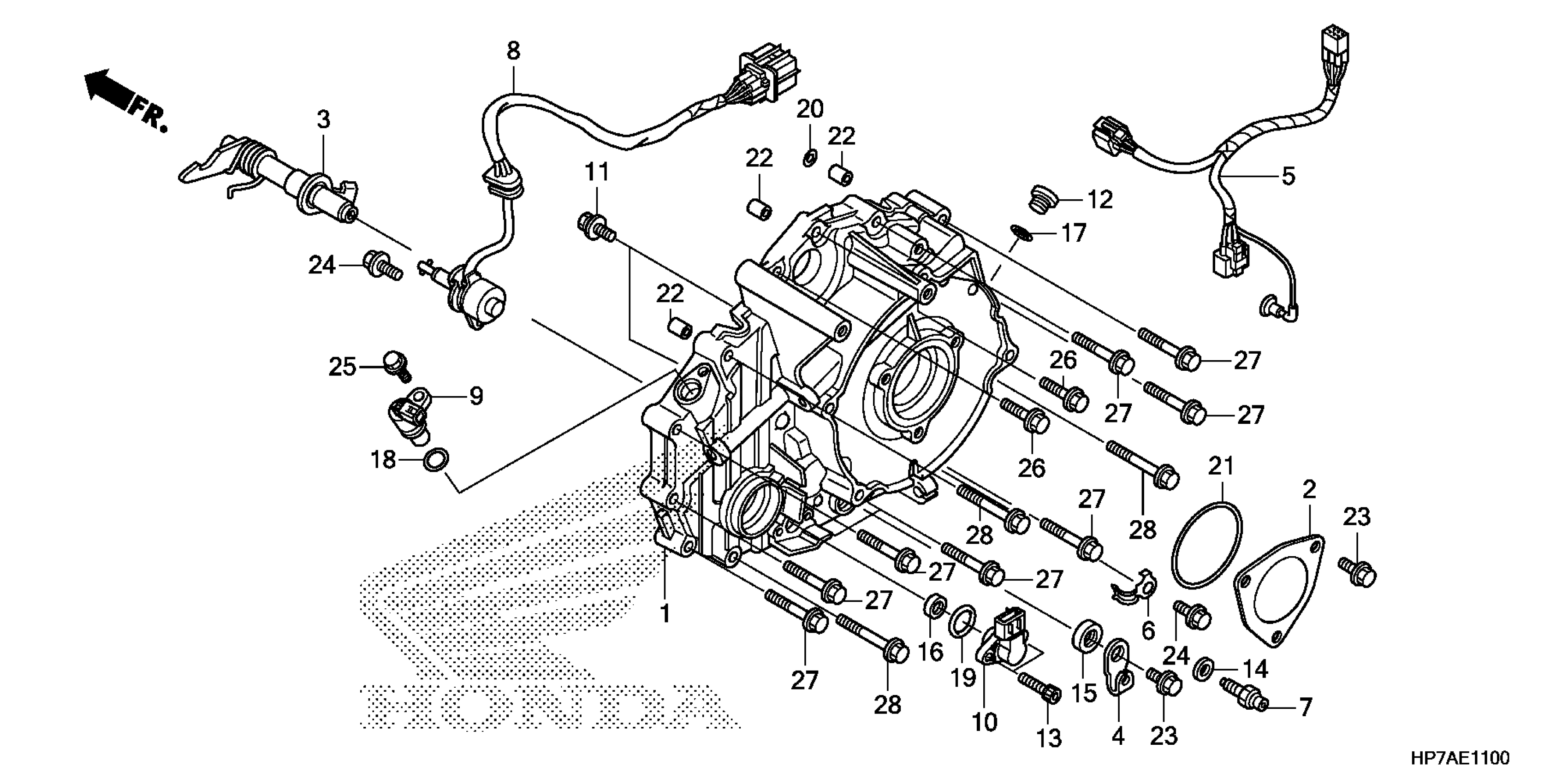

Honda TRX420FAAC (14) TRX420FA, USA, VIN# 1HFTE370-E4500001 REAR CRANKCASE COVER Diagram

#

Description
Price

1

COVER, RR. CRANKCASE

11340-HP7-A00

Unavailable

2

CAP, RR. COVER

11342-HP5-600

$2.85

3

SHAFT, REVERSE STOPPER

24860-HP7-A00

$38.71

4

LEVER, REVERSE STOPPER

24865-HP5-600

$4.45

5

SUB-HARNESS, ENGINE This part replaces 32101-HP7-A00.

32101-HP7-A01

$43.27

5

SUB-HARNESS, ENGINE

32101-HP7-A01

$43.27

6

CLIP, ALTERNATOR WIRE

32921-HN5-670

$3.88

7

SWITCH ASSY., NEUTRAL

35600-HN7-003

$17.60

8

SWITCH ASSY., DRUM POSITION

35759-HP7-A01

$118.27

9

SENSOR ASSY., SPEED (TDK-EPC) This part replaces 37700-HP5-601.

37700-KZR-601

$39.56

9

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$39.56

10

SENSOR ASSY., ANGLE This part replaces 38800-HP0-A11.

38800-HR3-A21

$23.60

10

SENSOR ASSY., ANGLE

38800-HR3-A21

$23.60

11

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$4.76

12

CAP (14MM)

90084-KY2-000

$14.34

13

BOLT, SOCKET (5X20)

90116-HP5-600

$2.88

14

WASHER, OIL BOLT

90545-300-000

$3.72

15

OIL SEAL (12X22X5)

91201-965-000

$3.77

16

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.80

16

OIL SEAL (8X16X6) This part replaces 91208-689-005.

91254-792-003

$2.80

16

OIL SEAL (8X16X6)

91254-792-003

$2.80

17

O-RING (13.8X2.5)

91303-377-000

$3.18

18

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.61

19

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.48

20

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$1.99

21

O-RING (58X3) (ARAI)

91351-ZV4-003

$2.71

22

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

23

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

24

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

25

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48

26

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

27

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.71

28

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$1.97
