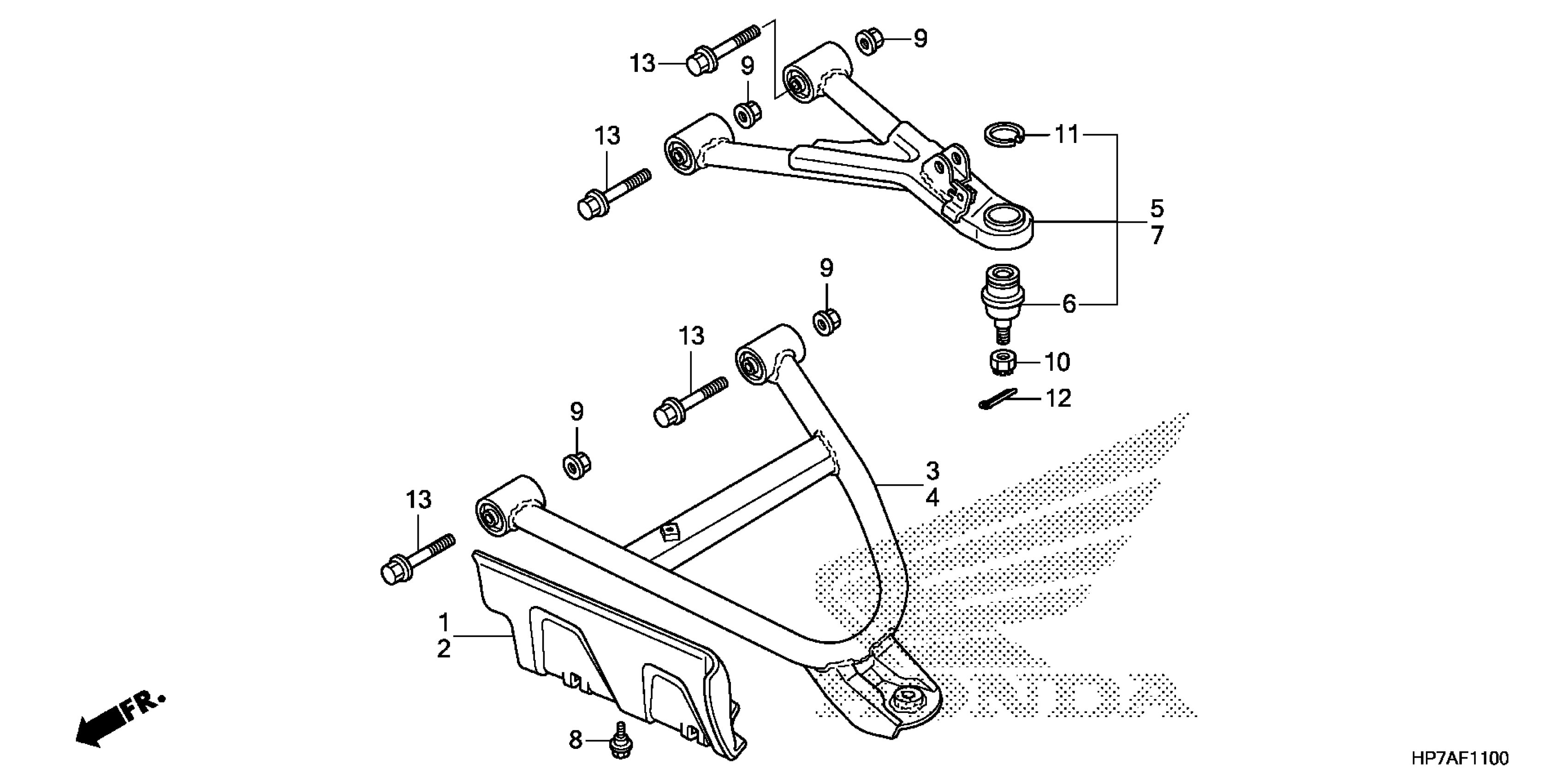

Honda TRX420FAAC (14) TRX420FA, USA, VIN# 1HFTE370-E4500001 FRONT ARM Diagram

#

Description

Price

1

GUARD, R. FR. INBOARD

51315-HR0-F00

$3.67

2

GUARD, L. FR. INBOARD

51316-HR0-F00

$3.67

3

ARM ASSY., R. FR. (LOWER)

51350-HP5-600

Unavailable

4

ARM ASSY., L. FR. (LOWER)

51360-HP5-600

Unavailable

5

ARM ASSY., R. FR. (UPPER)

51370-HP7-A00

$113.75

6

JOINT A, ARM BALL

51375-HP5-601

$17.90

7

ARM ASSY., L. FR. (UPPER)

51380-HP7-A00

$125.43

8

BOLT, FLANGE (6MM)

90111-KT1-780

$13.05

9

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

10

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

11

CIRCLIP, SPECIAL (OUTER) (34MM)

90603-HP5-600

$3.49

12

PIN, SPLIT (3.0X18)

94201-30180

$0.94

13

BOLT, FLANGE (10X62) BOLT, FLANGE (10X65)

90151-HC5-000

$7.22

13

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.22
