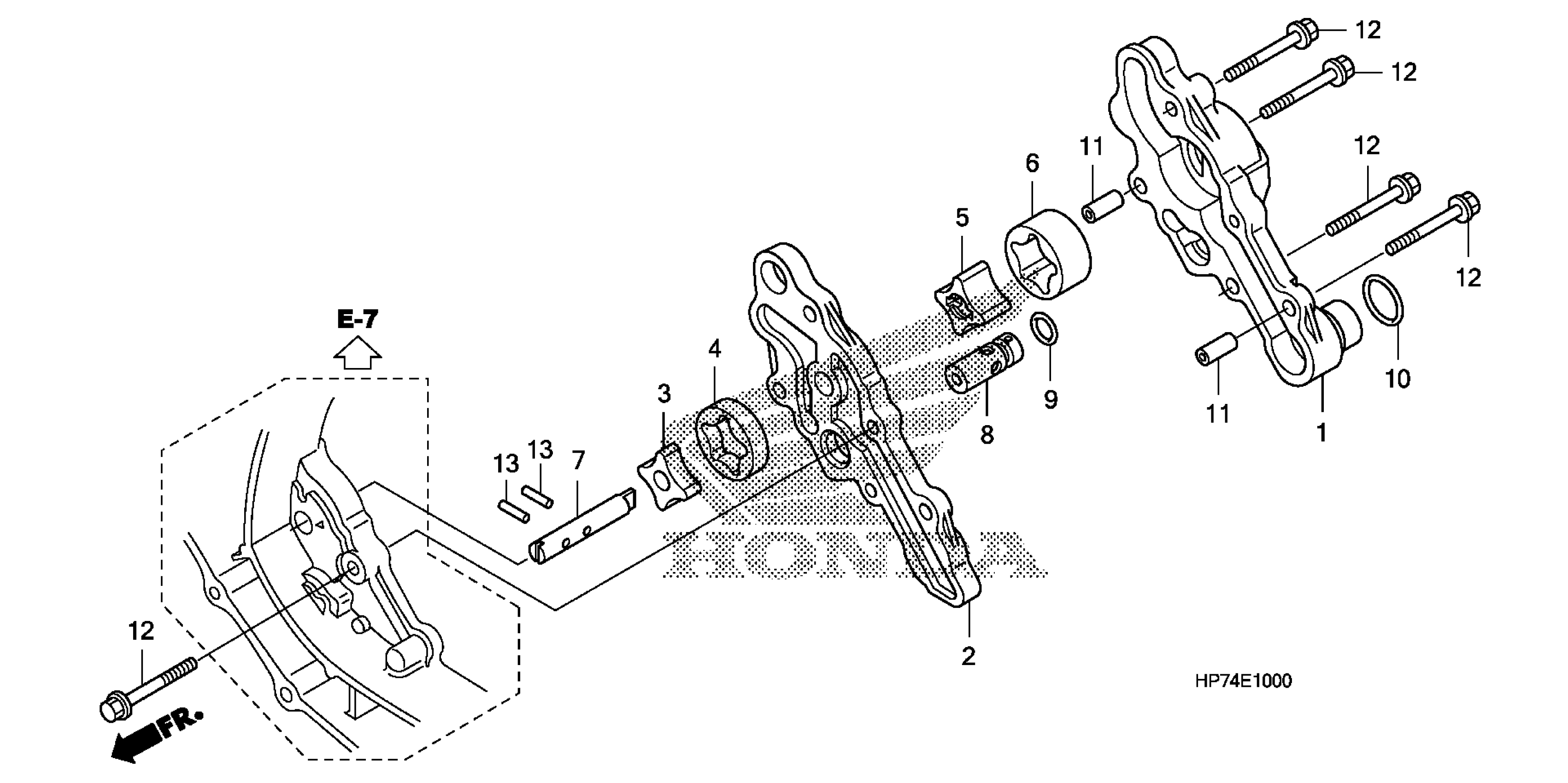

Honda TRX420FAA (11) FOURTRAX RANCHER AT, USA, VIN# 1HFTE370-B4200001 TO 1HFTE370-B4299999 OIL PUMP Diagram

#

Description

Price

1

BODY A, OIL PUMP

15101-HP7-A00

$22.65

2

BODY B, OIL PUMP

15102-HP7-A00

$12.56

3

ROTOR A, OIL PUMP (INNER)

15122-HN2-003

$19.89

4

ROTOR A, OIL PUMP (OUTER)

15123-HN2-003

$21.93

5

ROTOR C, OIL PUMP (INNER)

15128-HP7-A01

$9.22

6

ROTOR C, OIL PUMP (OUTER)

15129-HP7-A01

$14.88

7

SHAFT, OIL PUMP

15132-HP7-A00

$10.94

8

VALVE ASSY., RELIEF

15220-HP7-A00

$18.13

9

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

9

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

10

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$3.13

11

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

12

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

13

ROLLER (4X15.8)

96220-40158

$1.49
