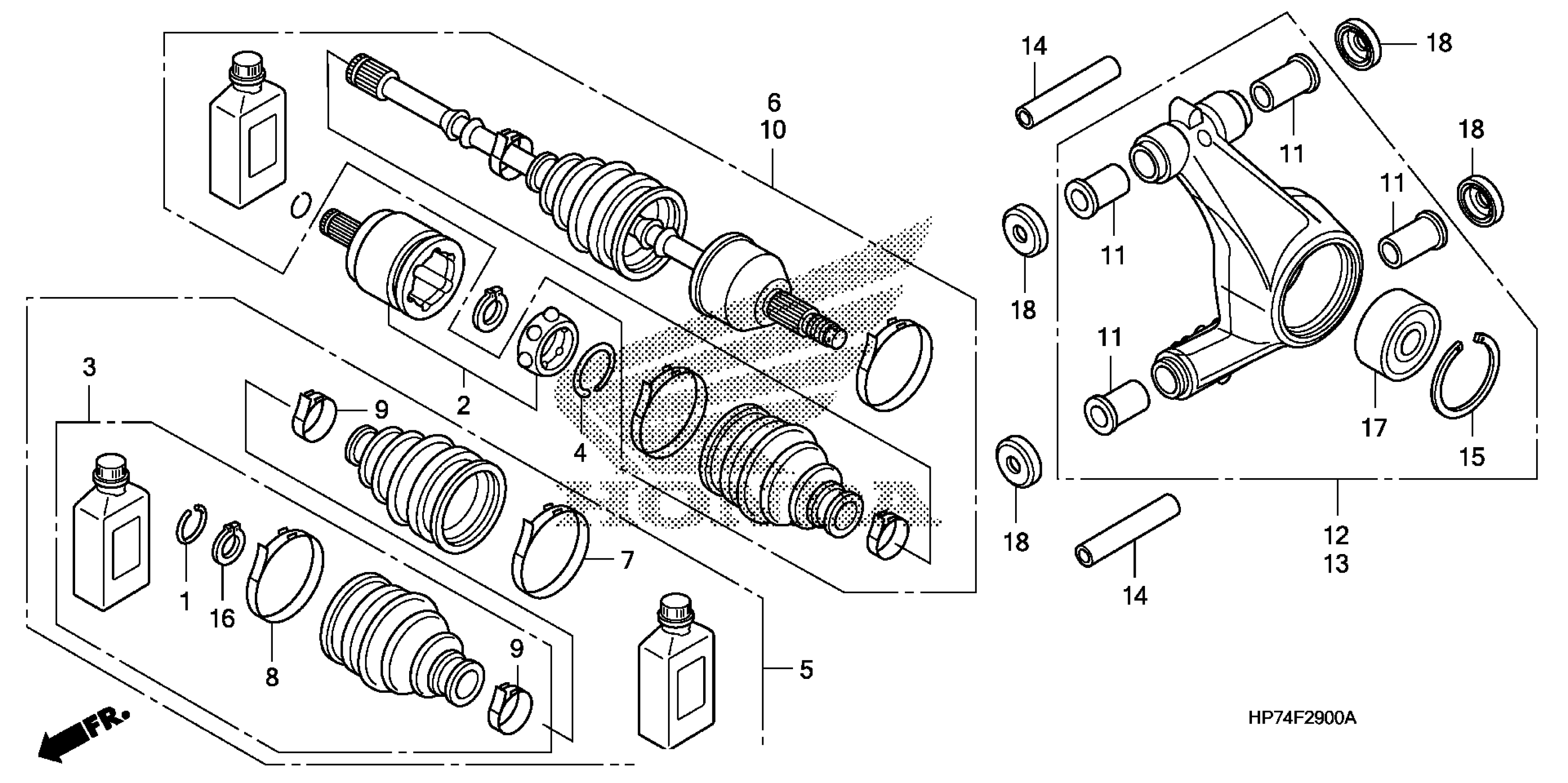

Honda TRX420FAA (10) FOURTRAX RANCHER AT, USA, VIN# 1HFTE370-A4100001 TO 1HFTE370-A4149999 REAR KNUCKLE@REAR DRIVESHAFT Diagram

RING, SNAP

42206-HN8-003

$1.30

JOINT, INBOARD

42220-HP7-A01

$127.22

BOOT SET, INBOARD (MSDS)

42230-HP7-A01

$50.10

RING A, INBOARD SNAP (R. SIDE)

42231-HP7-A01

$0.91

BOOT SET (MSDS)

42240-HP7-A01

$49.62

SHAFT SET, R. RR. DRIVE (MSDS)

42250-HP7-A01

$173.36

BAND, OUTBOARD BOOT

42336-HP7-A01

$6.58

BAND, INBOARD BOOT (R. SIDE)

42337-HP7-A01

$6.78

BAND, SHAFT BOOT (DOUBLE ROLLED BAND) This part replaces 42339-SJ6-003.

44329-SV4-305

$16.04

BAND, SHAFT BOOT (DOUBLE ROLLED BAND)

44329-SV4-305

$16.04

SHAFT SET, L. RR. DRIVE (MSDS)

42350-HP7-A01

$173.32

BUSH, ARM (UPPER)

51108-HP0-A00

$15.34

KNUCKLE SUB-ASSY., R. RR.

52205-HP7-A00

$123.90

KNUCKLE SUB-ASSY., L. RR.

52255-HP7-A00

$123.90

COLLAR, KNUCKLE

52464-HP7-A00

$7.06

CIRCLIP, SPECIAL (INNER) (62)

90651-HP6-A00

$7.12

CIRCLIP (R. SIDE)

90653-HP7-A01

$1.09

BEARING, ANGULAR BALL (34X61X27) (NTN)

91051-HP6-A01

$52.76

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK) (FOR FR.)

91262-MA0-015

$9.95
