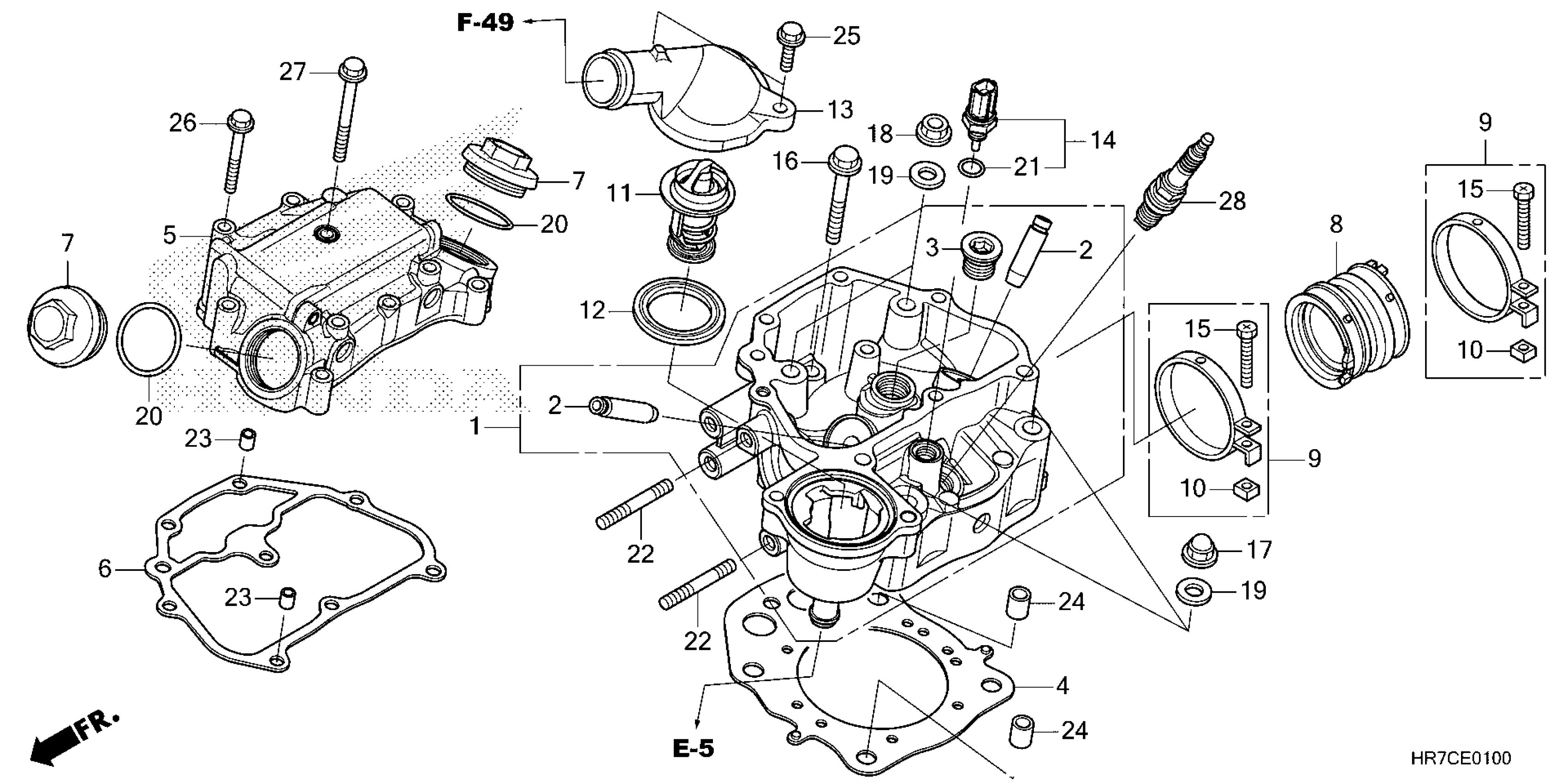

Honda TRX420FA6AC (26) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE475-TJ200001 TO 1HFTE475-TJ299999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-HP7-A01

$595.81

2

GUIDE, VALVE (OVER SIZE)

12204-HP7-305

$32.54

3

BOLT, SEALING (18MM) (Honda Code 2156917)

12206-ML8-300

$8.82

3

BOLT, SEALING (18MM) This part replaces 12206-371-300.

12206-ML8-300

$8.82

3

BOLT, SEALING (18MM) This part replaces 12206-371-305.

12206-ML8-300

$8.82

3

BOLT, SEALING (18MM) This part replaces 12206-611-300.

12206-ML8-300

$8.82

4

GASKET, CYLINDER HEAD

12251-HP7-A01

$23.18

5

COVER, CYLINDER HEAD

12310-HP5-L10

$306.18

6

GASKET, HEAD COVER

12315-HR0-F01

$17.91

7

CAP, TAPPET ADJUSTING HOLE

12361-HP5-600

$16.99

8

INSULATOR, THROTTLE BODY

16211-HR3-A40

$12.98

9

BAND, INSULATOR

16217-MEG-000

$3.90

10

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$1.99

11

THERMOSTAT ASSY.

19300-HN8-013

$49.50

12

RUBBER, THERMOSTAT

19305-KV3-010

$5.80

13

COVER, THERMOSTAT

19321-HP5-L10

$244.19

14

SENSOR ASSY., WATER TEMPERATURE

37870-KZR-601

$8.17

15

BOLT, RECESSED (5X32)

90005-MM4-000

$0.99

16

BOLT, FLANGE (8X55)

90009-HR3-HA0

$1.91

17

NUT, FLANGE CAP (10MM)

90201-HA0-000

$6.15

18

NUT, FLANGE (10MM)

90204-K87-A30

$1.13

19

WASHER (10MM)

90465-MM9-000

$3.38

20

O-RING (35.5X3) (NOK)

91301-428-003

$2.04

21

O-RING (9.5X1.9) (PANASONIC)

91307-PLC-004

$2.96

22

BOLT, STUD (8X25)

92900-08025-0B

$2.59

23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62

24

PIN A, DOWEL (12X16)

94301-12160

$2.80

25

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.63

26

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.59

27

BOLT, FLANGE (6X65) (Honda Code 2552545)

95701-06065-00

$1.40

28

SPARK PLUG (BKR5E-11) (NGK)

98079-5514E

$2.80
