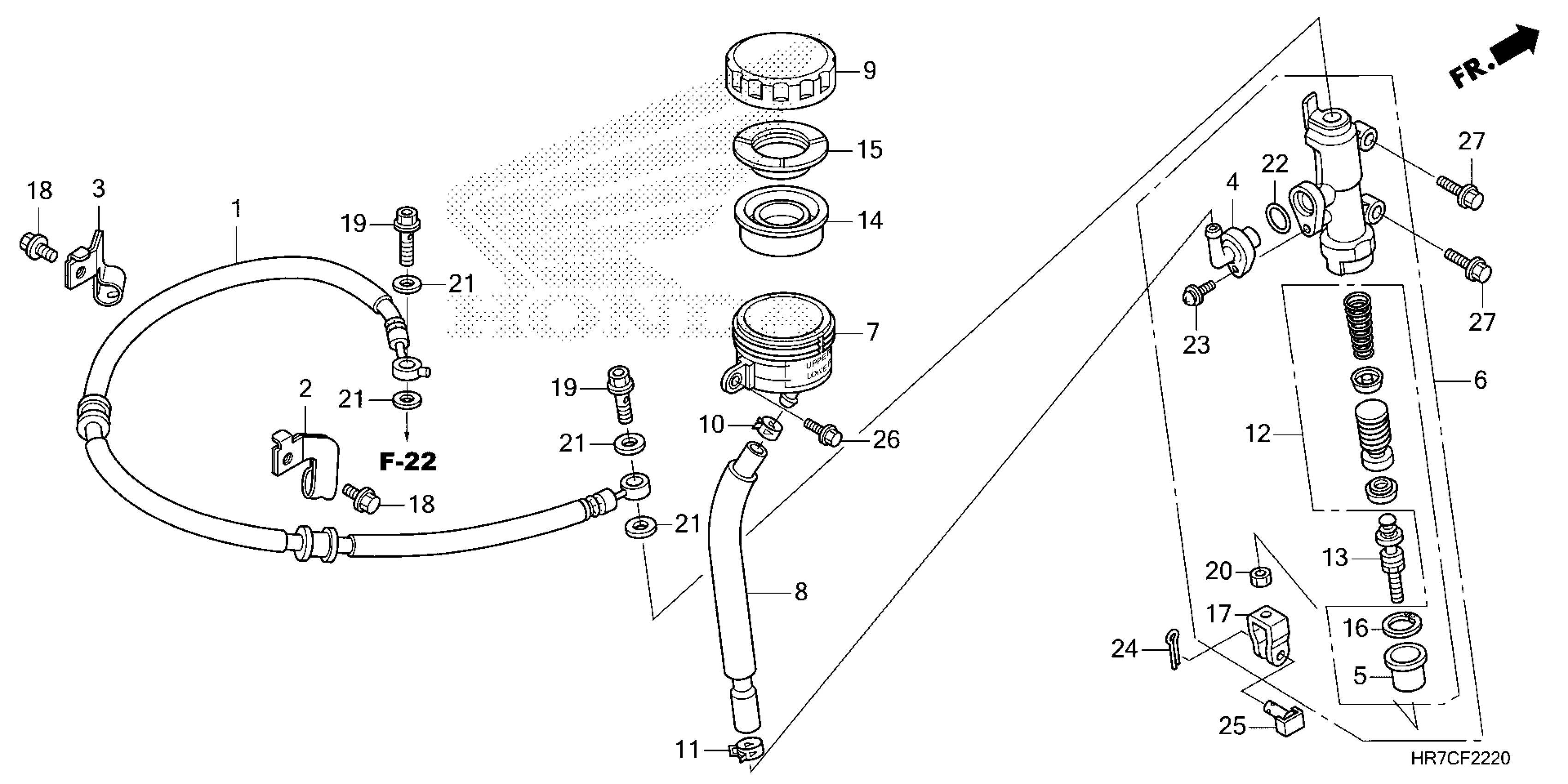

Honda TRX420FA6A (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE472-SJ100001 TO 1HFTE472-SJ199999 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE

43310-HR6-A61

$24.77

CLAMP, R. BRAKE HOSE

43462-HR6-A60

$2.05

CLAMP, L. BRAKE HOSE

43464-HR6-A60

$2.05

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$12.02

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) This part replaces 43510-HN8-016.

43510-HN8-305

$111.83

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO)

43510-HN8-305

$111.83

CUP, OIL

43511-HR6-B01

$4.20

HOSE, RR. BRAKE MASTER CYLINDER

43512-HR6-A61

$4.74

CAP, OIL CUP

43513-MY1-006

$29.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.40

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-315

$60.11

ROD, PUSH

43530-MM5-006

$27.69

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

CIRCLIP

46182-MEL-D21

$1.93

JOINT, BRAKE ROD

46504-HN8-006

$5.52

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.49

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, SPECIAL (8MM)

90315-MAT-006

$1.49

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.49

PIN D, JOINT

95015-54000

$4.24

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55
