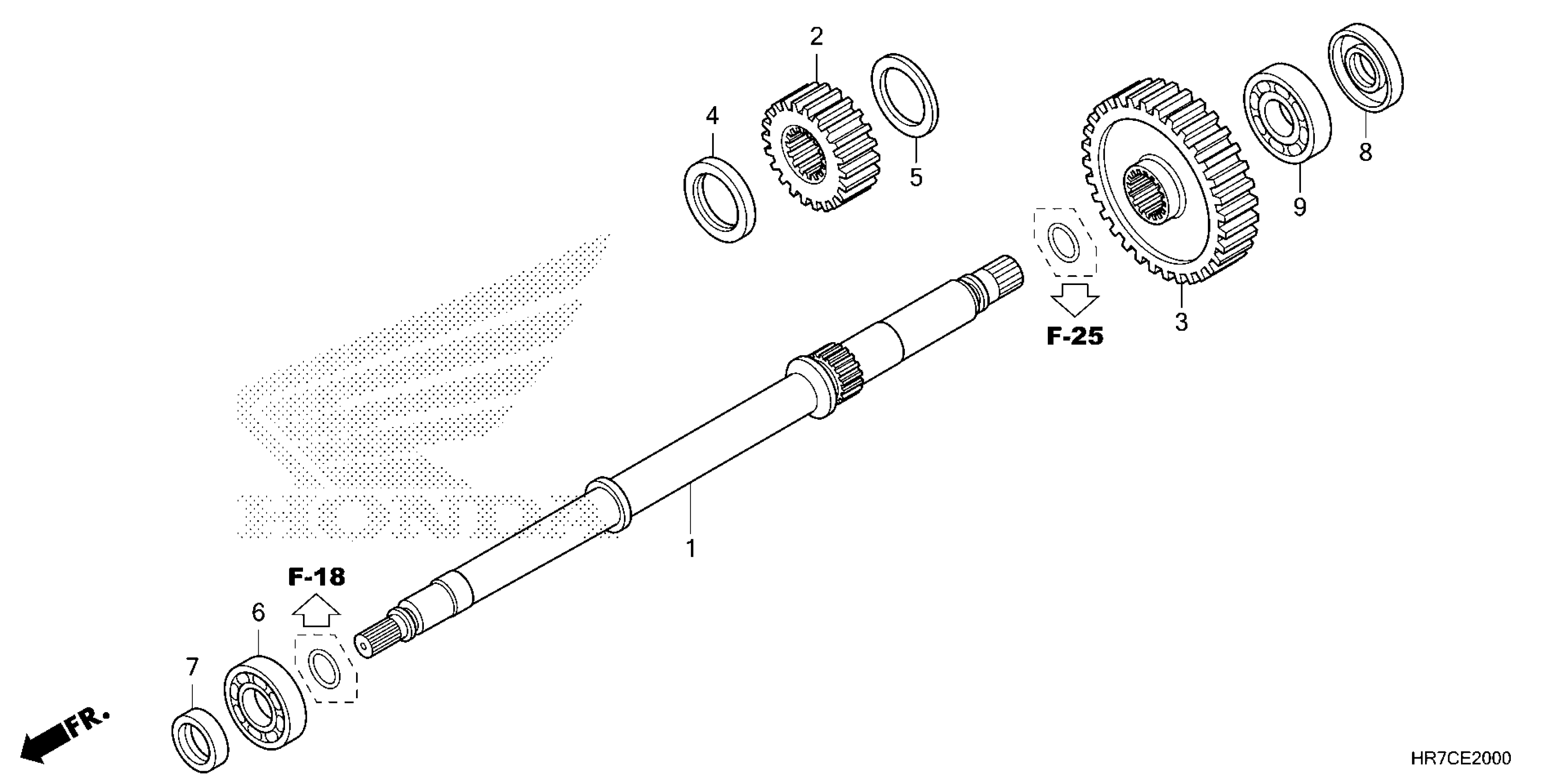

Honda TRX420FA64AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE475-RJ000001 TO 1HFTE475-RJ099999 FINAL SHAFT Diagram

SHAFT, FINAL

23611-HR7-A80

$89.49

GEAR, FINAL DRIVE (25T)

23621-HP7-A00

$34.43

GEAR, FINAL DRIVEN (37T)

23631-HP7-A00

$51.71

COLLAR, DISTANCE (25MM)

75146-750-000

$6.34

WASHER C, THRUST (25MM)

90459-357-000

$3.44

BEARING, RADIAL BALL (22X47X14)

91006-HP5-601

$10.87

OIL SEAL (22X35X7)

91202-HR0-F01

$7.79

OIL SEAL (25X45X7)

91204-HR0-F01

$2.80

BEARING, RADIAL BALL (6205)

96100-62050-00

$16.04
