Description

Price

1

PAD SET, RR.

06435-HN8-016

$37.07

2

SEAL SET, PISTON

06451-HN8-006

$11.93

3

CALIPER SUB-ASSY., RR. (MSDS)

43150-HL3-A01

$110.48

4

BRACKET, RR.

43210-HN8-006

$58.88

5

RETAINER, BRACKET

43211-HN8-006

$6.75

6

PISTON ASSY.

43215-SH3-931

$151.71

7

CUP

43218-T5B-003

$4.75

8

BEARING A

43223-SD2-932

$21.45

9

SPRING B, ADJUSTING

43224-SD2-931

$5.48

10

ROD

43229-SD2-931

$11.82

11

O-RING

43232-SD2-931

$3.32

11

O-RING (NISSIN)

43232-TA0-A01

$0.98

12

PISTON, SLEEVE

43233-TR0-A01

$29.52

13

COVER, DUST

43234-S04-003

$6.80

14

PIN A

43235-S84-A51

$9.74

15

SPACER

43236-S04-003

$8.72

16

RING, RETAINING

43238-SD2-931

$10.52

17

BOLT, FLANGE (8X26)

43240-S6M-J51

$5.92

18

GUIDE, SPRING

43241-SD2-931

$10.38

19

COVER, SHAFT

43242-SD2-933

$12.06

20

NUT, PARKING

43243-SD2-931

$10.85

21

LEVER, BRAKE LOCK

43245-HN8-006

$9.62

22

SPRING, ARM RETURN

43246-HN8-006

$3.48

23

SHAFT B (L. SIDE)

43248-SD2-933

$42.05

24

BOLT, ADJUSTER

43249-S04-003

$23.97

25

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

26

CAP, BLEEDER

43353-461-771

Unavailable

27

NUT, BRAKE ADJUSTING

43459-HB2-000

$10.18

28

SPRING, PAD

45108-HN8-006

$6.41

29

SLEEVE, BOOT

45233-HN8-305

$6.48

29

SLEEVE, BOOT This part replaces 45233-S3Y-003.

45233-HN8-305

$6.48

30

SLEEVE

45235-S3Y-003

$17.22

31

BOLT, FLANGE (8X74)

45241-S3Y-003

$9.09

32

BOLT, FLANGE (8X40)

90131-MS6-900

$3.89

33

WASHER, SPRING (10MM)

94111-10800

$1.12

34

JOINT B, BRAKE ARM

95015-32001

$0.91

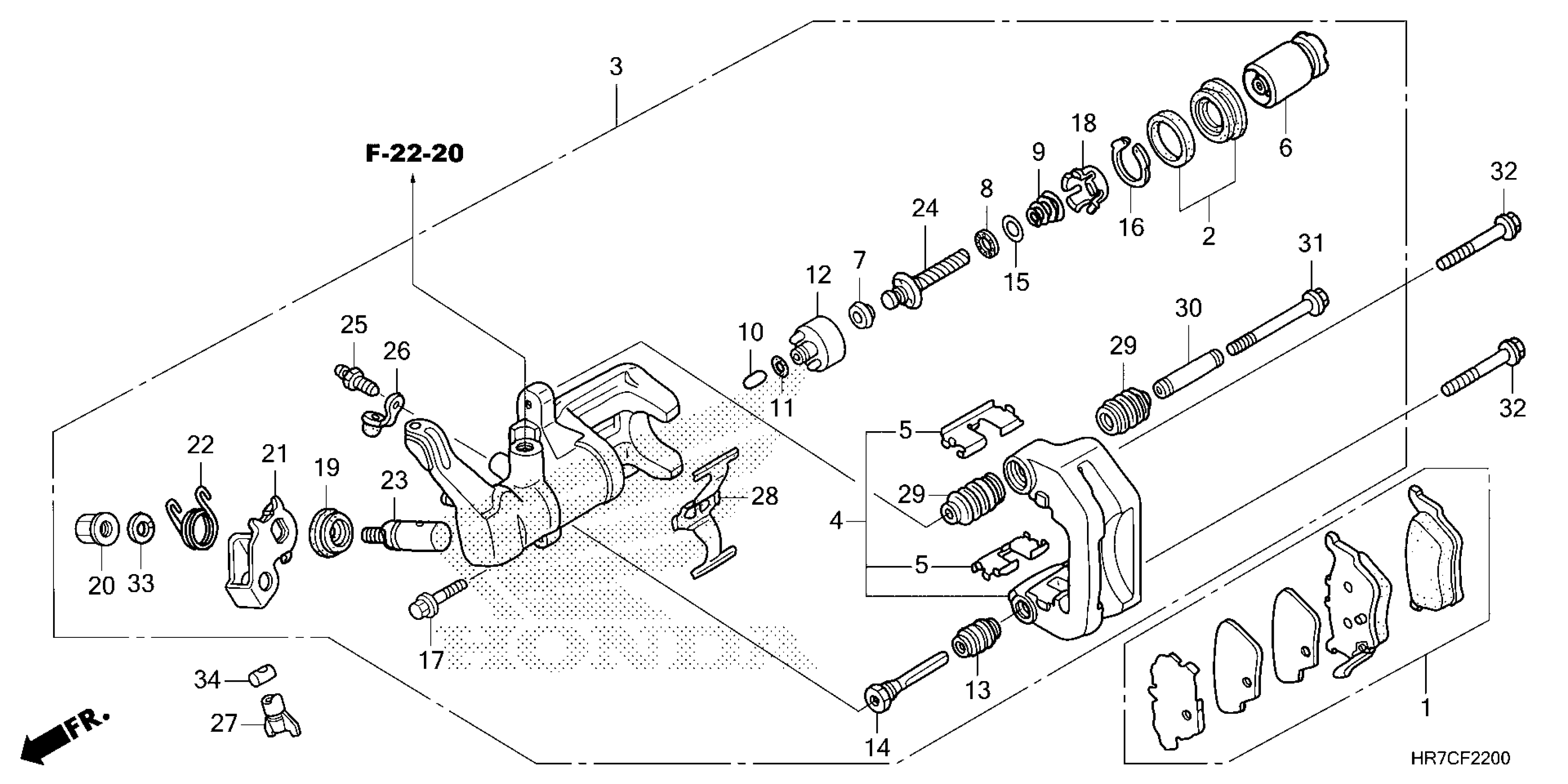

Honda TRX420FA64A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE472-RJ000001 TO 1HFTE472-RJ099999 REAR BRAKE CALIPER Diagram
