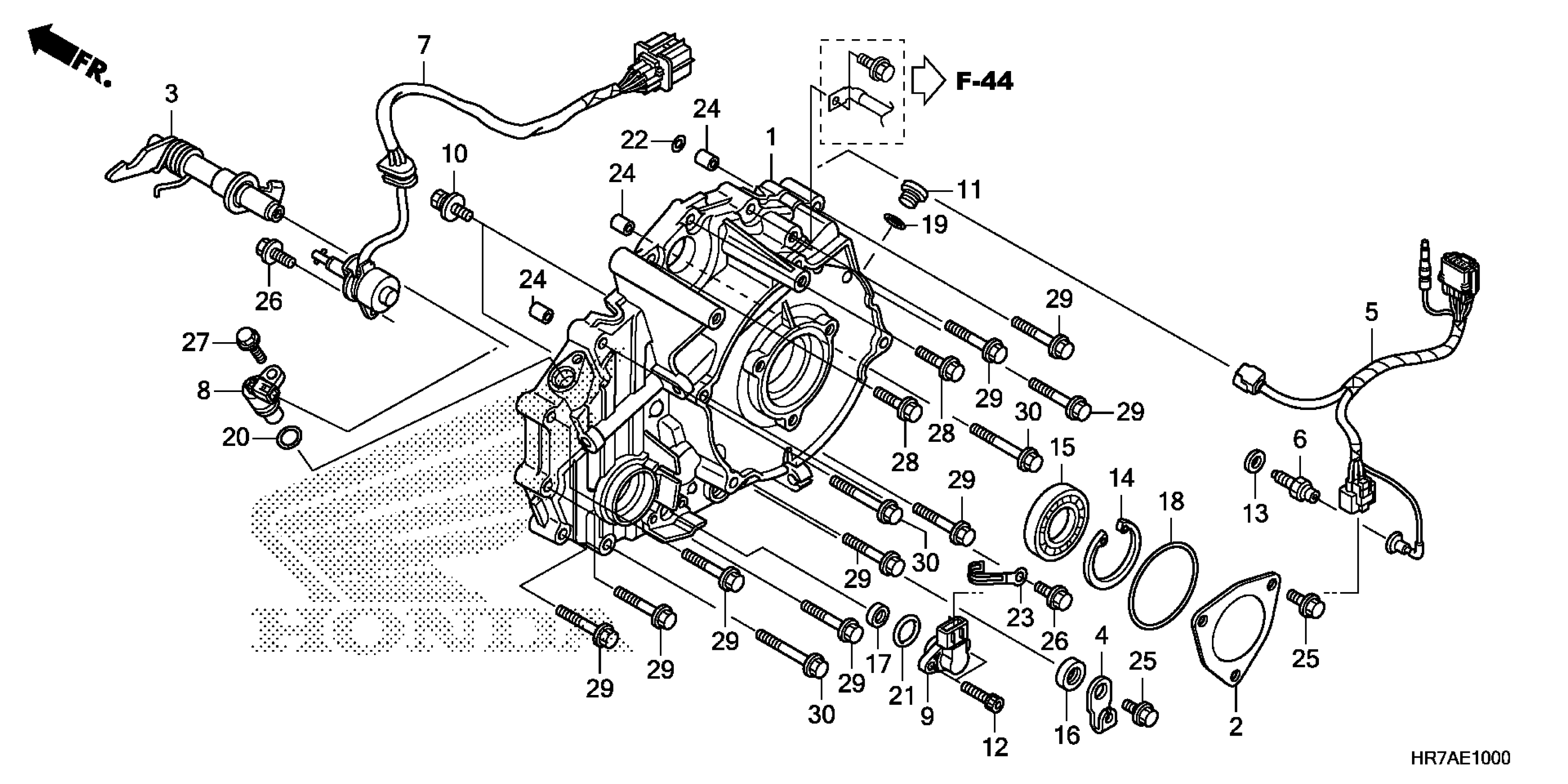

Honda TRX420FA62AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE53C-K4400001 TO 1HFTE53C-K4499999 REAR CRANKCASE COVER (1) Diagram

COVER, RR. CRANKCASE

11340-HR3-A60

$236.28

CAP, RR. COVER

11342-HP5-600

$3.06

SHAFT, REVERSE STOPPER

24860-HP7-A00

$42.51

LEVER, REVERSE STOPPER

24865-HP5-600

$4.76

SUB-HARNESS, ENGINE

32101-HR3-A60

$95.05

SWITCH ASSY., NEUTRAL

35600-HN7-003

$19.61

SWITCH ASSY., DRUM POSITION

35759-HR3-A61

$70.40

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$45.37

SENSOR ASSY., ANGLE

38800-HR3-A21

$27.06

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

CAP (14MM)

90084-KY2-000

$15.97

BOLT, SOCKET (5X20)

90116-HP5-600

$3.10

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (42MM)

90602-GFZ-000

$3.67

BEARING, RADIAL BALL (6806)

91015-HR0-F21

$17.55

OIL SEAL (12X22X5)

91201-965-000

$4.06

OIL SEAL (8X16X6) This part replaces 91208-689-005.

91254-792-003

$2.92

O-RING (58X3)

91301-HR3-A40

$2.39

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.18

CLIP (2X70)

91413-679-000

$9.23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.06
