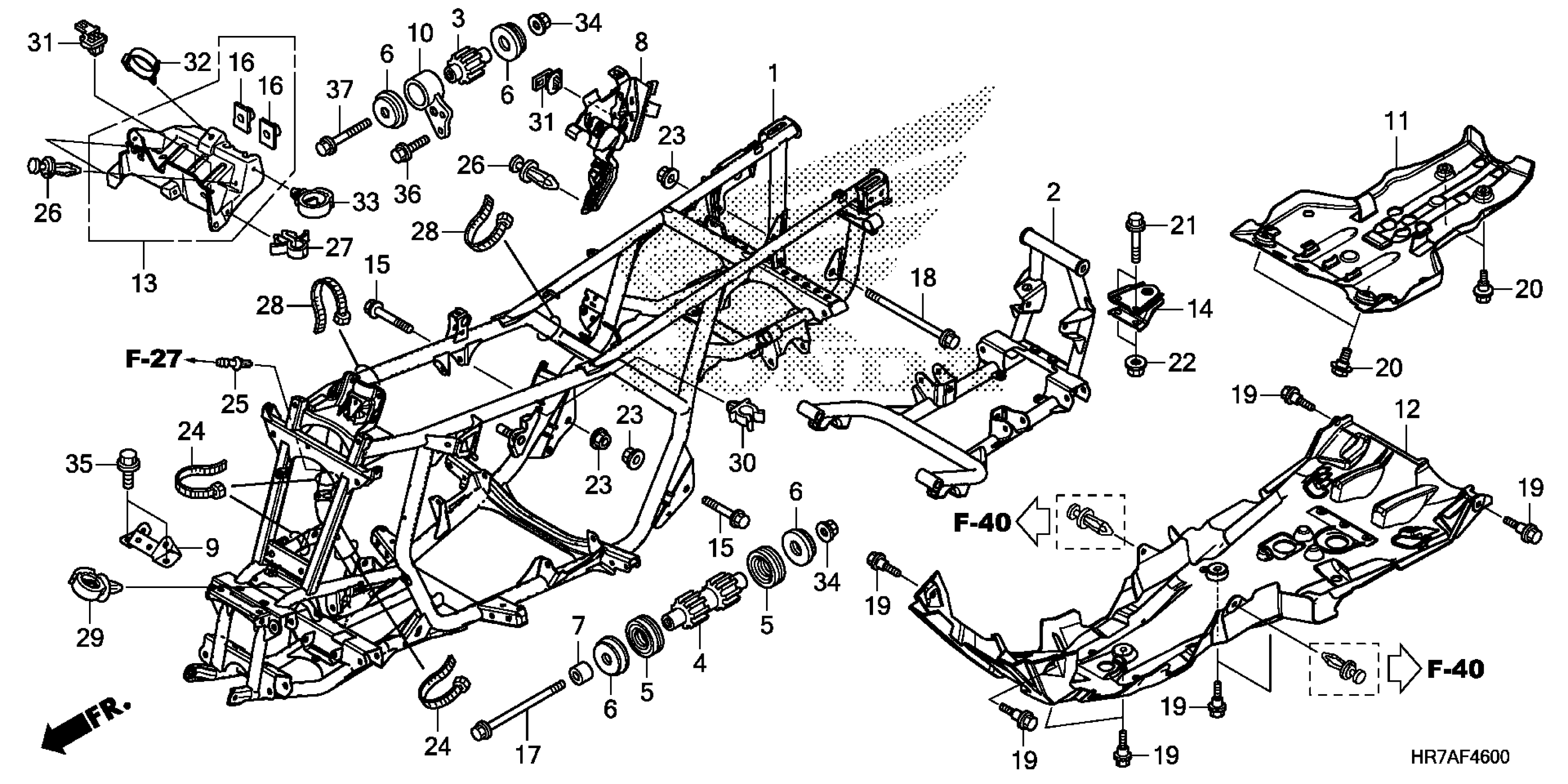

Honda TRX420FA62AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE53C-K4400001 TO 1HFTE53C-K4499999 FRAME Diagram

FRAME

50100-HR6-A60

$822.94

FRAME, RR. (LOWER)

50200-HR6-A60

$811.03

RUBBER, ENGINE HEAD MOUNTING

50201-HP5-600

$9.76

RUBBER, ENGINE MOUNTING (LOWER)

50202-HP0-A50

$25.21

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$20.39

RUBBER C, MOUNTING

50204-HP5-600

$6.81

COLLAR, ENGINE HANGER

50205-HM8-000

$8.16

STAY, CONNECTOR (SIDE)

50340-HR6-A60

$8.18

BRACKET, FR. GEAR CASE

50350-HR3-A20

$7.18

BRACKET, HEAD HANGER

50351-HP5-600

$10.40

SKID, RR. GEAR CASE

50355-HR6-A60

$11.36

GUARD, ENGINE *NH1* (BLACK)

50360-HR3-A20ZA

$48.43

STAY, CONNECTOR (FR)

50370-HR3-A20

$9.52

HITCH, TRAILER

50810-HN8-000

$68.00

BOLT, SWINGARM PIVOT (12X70)

52101-HR3-A20

$1.92

NUT, SPECIAL (6X7)

61304-958-003

$3.24

BOLT, ENGINE HANGER (10X148)

90103-147-000

$12.74

BOLT, FLANGE (12X193)

90106-MEJ-000

$17.31

BOLT, FLANGE (6MM)

90111-147-000

$2.75

BOLT, FLANGE (6MM)

90111-187-000

$5.59

BOLT, FLANGE (10X55) BOLT, FLANGE (10X50)

90120-HC4-000

$6.46

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

NUT, FLANGE (12MM)

90306-181-761

$6.08

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

JOINT, BREATHER TUBE

90652-HF7-003

$9.52

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP, WIRE HARNESS (6MM) (WHITE)

90654-SA4-003

$1.49

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.73

CLIP, WIRE HARNESS

90684-ZA0-601

$2.93

CLIP, TUBE (3.5)

91531-SZ5-003

$4.41

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.44

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

$7.56

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X22)

95701-08022-00

$2.16

BOLT, FLANGE (10X60)

95701-10060-00

$2.03
