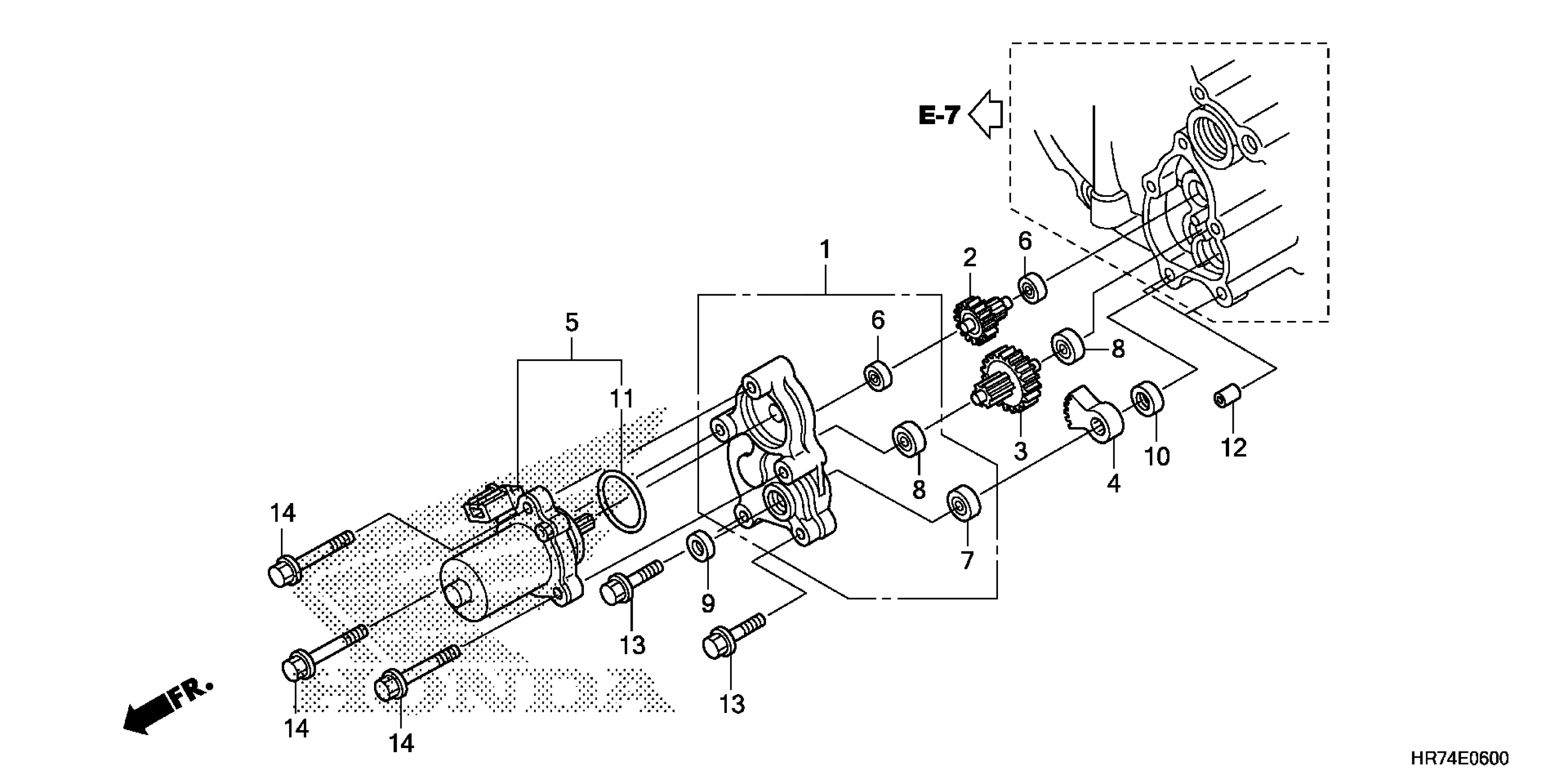

Honda TRX420FA62AC (17) TRX420FA6, USA, VIN# 1HFTE474-H4200001 TO 1HFTE474-H4299999 CONTROL MOTOR Diagram

#

Description

Price

1

COVER, REDUCTION GEAR

11335-HP7-A00

$54.80

2

GEAR, SHIFT REDUCTION (41T/7T)

24615-HP7-A01

Unavailable

3

GEAR (32T/10T) This part replaces 24616-HP7-A01.

24616-HR6-MF0

$68.00

4

GEAR, SHIFT REDUCTION (45T)

24617-HP7-A01

Unavailable

5

MOTOR ASSY., CONTROL This part replaces 31300-HP5-601.

31300-HP5-602

$257.34

6

BEARING, RADIAL BALL (696ZZ)

91050-HN0-A11

$10.62

7

BEARING, RADIAL BALL (699ZZ)

91050-HN7-003

$7.63

8

BEARING, RADIAL BALL (626ZZ)

91060-HN0-A11

$10.91

9

OIL SEAL (9X18X7) (ARAI)

91201-PA9-004

$7.36

10

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.47

11

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.81

12

PIN, DOWEL (8X14)

94301-08140

$2.25

13

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

14

BOLT, FLANGE (6X50)

95701-06050-00

$2.06
